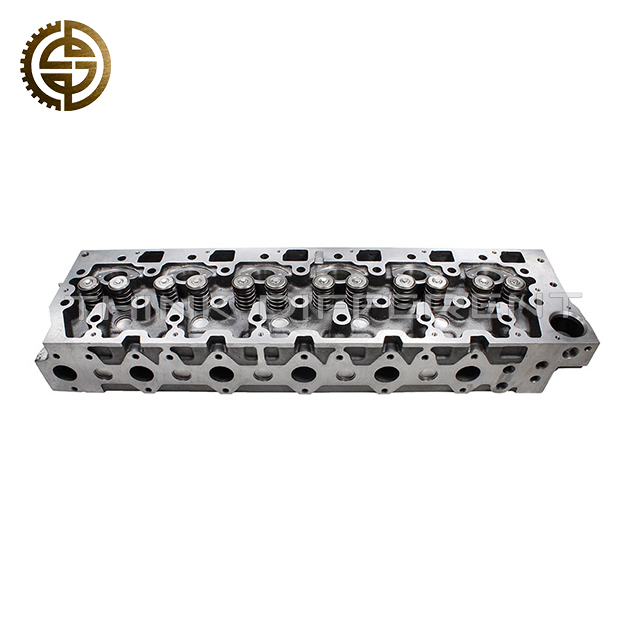

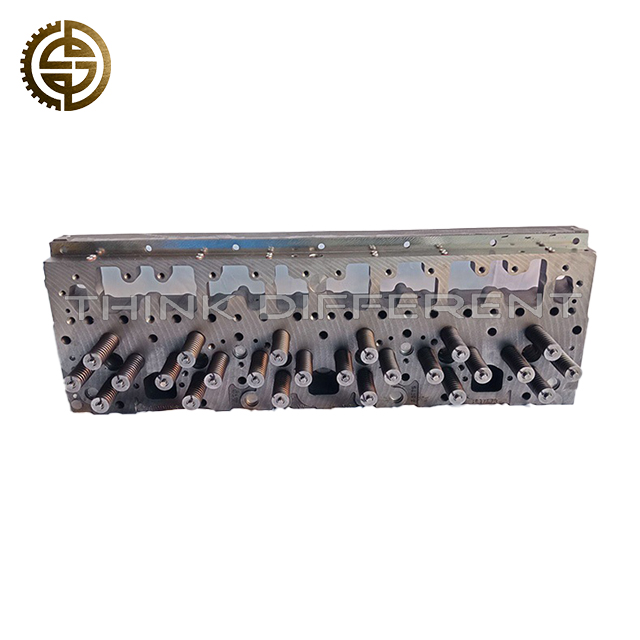

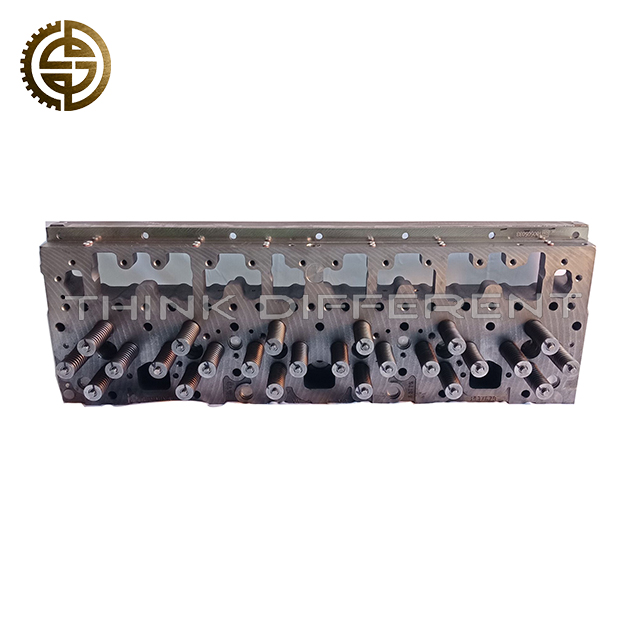

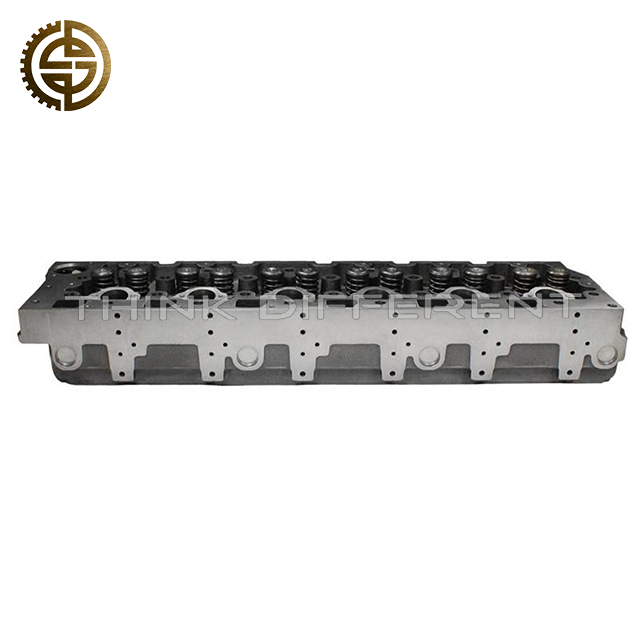

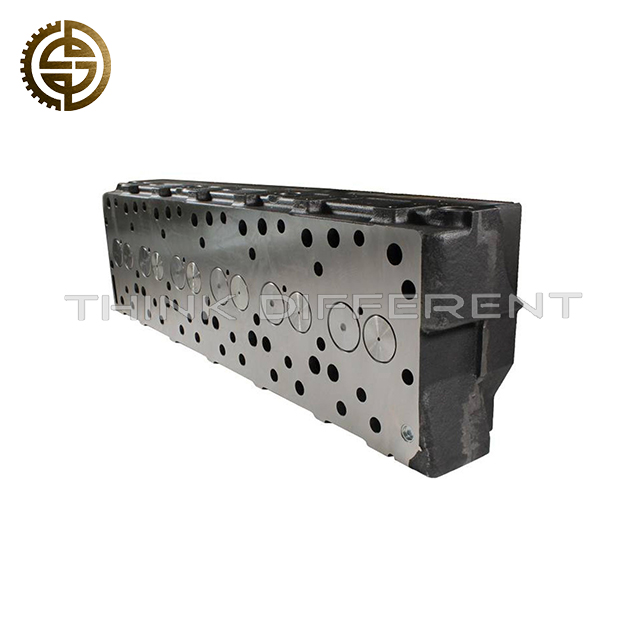

2864028 Cylinder Head Fits Cummins Engine Top Assembly Replacement Spare Part

Product Overview

2864028X Cylinder Head (HEAD,CYLINDER) is one of the most critical assemblies of Cummins series diesel engines. Installed on top of cylinder block, it forms sealed combustion space together with piston and cylinder liner. It integrates intake & exhaust passages, cooling water channels, valve mounting seats and injector installation holes to realize air intake, exhaust and fuel injection.

This cylinder head solves major engine failures such as air leakage, water channel crack, oil channel seepage, insufficient power and white smoke caused by deformation, cracking and plane warping of old cylinder heads, which is essential for engine major overhaul.

Core Product Advantages

1. High-Strength Alloy Cast Integral Structure

   Special high tensile cast alloy casting, excellent thermal fatigue resistance, withstand alternating high temperature and pressure inside combustion chamber, resist crack and deformation.

2. Precision Machined Sealing Surface

   Strict flatness control on bottom mating surface, guarantee tight fit with cylinder gasket, effectively prevent gas leakage, coolant leakage and engine oil seepage.

3. Optimized Water & Oil Passage Layout

   Smooth internal cooling water galleries and lubricating oil passages, uniform heat dissipation, avoid local overheating, reduce thermal stress and prevent cylinder head cracking.

4. Precision Valve Seat & Injector Hole Machining

   Accurate valve seat bore and injector mounting holes, ensure stable valve sealing and normal fuel injection performance, maintain good combustion efficiency.

5. Wide Temperature Alternation Adaptability

   Stable structural performance under frequent cold and hot cycles, suitable for long-time heavy-load continuous operation of diesel engines.

6. Standard Matching Installation Specification

   Dimension 108cm41cm37cm, weight 115KG, perfectly match supporting Cummins engine cylinder block, direct overhaul replacement without large-scale machining.

7. Strict Multi-Process Factory Inspection

   All cylinder heads pass hydraulic pressure leakage test, flatness inspection, flaw detection and dimensional verification, stable batch quality for engine overhaul factories and large fleets bulk procurement.

Basic Product Parameters

• Part Number: 2864028X

• English Name: HEAD, CYLINDER

• Product Name: Cylinder Head / Engine Cylinder Head Assembly

• Applicable Engine: Cummins Series Diesel Engines

• Overall Dimension: 108cm 41cm 37cm

• Product Weight: 115KG

• Main Material: High tensile alloy cast iron

• Working Temperature: Large range alternating high and low temperature inside combustion chamber

• Core Function: Form sealed combustion chamber, install valves, fuel injectors; arrange air flue, cooling water and lubricating oil passages

• Key Features: Anti-crack, thermal fatigue resistant, precise flatness, leak-proof, stable heat dissipation, accurate hole position

• Installation Position: Top of engine cylinder block

• Package: Export wooden case with fixed support and shockproof protection, prevent sealing surface collision scratch and body deformation during long-distance transportation

Application Scenarios

Suitable for heavy-duty trucks, construction machinery, mining vehicles and large diesel generator sets equipped with Cummins diesel engines. Adapt to mountain full-load climbing, long-distance transportation and continuous high-load working conditions. After replacement, recover engine power, eliminate coolant leakage, gas blow-by and abnormal exhaust smoke faults.

Purchase Reminder

Please confirm part number 2864028X and Cummins engine model before ordering to ensure accurate compatibility. We support global bulk wholesale for auto parts distributors, engine overhaul workshops and transport fleets with sufficient stock and competitive prices. Cylinder head bolt torque and gasket installation guidance are provided after sales.
