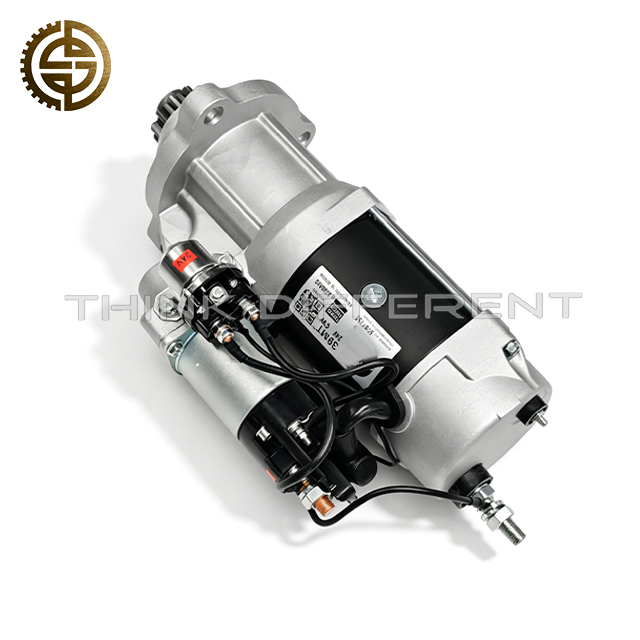

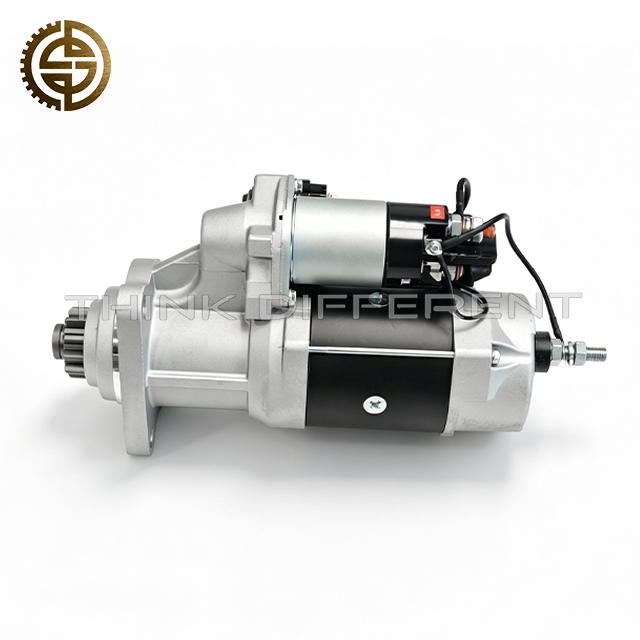

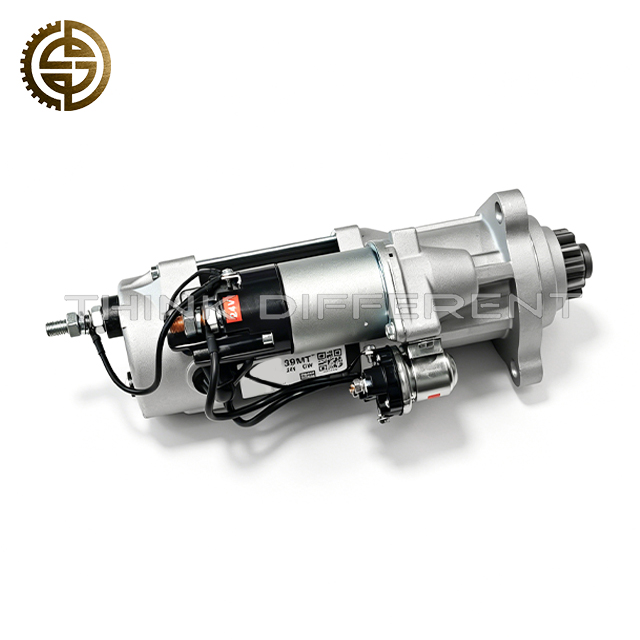

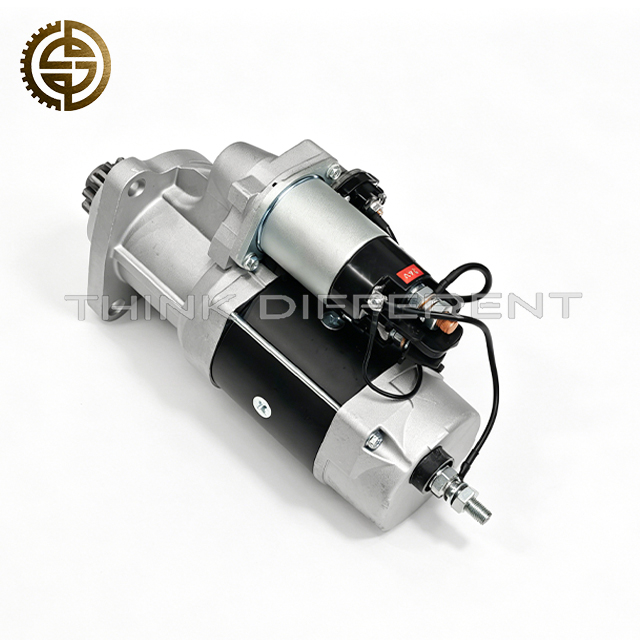

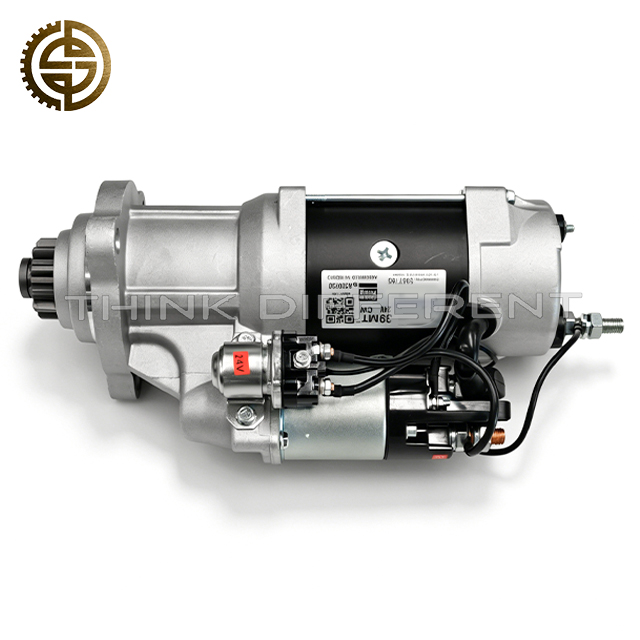

5367755 24V 11T Starter Motor Compatible With Cummins QSM11 ISM11 Heavy Duty Truck

Product Overview​

The 5367755 starter motor is a high-performance power start component tailored for Cummins QSM11 and ISM11 heavy-duty diesel engines, widely used in commercial trucks, construction machinery and logistics tractors. With 24V operating voltage and 11-tooth pinion design, it precisely matches the engine flywheel to realize efficient energy conversion—converting battery electrical energy into mechanical energy to drive engine startup quickly. This starter solves common faults such as difficult cold start, weak ignition and startup failure caused by aging components, providing stable power support for long-distance transportation and harsh working conditions.​

Core Product Advantages​

1. Perfect Compatibility: Exclusively engineered for Cummins QSM11/ISM11 engine series, also interchangeable with part numbers 5284084, 2871253 for multi-model adaptation .​

2. Strong Power Output: 24V voltage with gear reduction technology, peak output torque up to 4.0KW, ensuring quick ignition even under full-load or low-temperature environments .​

3. Durable Construction: High-purity copper windings and wear-resistant alloy gear, passed 50,000-cycle durability test, service life 30% longer than industry average .​

4. Extreme Environment Adaptability: Operates stably in -30℃~+120℃ temperature range, IP67 waterproof and dustproof rating, suitable for mountain roads, construction sites and cold plateaus .​

5. Low Noise & Smooth Operation: Precision dynamic balance treatment, operating noise as low as 65dB, reducing vibration and improving driving comfort .​

6. Plug-and-Play Installation: Standard mounting dimensions and SAE #1 installation interface, no modification required, completing replacement in 30 minutes .​

7. Comprehensive Protection: Built-in overcurrent, overheat and short-circuit protection mechanisms, effectively preventing motor burnout and ensuring vehicle electrical system safety .​

Basic Product Parameters​

• Part Number: 5367755​

• Product Name: Starter Motor (Gear Reduction Type)​

• Operating Voltage: 24V DC​

• Pinion Specification: 11 Tooth (11T)​

• Applicable Engine: Cummins QSM11, ISM11 diesel engines​

• Interchangeable Part Numbers: 5284084, 2871253, 3103916​

• Peak Output Power: 4.0KW​

• Rotation Direction: Clockwise (CW)​

• Installation Standard: SAE #1 Mounting​

• Net Weight: 8.0KG​

• Protection Grade: IP67​

• Operating Temperature: -30℃ ~ +120℃​

• Package: Neutral export carton, shockproof foam inner packaging​

Application Scenarios​

Ideal replacement starter for Cummins-equipped heavy-duty trucks, logistics tractors, dump trucks, engineering machinery and generator sets. Widely used in long-distance logistics transportation, construction site operations, mountain road haulage and high-altitude working environments. It ensures reliable startup performance under extreme conditions such as cold winters, high-temperature summers and full-load climbing.​

Purchase Reminder​

Please confirm your engine model (QSM11/ISM11) and verify the pinion tooth count (11T) and voltage (24V) before ordering to ensure perfect matching. We support bulk wholesale orders for global auto parts distributors and fleet maintenance centers, with sufficient stock and competitive bulk pricing. All products come with a 6-month warranty and professional technical support—contact our customer service team for installation guidance or compatibility inquiries.
