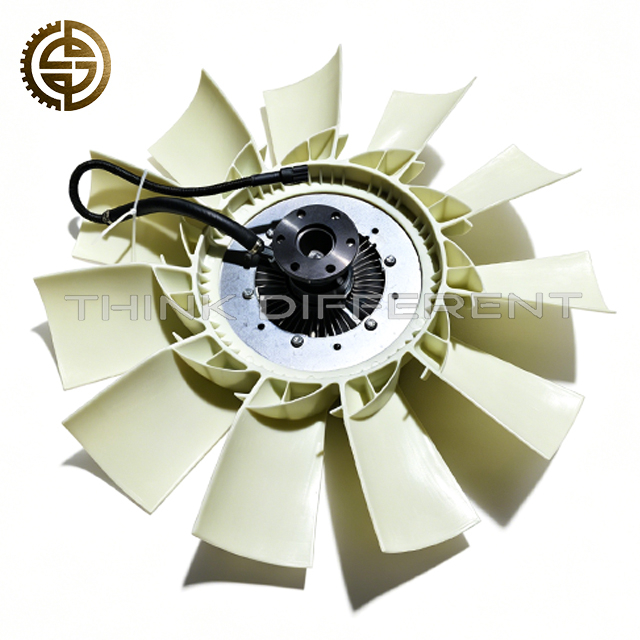

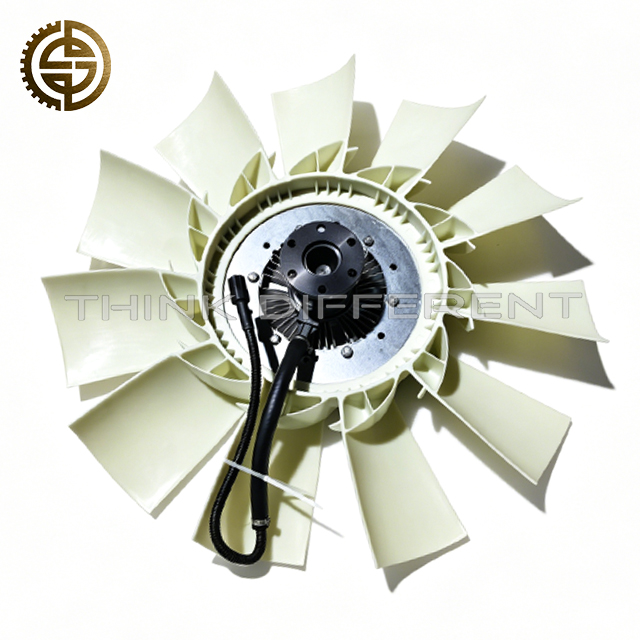

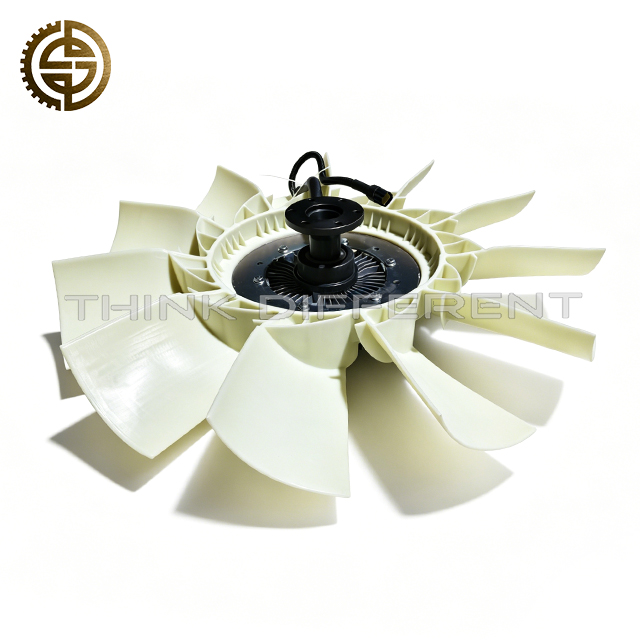

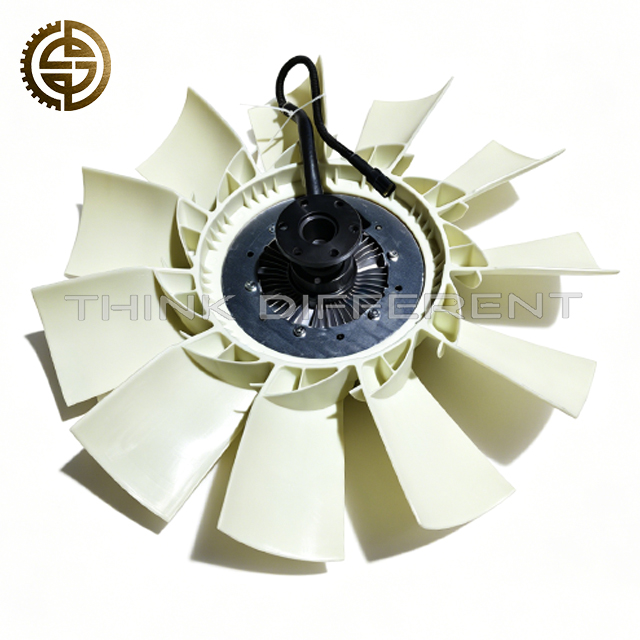

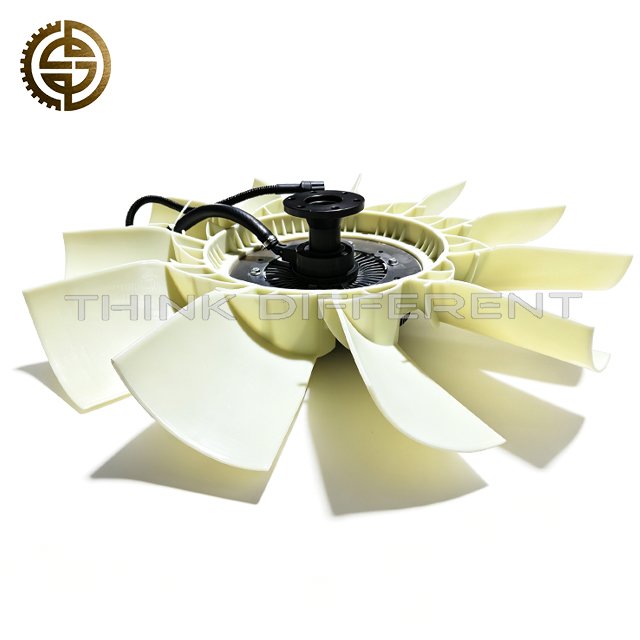

H0100030007A0 Electronic Controlled Silicone Oil Fan Clutch Cooling System Parts For Foton Auman Heavy Truck

Product Overview

This H0100030007A0 electronically controlled silicone oil fan clutch is an intelligent thermal management core part matched for Foton Auman series heavy-duty trucks. Different from traditional mechanical fan clutches, it receives real-time temperature signals from engine ECU to accurately adjust the amount of silicone oil inside the cavity, so as to control fan rotation speed steplessly. It balances engine operating temperature in real time, solves common failures such as engine overheating, excessive idle noise and increased fuel consumption caused by aging cooling components, widely used in Foton Auman logistics tractors, cargo trucks and long-distance haulage vehicles.

Core Product Advantages

1. ECU electronic signal precise control, faster response speed than mechanical bimetallic structures, accurate speed adjustment under variable load and climbing conditions to maintain constant engine temperature.

2. Fully sealed multi-layer oil-resistant sealing ring structure, effectively prevent silicone oil leakage, stable long-term operation under high temperature engine compartment environment.

3. Significant energy-saving effect: The fan runs at low speed when the engine is cold to shorten warm-up time; only full speed operation under high load, effectively cut down engine extra power loss and lower overall fuel consumption.

4. Low noise and smooth operation: Stepless speed switching avoids strong airflow impact noise, greatly improves driving comfort during highway cruising and long-distance transportation.

5. Thickened die-cast aluminum alloy shell with heat dissipation ribs, excellent heat dissipation performance, avoid clutch overheating and silicone oil failure after continuous high-load work.

6. Standard mounting hole position and wiring plug interface, perfectly match Foton Auman engine cooling assembly, plug-and-play installation without wiring modification or bracket cutting.

7. Strict high-temperature aging, sealing and speed regulation cycle tests before delivery, stable batch quality for repair shop replacement and fleet bulk procurement.

Basic Product Parameters

• Part Number: H0100030007A0

• Product Name: Electronically Controlled Silicone Oil Viscous Fan Clutch Assembly

• Applicable Vehicle: Foton Auman heavy duty commercial trucks

• Control Mode: ECU electronic signal intelligent regulation

• Working Medium: High-purity heat-resistant silicone oil

• Operating Temperature: -35℃ ~ +130℃

• Core Function: Real-time adjustment of cooling fan speed, engine temperature control, fuel saving

• Installation Position: Engine radiator fan assembly

• Package: Neutral shockproof export carton, single independent anti-collision packaging

Application Scenarios

Ideal replacement cooling spare parts for Foton Auman long-distance tractors, heavy cargo trucks, sanitation vehicles and engineering transport vehicles. Adapt to urban frequent start-stop driving, high-speed highway long haulage, mountain full-load climbing and summer high-temperature continuous operation environments, effectively avoid engine overheating faults and reduce vehicle operating costs.

Purchase Reminder

Please confirm your Foton Auman truck model and match part number H0100030007A0 before placing orders to ensure accurate fitting. We support large quantity wholesale for global auto parts dealers and truck maintenance stations with sufficient stock and competitive bulk prices. Our technical team provides remote installation and wiring guidance after purchase.
