H4356F02023A0
FOTON
Product Overview

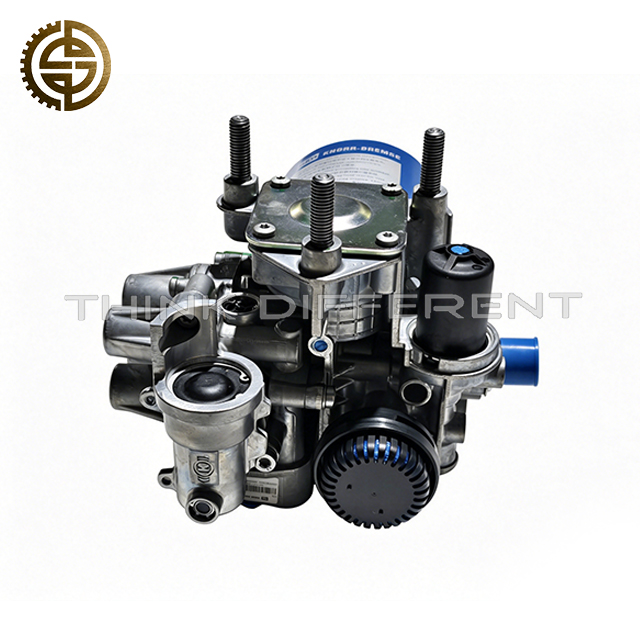

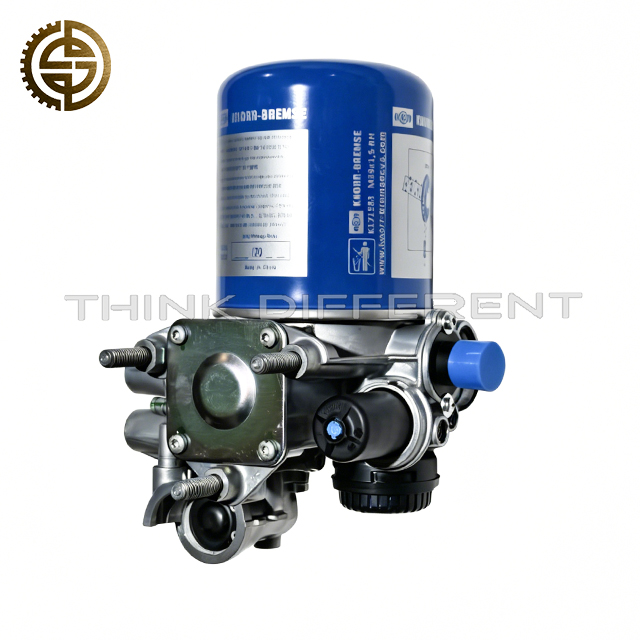

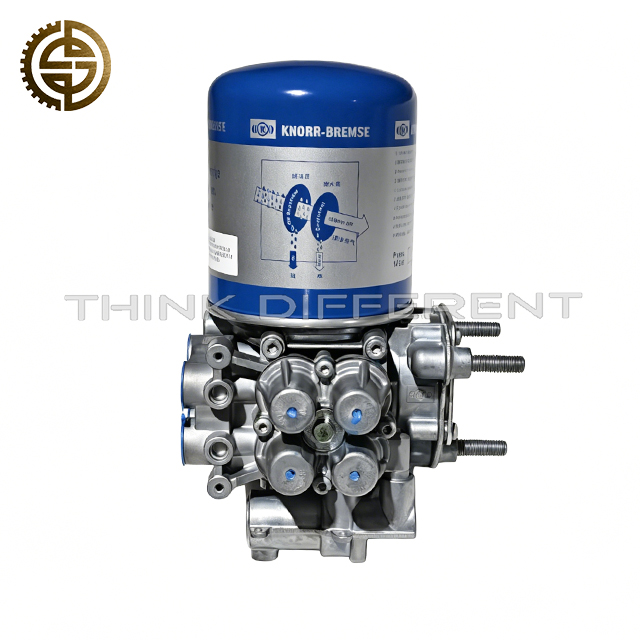

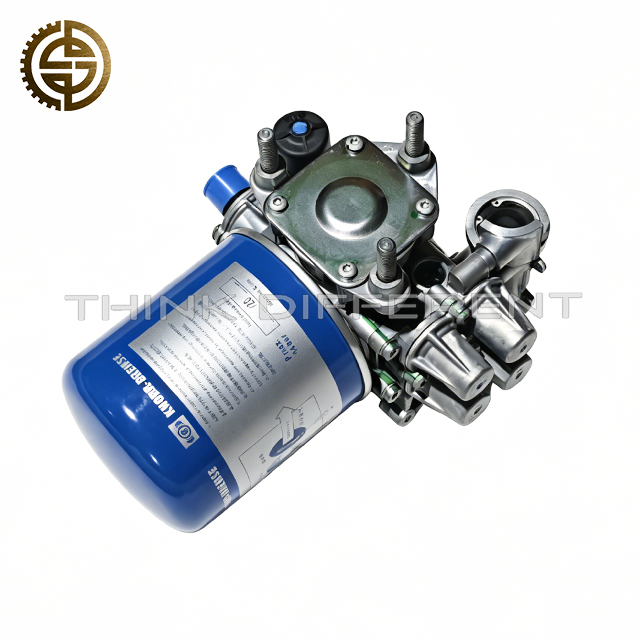

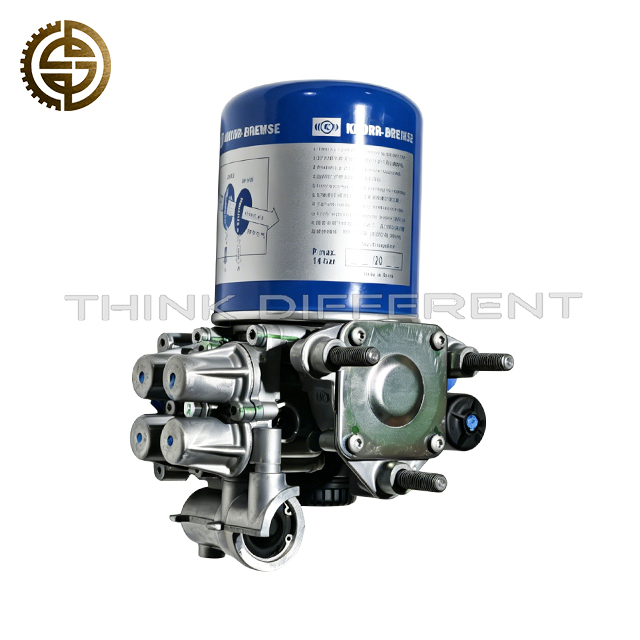

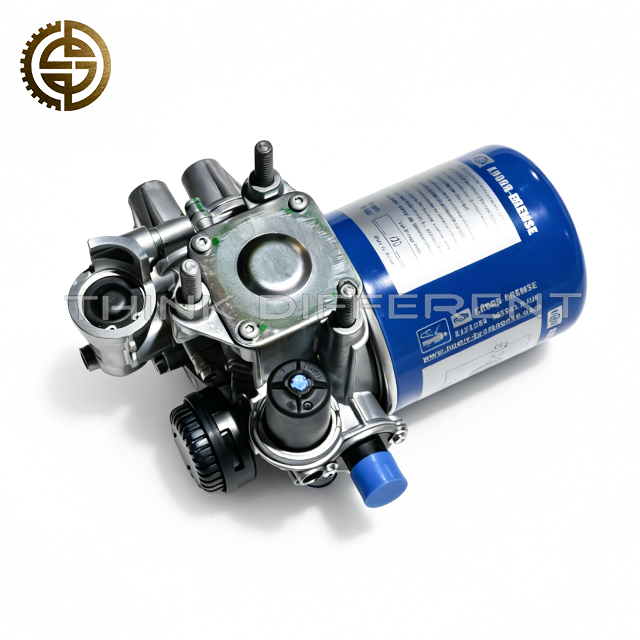

The H4356F02023A0 air dryer is a high-performance compressed air treatment component exclusively designed for Foton heavy-duty trucks and commercial vehicles. As a key part of the vehicle braking system, it integrates moisture dehydration, impurity filtration and oil separation functions, effectively removing water vapor, oil mist and solid particles from compressed air. By reducing the air dew point to -40℃ , it prevents frost blockage in air circuits and corrosion of brake valves, cylinders and pipelines, solving common faults such as weak braking, delayed response and component wear caused by moist air. Widely applicable to Foton cargo trucks, tractors and dump trucks, it ensures reliable operation of the braking system under extreme working conditions.
Core Product Advantages
Superior Dehydration Performance: Filled with high-quality activated alumina adsorbent , featuring large specific surface area and strong water adsorption capacity, achieving 99.9% moisture removal rate and stable -40℃ dew point output, adapting to high-humidity and cold environments.
Multi-Layer Filtration Protection: Integrated precision filter element with 5μm filtration precision , trapping oil mist and solid impurities in compressed air, reducing wear of brake system components and extending their service life by 30%.
Stable Pressure Adaptability: Designed for 10bar working pressure , with maximum pressure resistance up to 15bar, matching Foton truck air compressor output, ensuring sufficient air supply for braking without pressure loss.
Durable Structural Design: High-strength aluminum alloy housing with anti-corrosion coating , resistant to road debris impact, diesel erosion and extreme temperature changes (-40℃~+80℃ operating range).
Intelligent Regeneration System: Automatic pressure-sensitive regeneration function, reducing compressed air consumption by 15% compared to manual regeneration models; equipped with large-capacity dust cup for easy impurity discharge.
Reliable Sealing Performance: Adopts high-temperature resistant silicone seals , with leakage rate ≤0.5% to prevent air leakage and ensure stable system pressure.
Direct Installation Compatibility: Standard mounting dimensions and interface specifications, perfectly matching Foton truck chassis layout, plug-and-play without modification or adapter parts.
Basic Product Parameters
Part Number: H4356F02023A0
Product Name: Truck Air Dryer (Compressed Air Treatment System)
Applicable Vehicle: Foton series heavy duty commercial trucks
Core Material: Activated alumina adsorbent + precision filter media + aluminum alloy housing
Dew Point Performance: Down to -40℃
Working Pressure: 10bar (Maximum 15bar)
Filtration Precision: 5μm (Oil mist & solid particles)
Operating Temperature: -40℃ ~ +80℃
Installation Position: Vehicle chassis air circuit system
Regeneration Mode: Automatic pressure-sensitive regeneration
Package: Neutral export carton, shockproof foam inner packaging with protective film
Application Scenarios
Ideal brake system protection component for Foton logistics tractors, heavy cargo trucks, engineering dump trucks and sanitation vehicles. Suitable for long-distance haulage, mountain road transportation, construction site operations and cold plateau environments. It effectively prevents air circuit freezing, corrosion and blockage, ensuring stable and reliable braking performance in high-humidity, dusty or extreme temperature conditions.
Purchase Reminder
Please confirm your Foton truck model and chassis air system specifications before ordering to ensure perfect matching. We support bulk wholesale for global auto parts distributors and fleet maintenance centers, with sufficient stock and competitive bulk pricing. The product comes with a 12-month warranty; our technical team provides remote installation guidance and compatibility confirmation upon request. For bulk orders, custom packaging and logo services are available.
