16775-1
FAST

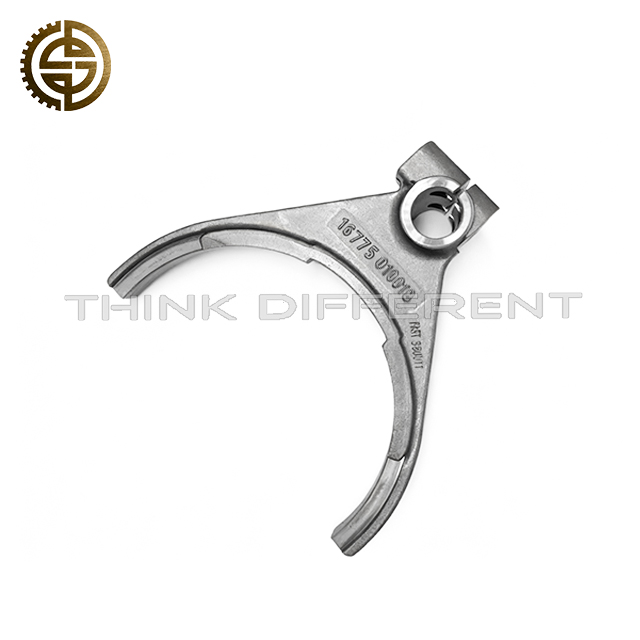

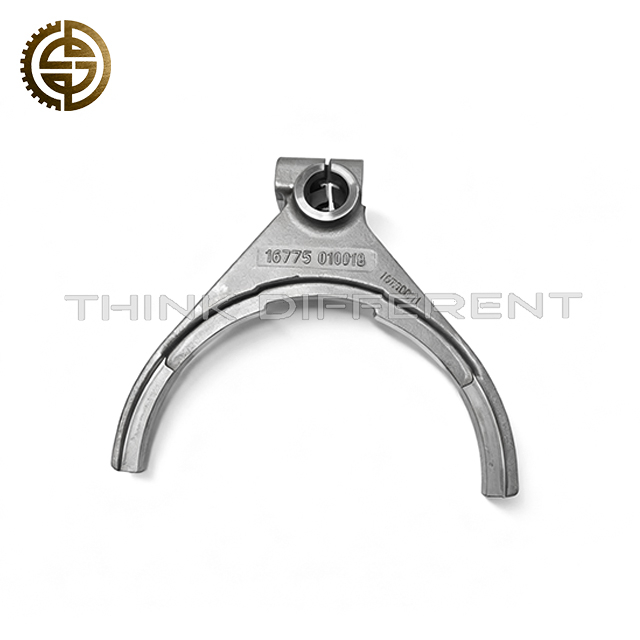

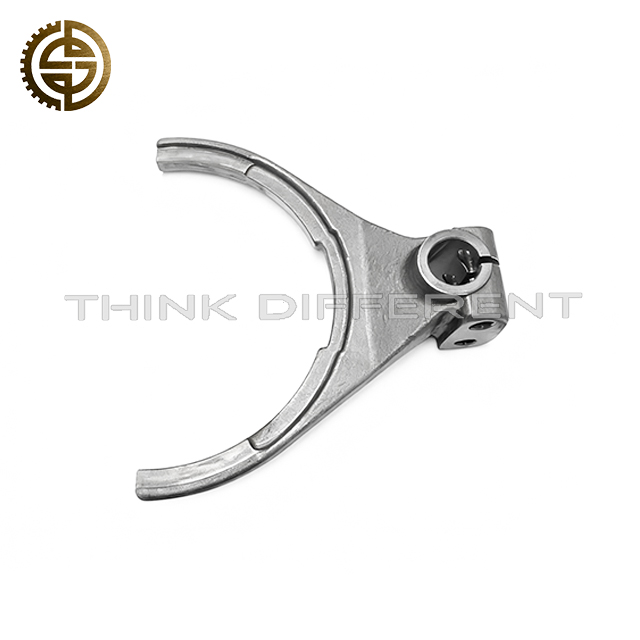

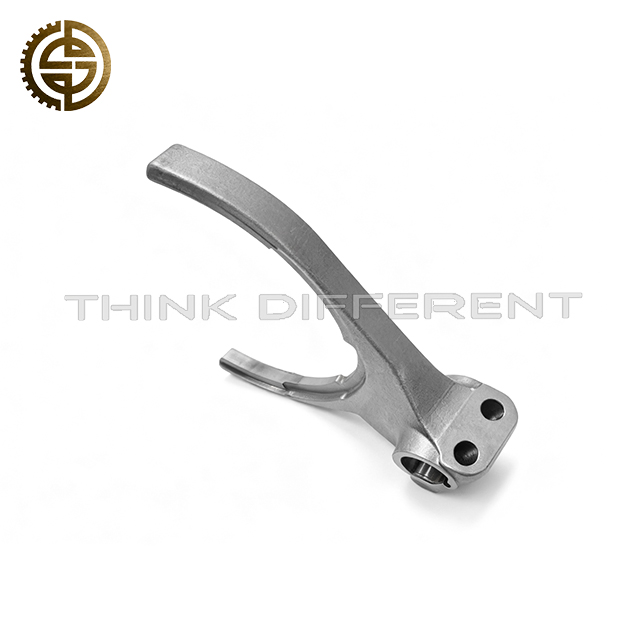

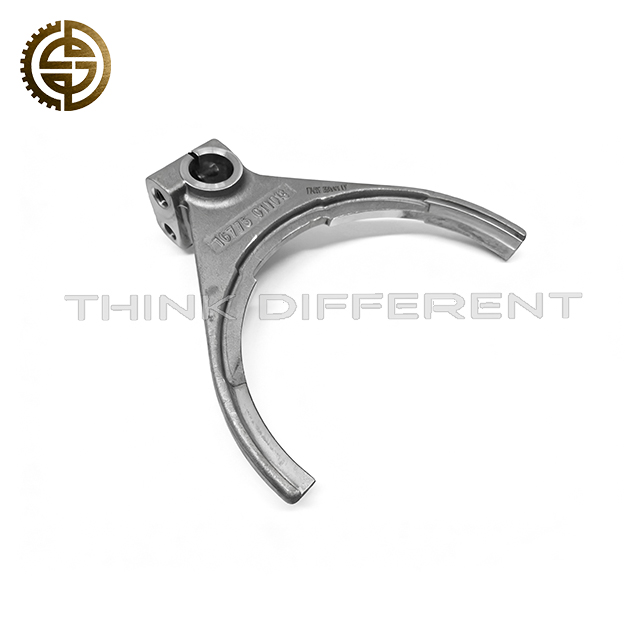

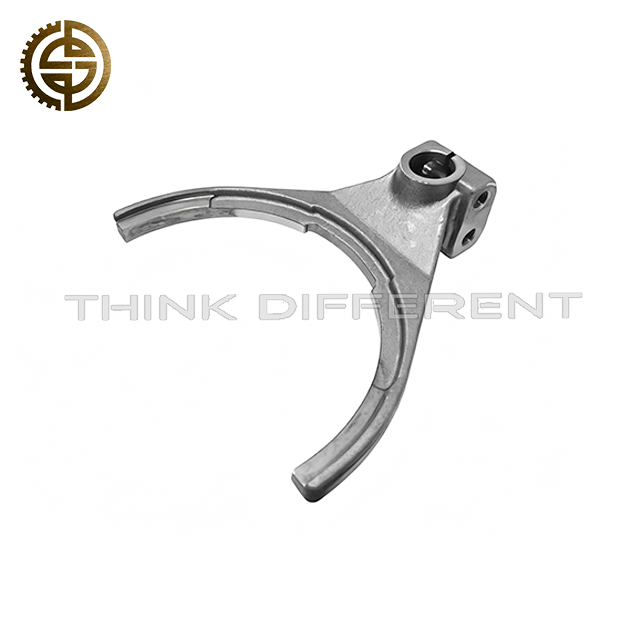

Product Name | Transmission Gear Shift Fork | Part No. | 16775-1 |
Type | Transmission Parts | Place Of Origin | China |
Condition | New | MOQ | 1piece |
Warranty | 6 Months | Package | Carton/Wooden case/Iron case |
Service | 24 Hours Online | PAYMENT | TT, western union, L/C etc. |
Net Weight | 1.5kg | Size | 22*23*8cm |
Integral cast ductile iron balances toughness and rigidity to resist arm cracking and twisting under frequent shift impact loads.
Precisely milled prong contact surface keeps even contact with synchronizer ring and lowers abrasion from local stress concentration.
Annular oil storage groove inside shaft bore holds transmission lubricant to form lasting oil film and reduce dry scratch wear between shaft and fork hole.
Two standard threaded fixing holes disperse shift force and avoid fork offset caused by single-point fastening stress.
Standard unified prong span width, shaft bore size and mounting hole distance follow general multi-speed heavy truck transmission assembly standards to fit daily vehicle maintenance demands.
