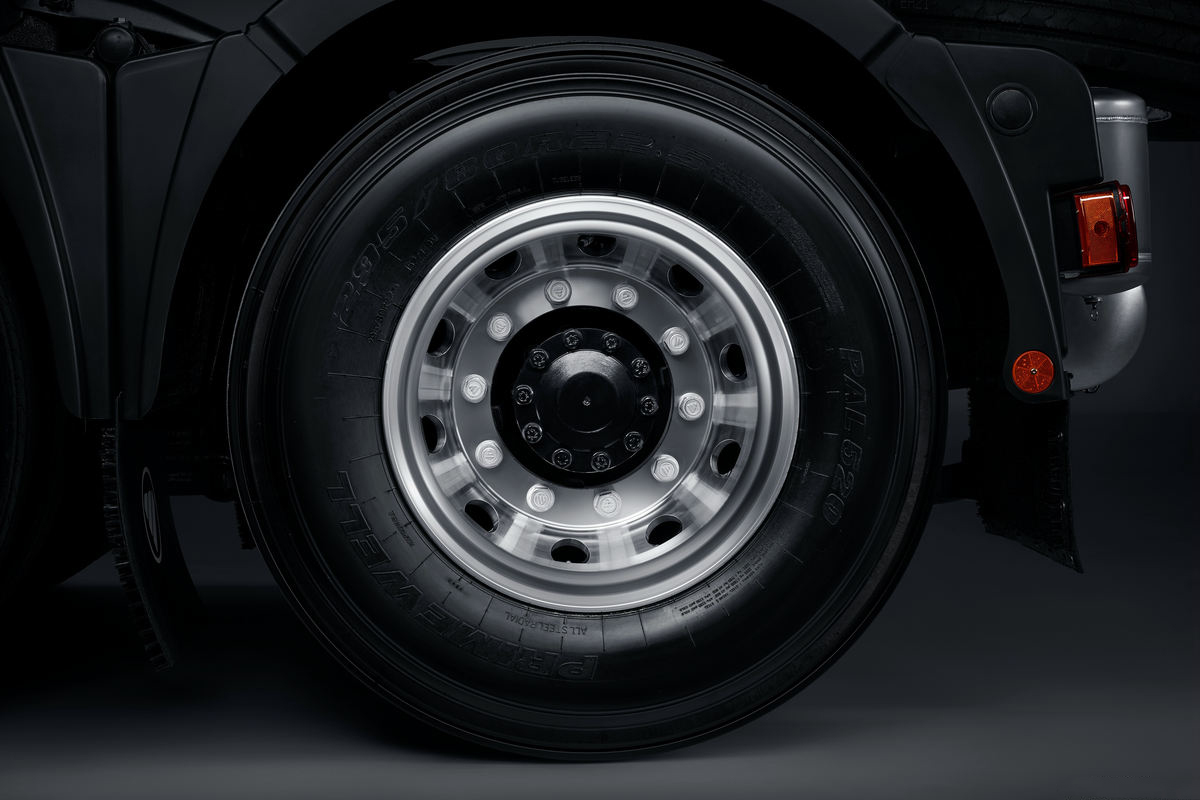

In the road freight system, trucks always undertake the core mission of material transportation. Among the complex structures of a truck, the wheel system is the most fundamental, critical, yet often overlooked component. Unlike engines that deliver powerful output or transmissions that transmit torque precisely, the wheel system determines driving safety, fuel economy, tire life, and operating costs through its seemingly simple structure.

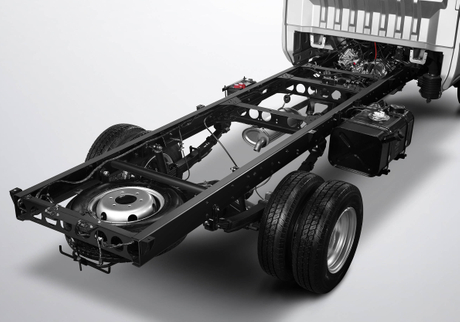

From a professional engineering perspective, the wheel system is the running assembly connecting the vehicle body, axle, and ground. It is not just a simple combination of “tires and steel rims”, but a precision mechanism integrating force transmission, load support, and safety control. During operation, power from the engine reaches the axle through the drivetrain and is finally converted into traction by the wheels to propel the truck forward. When the driver presses the brake pedal, braking force is also converted into frictional resistance by the wheels to stop the high speed truck smoothly. Meanwhile, it bears the vertical pressure of the truck’s own weight and dozens of tons of cargo around the clock, resisting impacts and vibrations from rough and uneven roads.
First, support and load-bearing function. This is the most basic mission of the wheel system. For light trucks, heavy trucks, or engineering vehicles, the full weight of the vehicle and cargo is ultimately transmitted to the wheels through the suspension and axles. A reasonably designed wheel system with sufficient strength can stably bear rated loads and avoid deformation, loosening, or fracture under all working conditions: standing, starting, driving, and turning.
Second, force and moment transmission function. The wheel is the only force transmission medium between the vehicle and the ground. Driving force, braking force, and steering force are all realized through wheel-ground contact. Without stable transmission efficiency, even the most powerful engine cannot be converted into forward momentum, and the most sensitive brake system cannot ensure safe stopping.
Third, cushioning and vibration damping function. When trucks travel on national highways, rural roads, construction sites, and other complex surfaces, they continuously suffer jolts and impacts. The cooperation between the elastic structure of the tire and the wheel effectively absorbs and buffers road-induced vibration, reducing damage to the frame, body, cargo box, and goods, while improving driving comfort and protecting roads from excessive damage.
Fourth, improving driving efficiency and reducing operating costs. Modern wheel systems are continuously optimized for rolling resistance, heat dissipation, and wear resistance. Combined with lightweight design, they effectively reduce fuel consumption and extend component life, directly cutting costs for tire replacement, maintenance, and fuel expenses.
A complete truck wheel system consists of multiple functional components working in coordination:
· Tire components: casing, inner tube, and flap; elastic parts in direct contact with the ground.
· Wheel body: rim and spoke; fix the tire and connect to the axle.
· Load-bearing rotating parts: wheel hub, bearing, oil seal, hub cover; ensure stable wheel rotation.
· Brake components: brake disc, brake drum, brake caliper; achieve deceleration and stopping.
· Auxiliary parts: wheel nuts, balance weights, valve stem, extension tube, gaskets, etc.
· Intelligent safety system: Tire Pressure Monitoring System (TPMS).
· Heavy-duty reinforcement parts: wheel reducer; mostly used in mining, engineering, and heavy-duty dump trucks.
The tire is the only component in the wheel system in direct contact with the ground and the core consumable determining grip, braking, load capacity, and comfort. It is an annular elastic body composed of rubber, cord, steel wire, belt layers, and other composite materials. Although simple in appearance, it integrates materials science, mechanics, technology, and other disciplines. During truck operation, tires endure continuous loads, friction, high temperatures, impacts, and twisting; their performance directly affects overall vehicle safety.

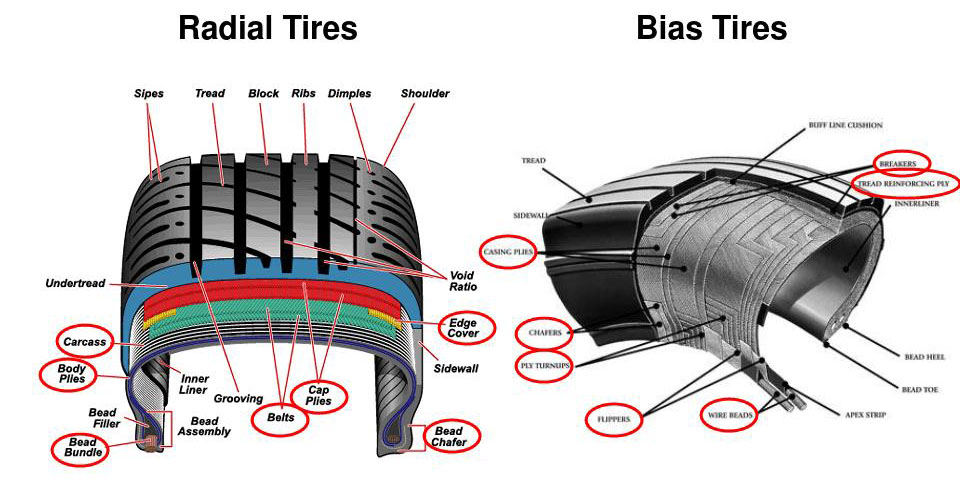

According to the arrangement of carcass cords, truck tires are mainly divided into conventional bias tires and radial tires, with significant differences in structure, performance, service life, and cost.

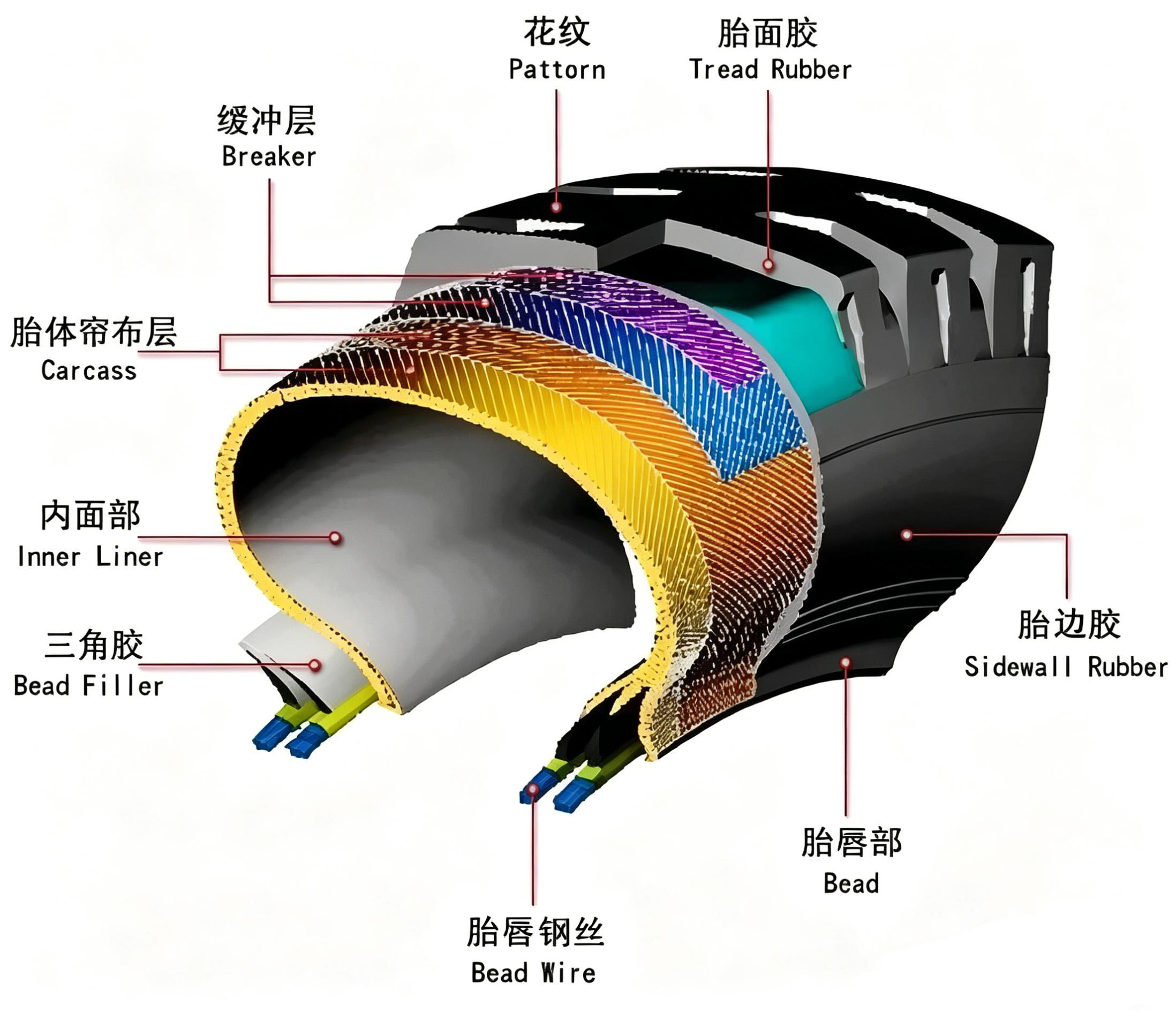

The bias tire is a traditional structure where cords in the carcass plies and cushion plies cross each other at an angle of less than 90° relative to the tire centerline. This design provides a relatively soft tread, low running noise, and lower manufacturing cost. However, it has obvious drawbacks: high inter-ply friction, high rolling resistance, excessive heat generation, poor high-speed stability, average wear resistance, and relatively high fuel consumption. Currently, bias tires are mainly used in low-speed, low-cost, non-long-haul vehicles and are gradually being phased out.

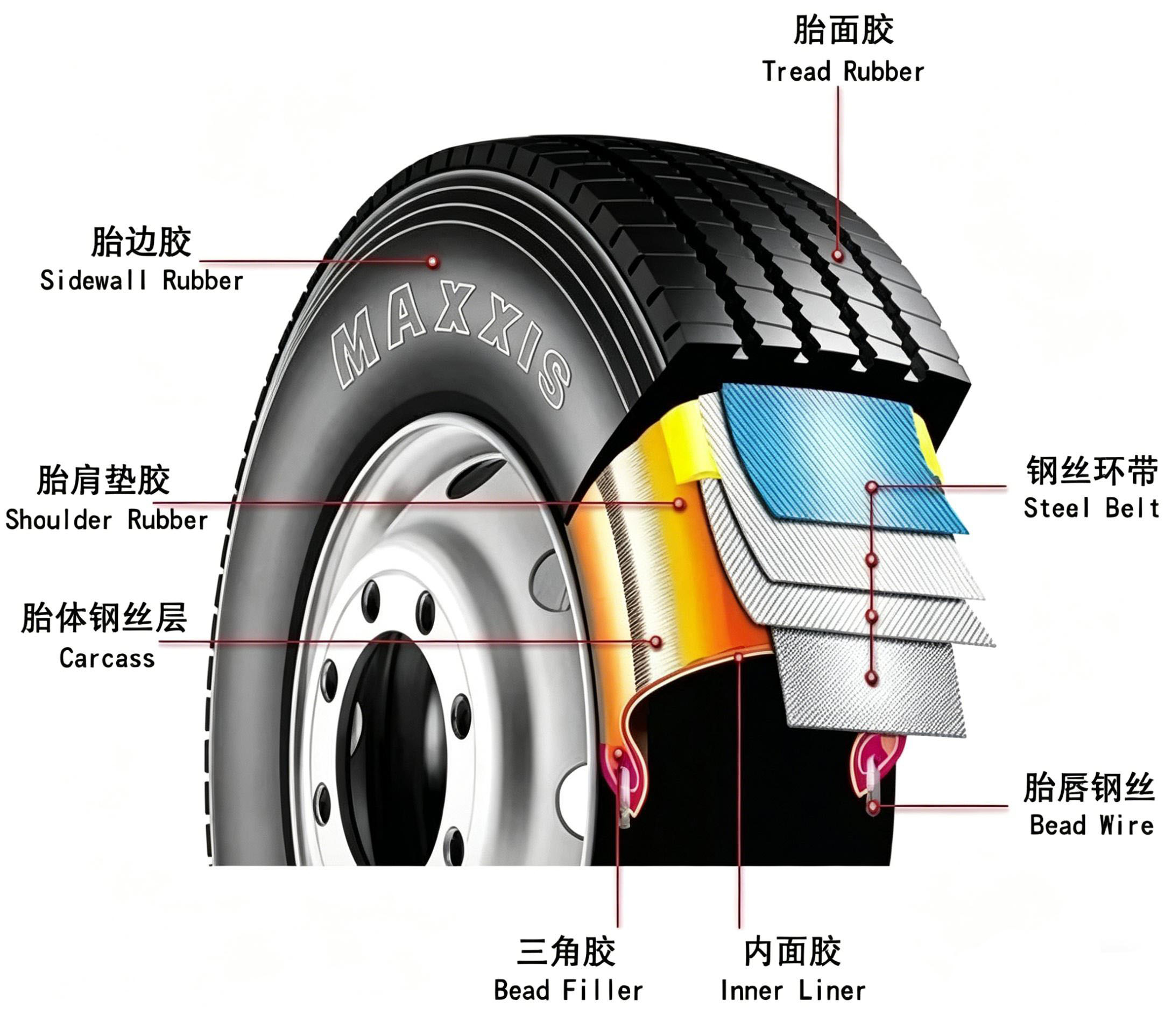

The radial tire is the mainstream choice for modern commercial vehicles with a more scientific design: carcass cords are arranged radially, consistent with the tire’s meridional section, like Earth’s meridians. Meanwhile, multiple high-strength, low-stretch circumferential belt layers are added at the crown to tightly reinforce the carcass. This structure offers comprehensive advantages: larger contact area, stable grip, minimal tread slip, and uniform ground pressure; greatly reduced rolling resistance, saving 3%–8% fuel compared with bias tires; high carcass strength, puncture and wear resistance, and longer service life; fewer plies, faster sidewall heat dissipation, and higher load capacity. The only disadvantages are thinner sidewalls, average lateral deformation resistance, and higher manufacturing cost, but its overall cost-performance is far superior.

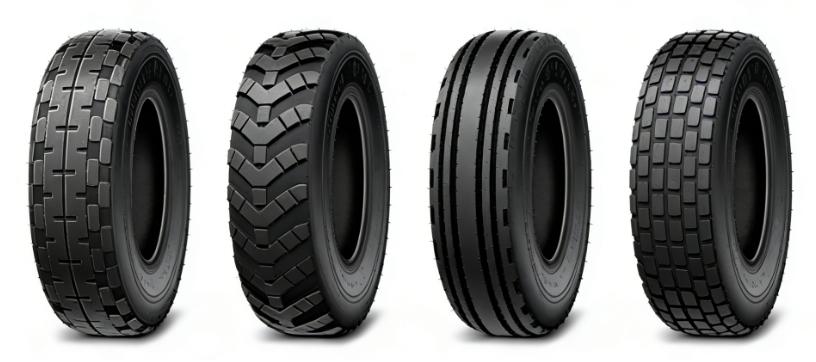

Truck tires are classified into various types for different application scenarios:
· By structure: tubed tire and tubeless tire. Tubeless tires feature better sealing, faster heat dissipation, and higher safety and are gradually becoming mainstream.
· By material: all-steel radial tire and semi-steel radial tire. All-steel tires have higher strength for heavy trucks and engineering vehicles; semi-steel tires are mostly used in light trucks and buses.
· By working condition: all-season tire, summer tire, winter tire, snow tire, mud tire, mining tire, long-haul high-speed tire, etc.

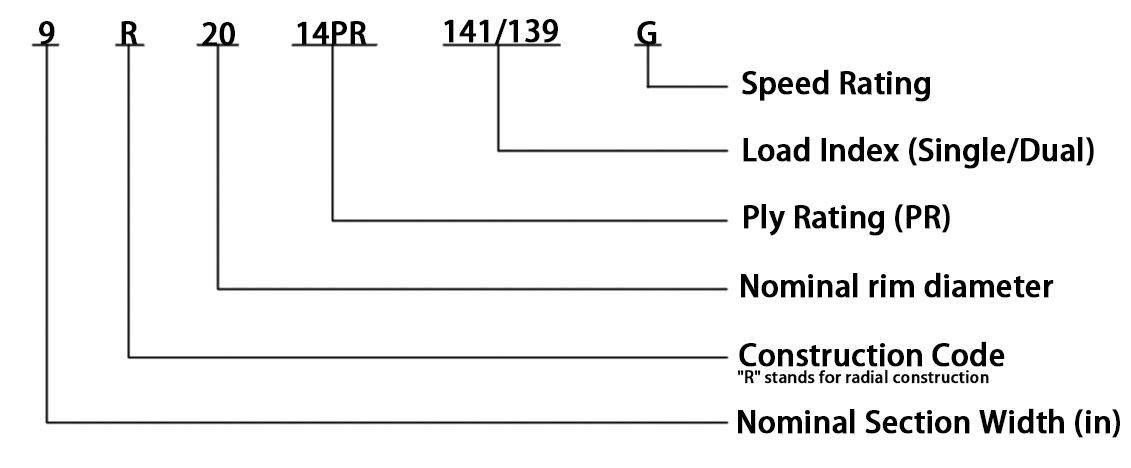

Globally standardized specifications are printed on the tire sidewall and serve as the core basis for tire selection, replacement, and use.
Ply rating refers to the nominal number of cord plies (not actual plies) and indicates load capacity. Higher PR means greater load capacity, impact resistance, and deformation resistance. “PR” is a globally universal abbreviation (e.g., 6PR, 8PR, 10PR, 12PR). For example, 8PR suits medium-light trucks; 12PR and above are used in heavy trucks and engineering vehicles. PR is directly related to load index: higher PR means higher load index and greater payload.

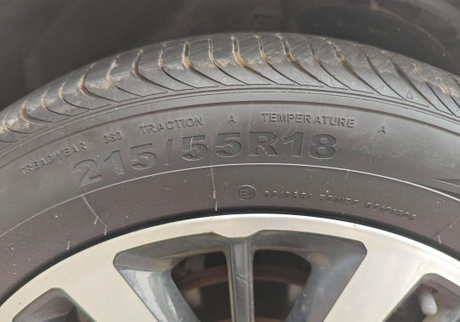

Key size parameters include outer diameter (D), inner diameter (d, rim diameter), section width (B), section height (H). The aspect ratio (H/B) is critical for cushioning and handling. Dimensions follow international standards in inches. Example: 215/55R18
· 215: section width (mm)
· 55: aspect ratio
· R: radial construction
· 18: rim diameter (inch)Tire and rim sizes must be strictly matched to avoid bead unseating, air leakage, and blowouts.
Speed symbols indicate the maximum permitted speed and are globally standardized. Truck tires typically use medium-low speed ratings for heavy-load safety.
· B:50, C:60, D:65, E:70, F:80, G:90, J:100
· K:110, L:120, M:130, N:140, P:150, R:170
· S:180, T:190, U:200, H:210Long-haul trucks often use L/M (120/130 km/h); engineering/mining vehicles use K and below (≤110 km/h).

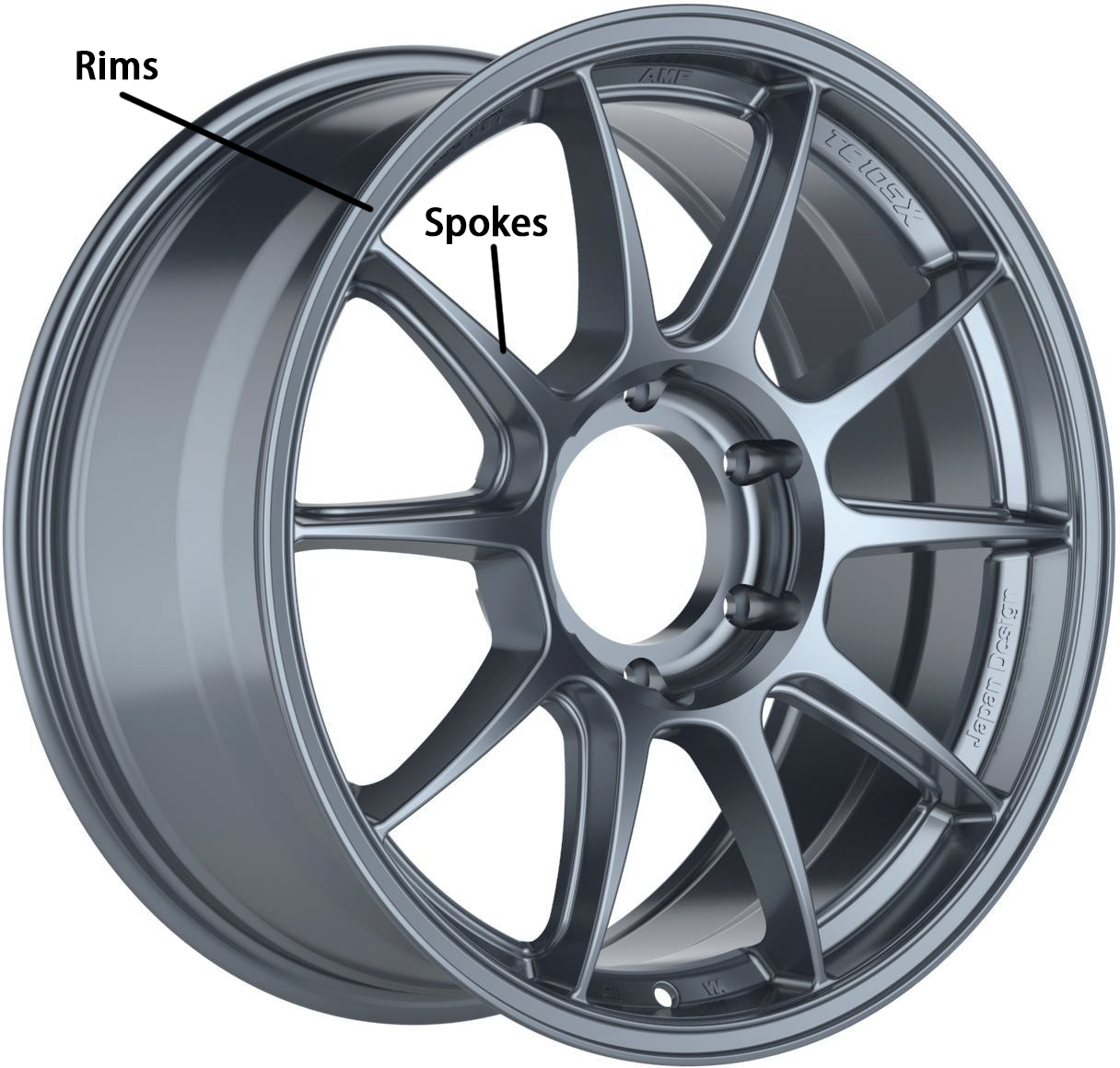

If the tire is the “sole” of the truck, the wheel is the supporting “skeleton”. The wheel is a rotating component between the tire and axle that bears continuous rotational loads, mainly composed of the rim and spoke. The rim fixes the tire bead for stable installation; the spoke connects the rim and hub to transmit force and torque. A qualified truck wheel must feature high strength, high rigidity, fatigue resistance, impact resistance, and good heat dissipation.
Made of cast iron with low cost and sufficient strength for medium trucks. Disadvantages: heavy weight, poor heat dissipation, easy brake fade, and safety risks. Mainly used in some medium trucks and low-speed engineering vehicles.
Stamped and welded from high-strength steel with high strength, impact resistance, deformation resistance, and durability. It outperforms cast iron in heat dissipation and offers moderate cost. It is the mainstream choice for heavy trucks, dump trucks, and long-haul trucks, with high universality, easy maintenance, and large market share.
Forged or cast from aluminum alloy with a key advantage: lightweight (15%–30% lighter than steel), reducing curb weight, increasing payload, and cutting fuel consumption. Aluminum alloy provides far better heat dissipation, reducing brake fade and extending tire and brake life. It has an attractive appearance and strong corrosion resistance, representing the trend for high end long-haul and high-efficiency logistics vehicles.

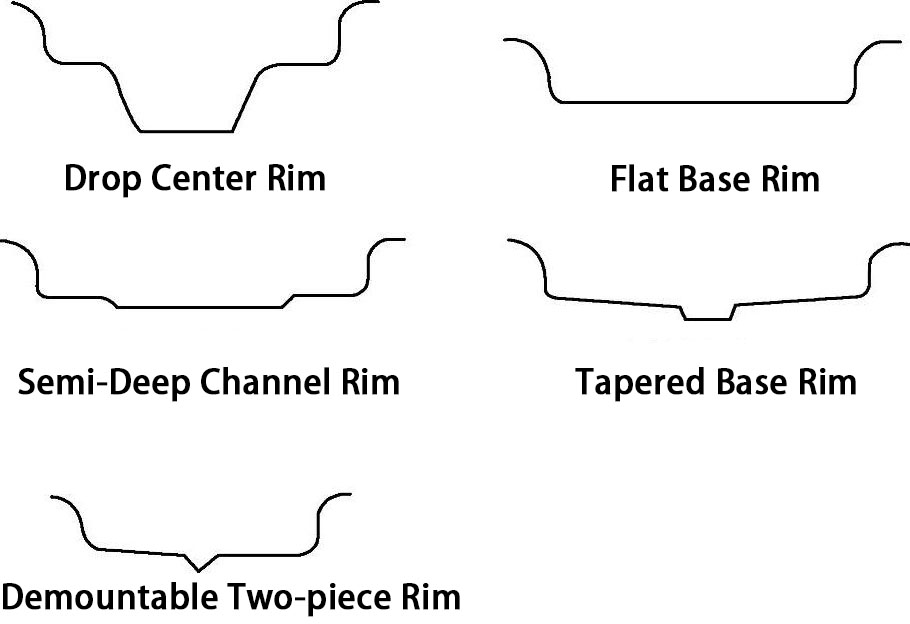

A rim is an annular component that holds the tire in place. Its structural design directly affects tire installation, removal, and load-bearing stability. Trucks commonly use five major types of rims:
The Flat Base Rim (FB) is the most widely used rim for medium and heavy-duty trucks. It features a robust structure, high load capacity, and complies with international standards, making it suitable for most heavy-duty applications. It uses a one-piece flange with a split elastic lock ring to effectively prevent the flange from dislodging. During installation, the tire is placed onto the rim, followed by inserting the flange and lock ring sequentially, resulting in relatively convenient assembly and disassembly. With uniform load distribution, it stably accommodates large-size, high-load truck tires, balancing practicality and safety. It is the mainstream choice for heavy-duty trucks and long-haul freight vehicles and is widely applied in various road freight scenarios.
The Drop Center Rim (DC) features a one-piece structure with a deep central groove. It is simple, rigid, lightweight, and represents an internationally common light-duty rim type. It is mainly suitable for light trucks and small off-road vehicles, specifically designed for small-size, highly elastic tires. Assembly and disassembly are convenient and efficient without requiring complex tools. Limited by its groove depth, it cannot fit large-size, high-hardness heavy-duty tires and has relatively low load capacity, making it unsuitable for medium and heavy-duty trucks. It is mostly used in urban distribution and short-distance light-load operations.
The Tapered Base Rim (TB) is a heavy-duty optimized version of the flat base rim, with an overall inclined bottom design. As an internationally recognized heavy-duty rim, it is primarily used for large heavy-duty trucks, mining dump trucks, and other extra-high-load vehicles. This inclined structure allows tighter contact between the tire bead and the rim, distributes contact stress, and reduces the risk of bead deformation and unseating under heavy loads. It also facilitates tire installation and removal, especially for large-size, high-hardness heavy-duty tires. Compared with conventional flat base rims, the tapered base rim offers higher load strength and better heat dissipation, enabling it to adapt to long-term heavy loads and complex road conditions, making it the preferred rim for heavy-duty commercial vehicles.
The Semi-Deep Channel Rim (SDC) is an intermediate type between the drop center rim and the flat base rim, complying with international standards and balancing lightweight design and basic load capacity. With a moderate groove depth, it retains the easy assembly advantage of the drop center rim while providing sufficient load-bearing strength for medium-size tires, effectively avoiding the low capacity of drop center rims and the complex assembly of flat base rims. It has a wide range of applications, mainly for medium and light trucks, medium buses, and light-duty engineering vehicles, and meets the requirements of urban distribution, short-distance transportation, and light engineering operations.
The Demountable Two-piece Rim (DT) is an internationally standardized heavy-duty rim composed of inner and outer halves connected and fastened by bolts, with extremely high structural strength. It is specially designed for large-size, high-hardness engineering tires and mining tires. Its greatest advantage is convenient assembly and disassembly: the tire can be easily installed or replaced simply by removing the connecting bolts and separating the two halves, solving the difficulty of mounting large heavy-duty tires that are hard to press into place. The only drawback is that the assembly and disassembly steps are slightly more complex than other rim types. It is mainly used in special heavy-duty scenarios such as engineering vehicles and mining trucks, and can adapt to harsh road conditions.

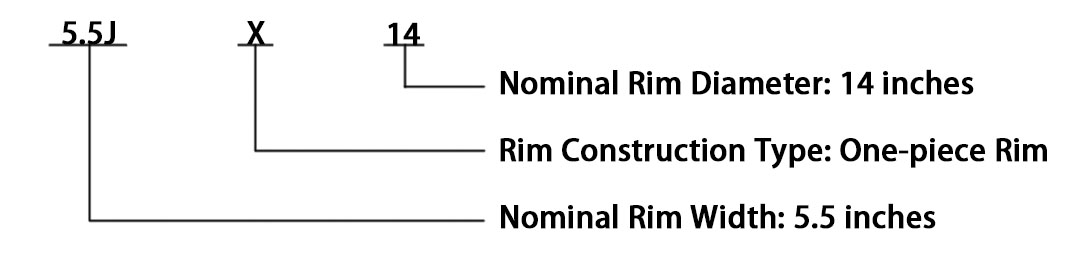

Rim specifications follow global rules:
· Width and diameter in inches.
· X: one-piece rim; –: multi piece rim.
· Suffix letters (E, F, J, JJ, etc.): indicate flange contour for tire-bead matching.
Tire faults account for a high proportion of truck failures, and abnormal tire pressure is the leading cause of blowouts, rollovers, brake failure, and irregular tire wear. Statistics show underinflation increases fuel consumption by 3.3% and significantly raises blowout risk. TPMS (Tire Pressure Monitoring System) monitors tire conditions in real time and provides early warnings; it has become an essential safety device for commercial vehicles.
TPMS is an electronic safety system that automatically monitors tire pressure and temperature in real time (whether moving or stationary) and alerts to abnormalities: over-inflation, under-inflation, overheating, and air leakage.
· Real-time warnings greatly reduce the probability of serious accidents such as blowouts and rollovers.
· Maintaining standard pressure reduces fuel consumption and extends tire life.
· Reduces breakdowns and repairs, improving transportation efficiency and lowering operating costs.
Relies on ABS wheel-speed sensors to detect pressure anomalies by comparing wheel speed differences. Underinflation reduces tire diameter and increases rotational speed, triggering an alarm. Advantages: low cost, no extra sensors, software upgrade only. Disadvantages: low accuracy, no pressure readout, cannot locate faulty tires, fails if both tires on an axle are underinflated, poor high-speed stability.

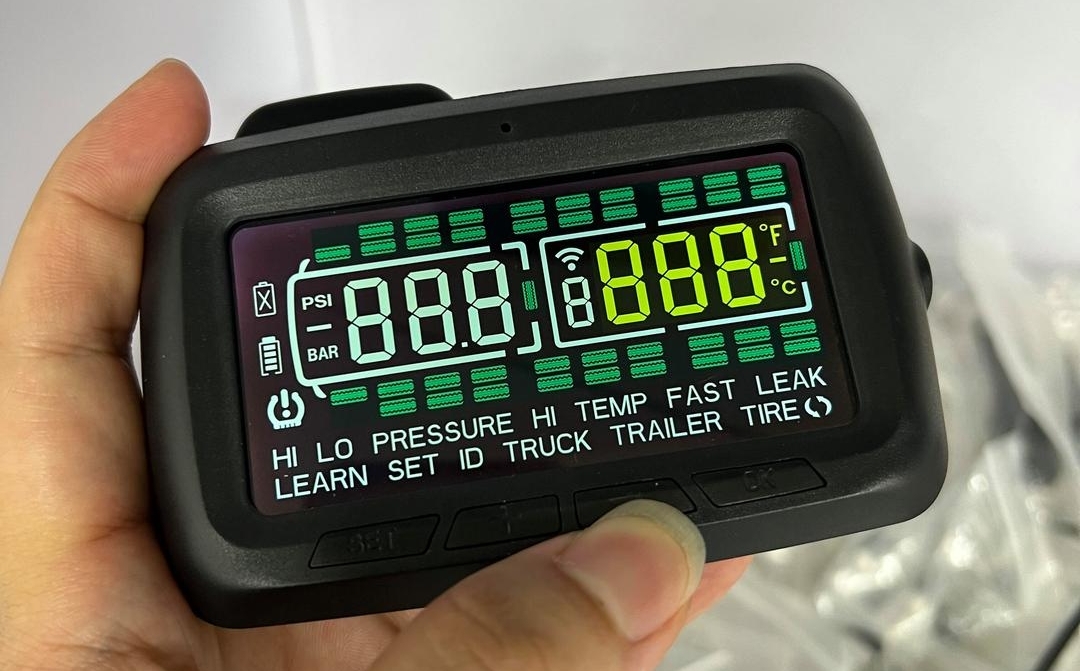

Installs dedicated pressure and temperature sensors inside each tire, collecting and transmitting data wirelessly to a receiver, displaying real-time pressure and temperature on the dashboard, and accurately alarming and locating faults. Advantages: high precision, fast response, high reliability, full process monitoring. Preferred for long-haul heavy trucks, commercial buses, and dangerous goods carriers, and recommended by national standards.
A hybrid TPMS combines both types but still cannot match full direct TPMS.
For truck owners and drivers, understanding the wheel system supports better use, maintenance, safety, and cost control. Key practical points:
1. Prioritize radial tires; tubeless all-steel radials are best for long-haul logistics for superior grip, fuel saving, wear resistance, and safety.
2. Select rims by scenario: FB multi-piece steel rims for medium-heavy trucks; upgrade to aluminum alloy for lightweight and high-efficiency operation.
3. Mandatory direct TPMS: monitor pressure and temperature in real time to prevent blowouts.
4. Match tire patterns to axle position: steering, drive, and trailer tires must not be randomly mixed to avoid irregular wear and reduced grip.
5. Regular inspection: check pressure and valve stems weekly; inspect rim deformation, cracks, bearing clearance, and oil seal tightness monthly; perform wheel alignment regularly to avoid uneven wear, pulling, and hub loosening.
6. Standard loading: no overloading or uneven loading; balanced left-right load reduces uneven wear and stress, extending system life.
The wheel system, simple in appearance, is the core system supporting truck movement, load bearing, braking, and safety. It operates collaboratively through modules including tires, wheels, wheel ends, brakes, intelligent monitoring, and heavy-duty reinforcement, with each component performing an irreplaceable role. From light urban delivery vehicles to heavy mining trucks, from smooth highways to muddy construction sites, the wheel system consistently bears heavy loads and drives freight forward. By prioritizing the selection, use, and maintenance of this “steel feet”, we ensure safe, stable, and cost-effective transportation, maximize truck value, and protect the safety and income of every transporter.
