In the large camp of road transportation, trucks, as the "giants" that carry goods and connect urban and rural areas, always put driving safety as the top priority. However, the core component that controls the steering of these "giant wheels" and determines the driving direction—the steering system—is often overlooked. Unlike the roaring engine or the visible tires, it quietly undertakes the critical mission of "responding precisely to every command", which is directly related to the driver’s operational safety and road traffic stability. Today, we will uncover the mystery of the truck steering system and understand its working principle, type differences, technical standards and daily maintenance points in plain language.

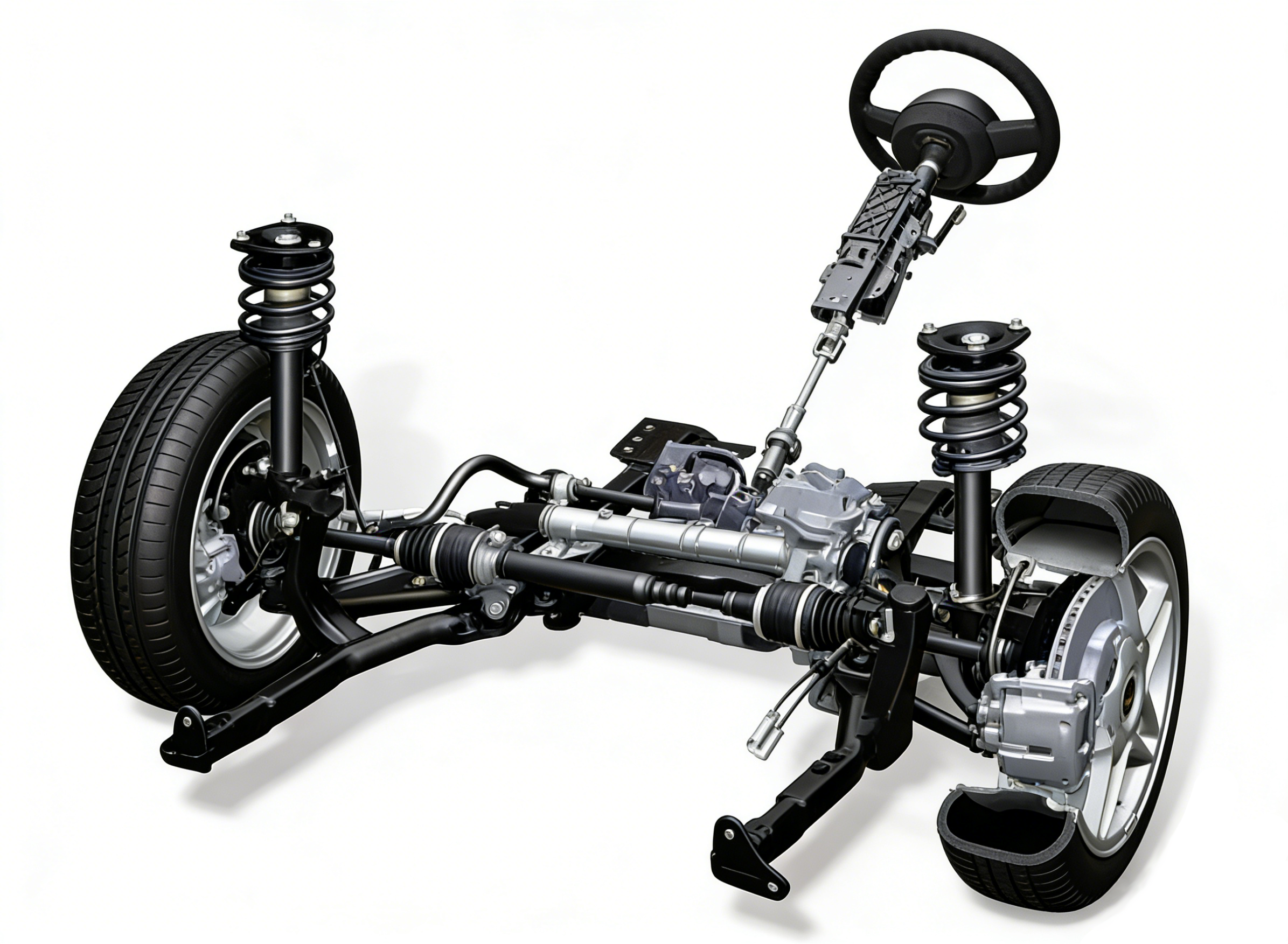

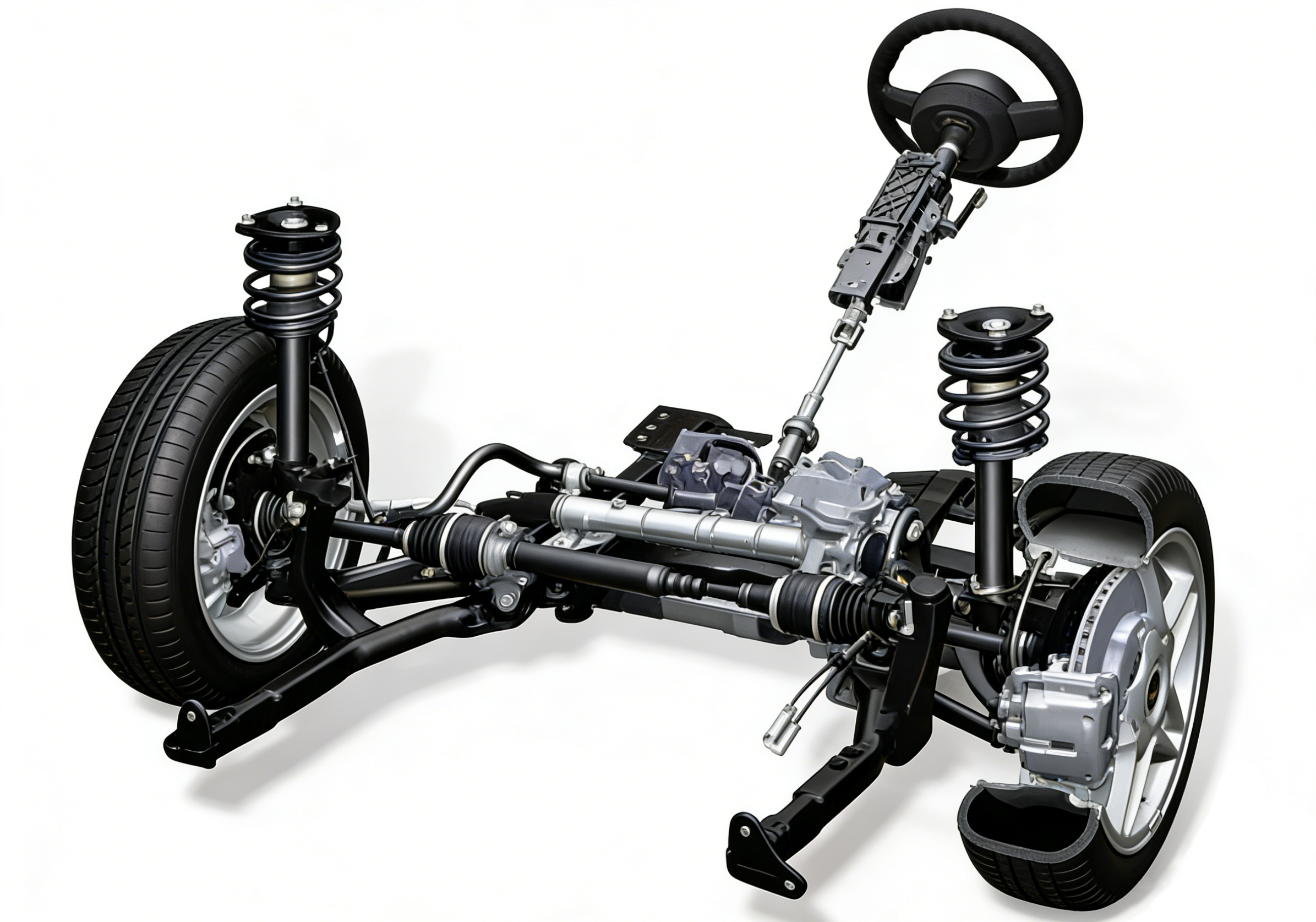

By professional definition, an automotive steering system refers to a series of devices used to change or maintain the driving or reverse direction of a vehicle. Its core function is to transmit and amplify the force from the driver’s steering wheel, drive the truck’s steering wheels (usually the front wheels) to deflect at a certain angle, thereby changing the vehicle’s driving direction. At the same time, it can transmit the road feedback force to the steering wheel, allowing the driver to perceive road conditions and achieve "road feel" feedback.
Specifically, during driving, the vehicle needs to change its driving direction according to the driver’s will, which is called vehicle steering. For wheeled vehicles, the way to achieve steering is that the driver uses a special mechanism to deflect the wheels (steering wheels) on the vehicle’s steering axle (generally the front axle) at a certain angle relative to the vehicle’s longitudinal axis. When the vehicle is driving straight, the steering wheels are often subject to lateral road interference and automatically deflect to change the driving direction. At this time, the driver can use this mechanism to deflect the steering wheels in the opposite direction and restore the original driving direction.
Under normal circumstances, only a small part of the energy required for vehicle steering is provided by the driver, and most is provided by the engine through the power steering device. However, when the power steering device fails, the driver should still be able to independently undertake the steering task. Therefore, the power steering system is formed by adding a set of power steering devices to the mechanical steering system.
Compared with passenger cars, trucks have heavier bodies, longer wheelbases, larger turning radii, and often operate under heavy loads. Therefore, the requirements for the steering system are stricter—not only sufficient steering power, but also accurate steering, stable and reliable performance, allowing drivers to control easily even under complex road conditions.
Especially for heavy vehicles with a maximum total mass of more than 20 tons, once the power steering device fails, the force applied by the driver to the steering knuckle through the mechanical transmission system is far from enough to deflect the steering wheels to achieve steering. Therefore, the power steering devices of such vehicles must be particularly reliable. After all, for trucks weighing dozens of tons, a single steering failure may be a fatal safety hazard. According to industry experience statistics, more than 80% of truck accidents are related to steering system failures, which shows its importance.
With the development of truck technology, the steering system has also undergone iterations from simple to complex, from manual to power-assisted. At present, there are three main categories, each with different characteristics and application scenarios. From the development trend, the steering system is upgrading from mechanical steering to hydraulic power steering and electric power steering, and developing towards a more reliable and intelligent direction. The overall steering gear develops rapidly abroad, among which the rotary valve structure is the mainstream direction, and the full-power steering system has also become an important development direction in the future.
This is the most traditional steering structure, which completely relies on the driver’s physical strength to transmit steering commands, commonly used in early small trucks or old models. Its composition is very simple: the steering wheel rotates the steering shaft, changes the direction of force through the steering gear (common recirculating ball type or rack and pinion type), and then pushes the wheels to complete steering through the tie rods.
The advantages are prominent: reliable structure, low maintenance cost, basically no electronic failures. As long as the mechanical parts are intact, it can work normally. But the disadvantages are also obvious: great steering resistance, especially when moving at low speed or under heavy load. The driver needs great effort to turn the steering wheel, and long-term driving is prone to arm soreness and fatigue.
Nowadays, this pure mechanical steering system has been basically eliminated, and can only be found in a few old models or light-duty mini trucks.
Maintenance focus: Regularly inspect the ball joints of the tie rods. Wear will cause steering free play (empty stroke when turning the steering wheel). It is usually necessary to check every 20,000 km, and replace them if serious looseness occurs.
To solve the laborious problem of mechanical steering, the Hydraulic Power Steering System (HPS) came into being, which is still the mainstream configuration of heavy-duty trucks. On the basis of the mechanical steering structure, it adds a set of hydraulic power-assisted devices, mainly composed of power steering pump, oil reservoir, power cylinder, steering control valve, etc. The core is to drive the hydraulic pump through the engine to generate pressure, push the steering mechanism, and "save effort" for the driver.
Domestic commercial vehicles mainly adopt integral recirculating-ball hydraulic power steering gears. In terms of cost, space and weight, this method of increasing servo pressure by pressure oil is mature and advantageous.
Its working principle is very simple: when driving straight, the oil pressure output by the hydraulic pump is uniform, and the steering wheels keep straight; when the driver turns the steering wheel, the steering control valve will change the oil flow direction, so that high pressure is generated on one side of the power cylinder, pushing the tie rod to assist in completing the steering action. At low speed, the assist pressure is large, making parking and turning easier; at high speed, the assist pressure is reduced, making steering more stable, avoiding out-of-control caused by too light steering.
In addition, on the basis of mechanical hydraulic power steering, an Electro-Hydraulic Power Steering System (EHPS) has been developed. Its steering oil pump is no longer directly driven by the engine, but by an electric motor, and an electronic control system is installed at the same time, so that the steering assist force is not only related to the steering angle, but also to the vehicle speed. The mechanical structure adds a hydraulic reaction device and a fluid distribution valve, and the electronic control system includes a vehicle speed sensor, solenoid valve, power steering ECU, etc., which saves more energy.
Advantages: Linear steering feel, strong power, can easily cope with the steering resistance of heavy-duty trucks, mature and stable, strong ability to adapt to complex road conditions.Disadvantages: Mechanical hydraulic power steering needs to consume engine power, which will increase a small amount of fuel consumption; and it is necessary to regularly check the liquid level and cleanliness of the power steering fluid. Once the power steering fluid leaks, the steering wheel will suddenly become heavy, causing potential safety hazards.
Maintenance focus: Replace the power steering fluid every 40,000 km, regularly check whether the oil pipes and joints leak, avoid idling damage of the power steering pump; check the tightness of the power steering pump drive belt, which should be about 1 cm when pressed with fingers, and replace it if there are cracks; prevent the hydraulic oil pipes from friction rupture, and replace the rubber hoses in time after aging.

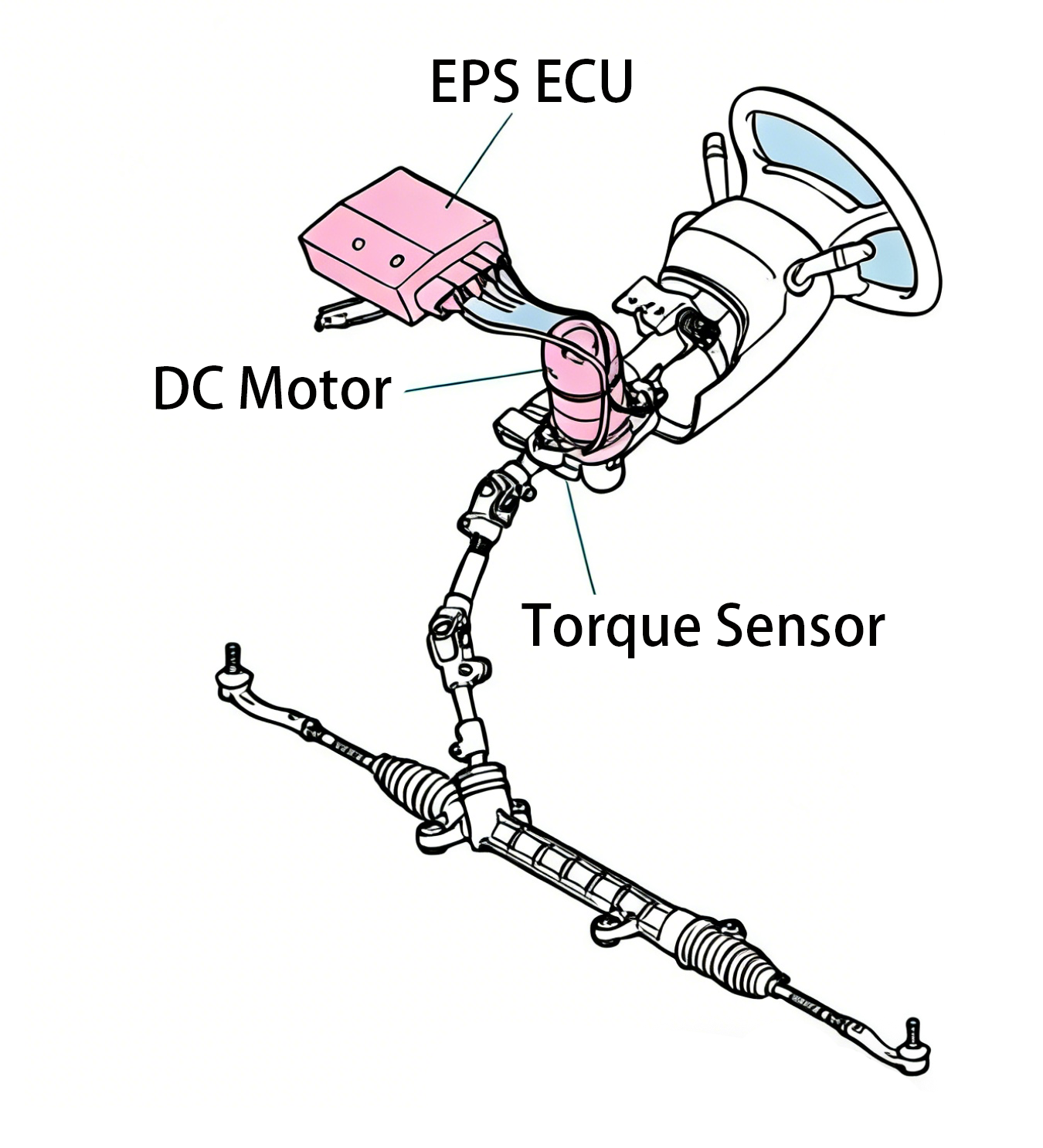

With the trend of electrification and intelligence, the Electric Power Steering System (EPS) is gradually applied in light trucks, new energy trucks, especially widely used in mini trucks. It abandons the complex pipelines and fluids of hydraulic power steering, and uses a motor to directly provide steering assistance. It is mainly composed of sensors, Electronic Control Unit (ECU) and assist motor, which can automatically adjust the assist size according to vehicle speed, steering angle and other signals.

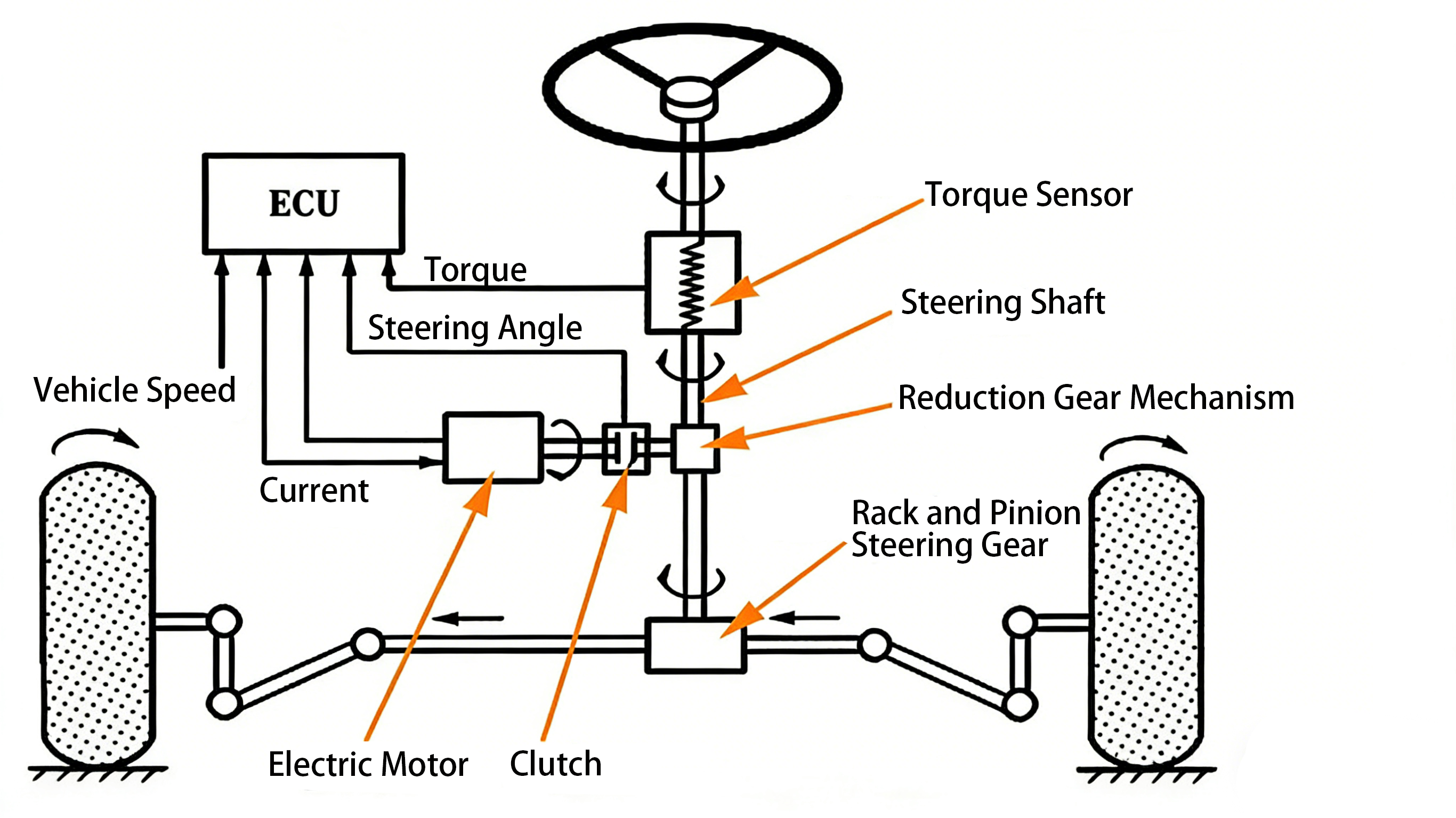

The electric power steering system commonly used in mini trucks also includes steering control devices (steering wheel, electric steering column, steering reducer, etc.), steering transmission devices (steering tie rods, steering trapezoidal mechanism, etc.).
For example, when moving at low speed, the motor provides maximum assistance, and the driver can complete steering by gently turning the steering wheel; when driving at high speed, the motor reduces assistance, making the steering wheel more stable and improving driving stability; at the same time, it can be compatible with automatic driving assistance functions, laying a foundation for intelligent driving.
Compared with the electro-hydraulic power steering system, the electric power system eliminates all hydraulic components, and has outstanding advantages in weight and engine compartment space.
Advantages: Low energy consumption, compact structure, simple maintenance, no need to regularly replace power steering fluid; accurate and controllable steering assistance, can effectively reduce driver fatigue, and adapt to the power demand of new energy trucks.Disadvantages: High cost, once the assist motor and sensor fail, professional equipment is required for detection and maintenance; durability under heavy load conditions is not as mature as the hydraulic power steering system.
Maintenance focus: Avoid staying in the state of the steering wheel at full lock for a long time (such as more than 10 seconds when moving), otherwise it is easy to damage the assist motor; if the EPS fault light on the dashboard lights up, stop and repair in time, do not force driving.
Regardless of the type of steering system, the role of core components is indispensable. They are like "joints" and "nerves", jointly ensuring smooth steering. Understanding these components can help us better judge faults and perform maintenance.
The steering gear is the core of the entire system, equivalent to a "reducer + amplifier", responsible for amplifying the rotation angle of the steering wheel and transmitting the force to the tie rods.

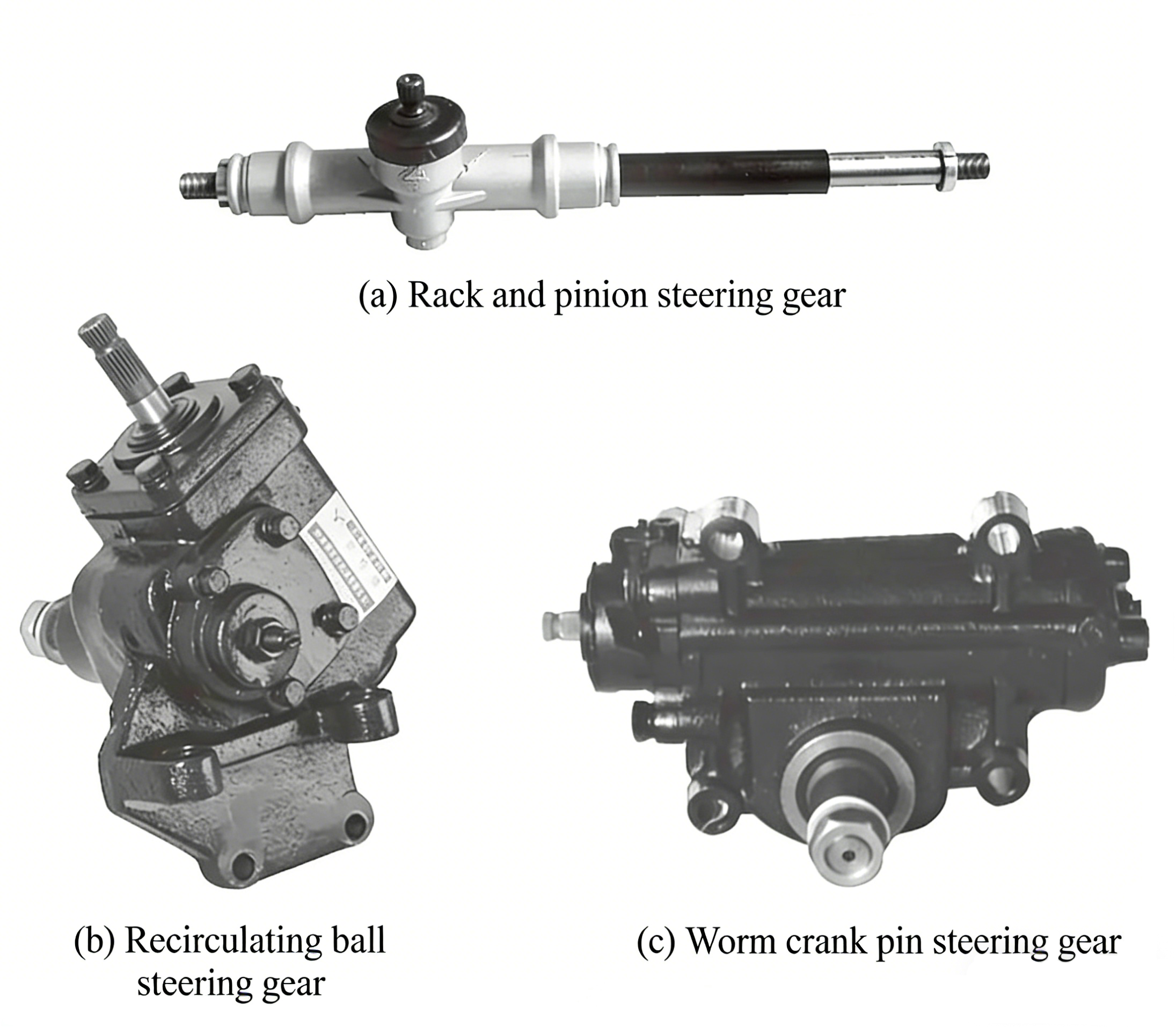

According to the structure, there are four main types of steering gears:
· Worm-pitman (WP type)
· Worm-roller (WR type)
· Recirculating ball (BS type)
· Rack and pinion (RP type)
According to the power-assisted form, it can be divided into mechanical type and power-assisted type (hydraulic power-assisted, electric power-assisted).
According to statistics, worldwide, recirculating ball steering gears account for about 45%, rack and pinion types account for about 40%, worm-roller types account for about 10%, and other types account for 5%. Among them, recirculating ball steering gears have been developing steadily. The proportion of recirculating ball steering gears in Japanese buses has reached 100%, and worm-roller types have been eliminated; large and small trucks mostly use recirculating ball types, among mini trucks, recirculating ball types account for 65%, and rack and pinion types account for 35%; rack and pinion types have developed greatly in Western European passenger cars.
The recirculating ball steering gear is mainly composed of screw, nut, steering gear housing and many small steel balls. The so-called "recirculating ball" refers to these small steel balls, which are placed in the closed pipeline between the nut and the screw, converting sliding friction into rolling friction with less resistance.
When the screw fixed with the steering wheel column rotates, it pushes the nut to move up and down, and the nut then drives the steering arm to swing back and forth through the gear to realize steering. The small steel balls circulate and roll in the closed pipeline.
Compared with rack and pinion type, recirculating ball type has high transmission efficiency, light operation, small wear, long service life, strong structure and high load capacity, suitable for heavy-duty trucks; rack and pinion type has simple structure and accurate steering, mostly used in light trucks and passenger cars.
Key reminder: Internal gear wear of the steering gear will cause excessive clearance, resulting in insufficient steering wheel return force, "clicking" sound when turning, etc. Usually, after more than 50,000 km of use, the probability of failure will increase significantly.

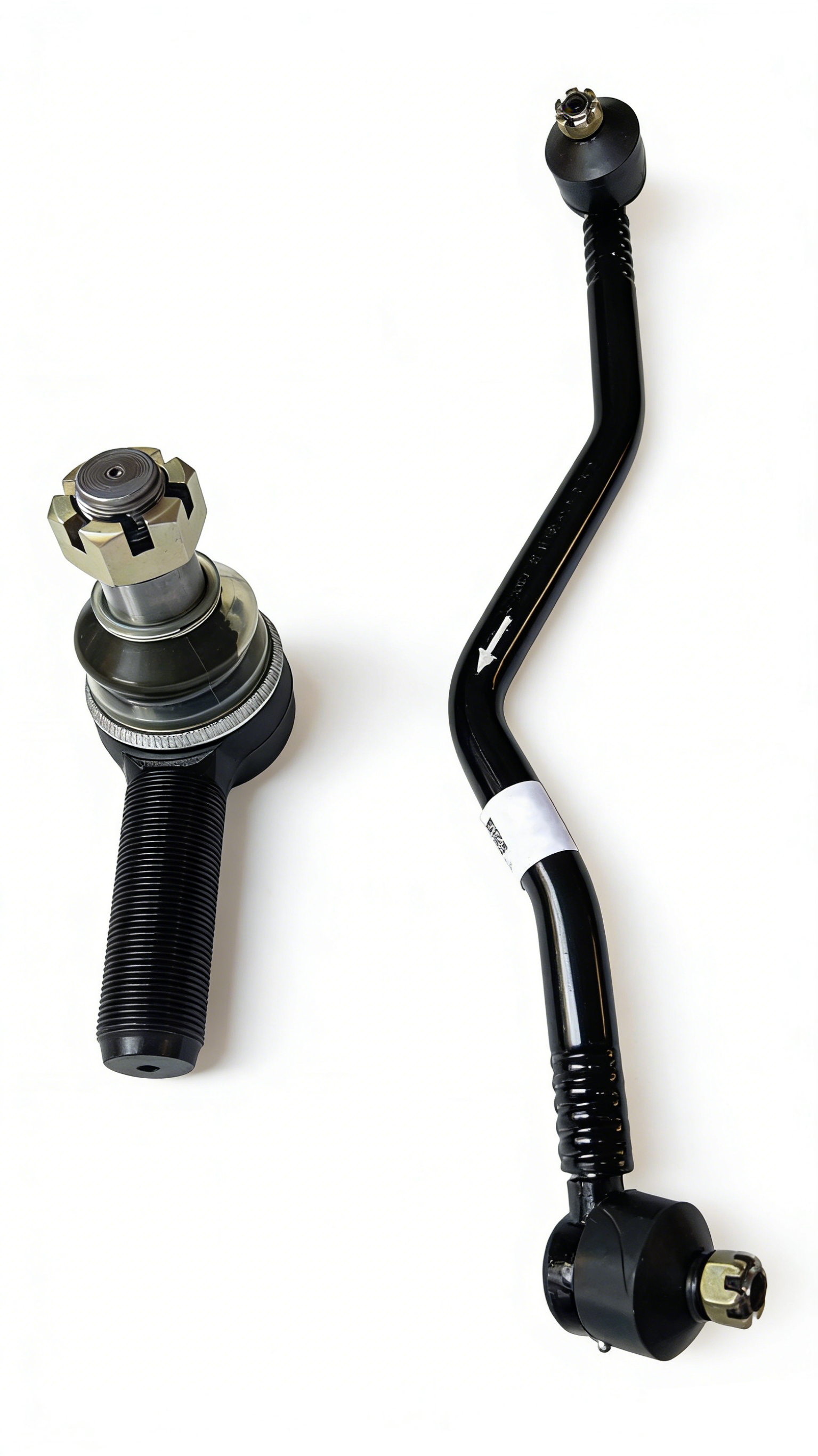

Tie rods connect the steering gear and the steering wheels, responsible for transmitting the force of the steering gear to the wheels and driving the wheels to deflect; ball joints are the "movable joints" connecting the tie rods and steering knuckles, ensuring flexibility during steering. These two parts are in a bumpy and stressed state for a long time, prone to wear, looseness, deformation and other problems, and are vulnerable parts of the steering system.
Key reminder: After the dust boot of the ball joint is broken, it will rust when entering water, leading to looseness of the ball joint, and even falling off in serious cases, causing steering failure; bending deformation of the tie rod will cause the steering wheel to be misaligned and the vehicle to deviate during driving, which needs to be replaced in time; at the same time, pay attention to checking the tightness of the ball joints of the tie rods, avoid too loose or too tight adjustment, and supplement lubricating oil in time when lacking oil.

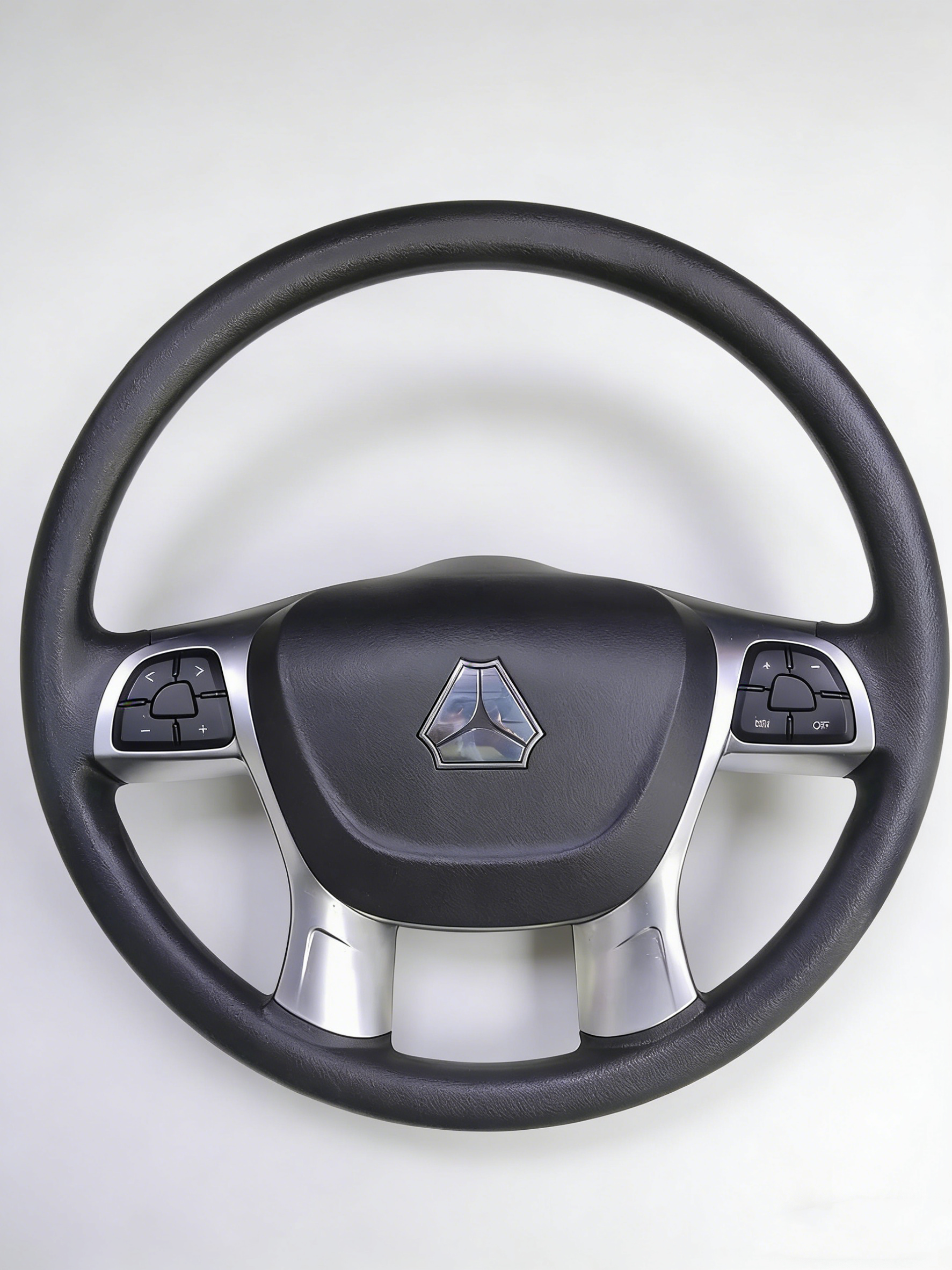

The steering wheel is the "handle" for the driver to control steering, and its rational design directly affects the driving experience. The steering wheels of imported heavy trucks mostly adopt a three-stage design with an adjustment range of 50-55 degrees, which is convenient for drivers to get on and off and drive for a long time; while some domestic heavy trucks adopt a two-stage design with an adjustment range of only about 40 degrees, which is easy to make drivers feel tired.
The steering shaft is responsible for transmitting the rotation of the steering wheel to the steering gear. Some steering shafts with universal joints can adapt to different installation angles, absorb road vibration and reduce steering wheel jitter. If the steering shaft is bent or the column is dented, it will scrape against other components and affect steering smoothness.

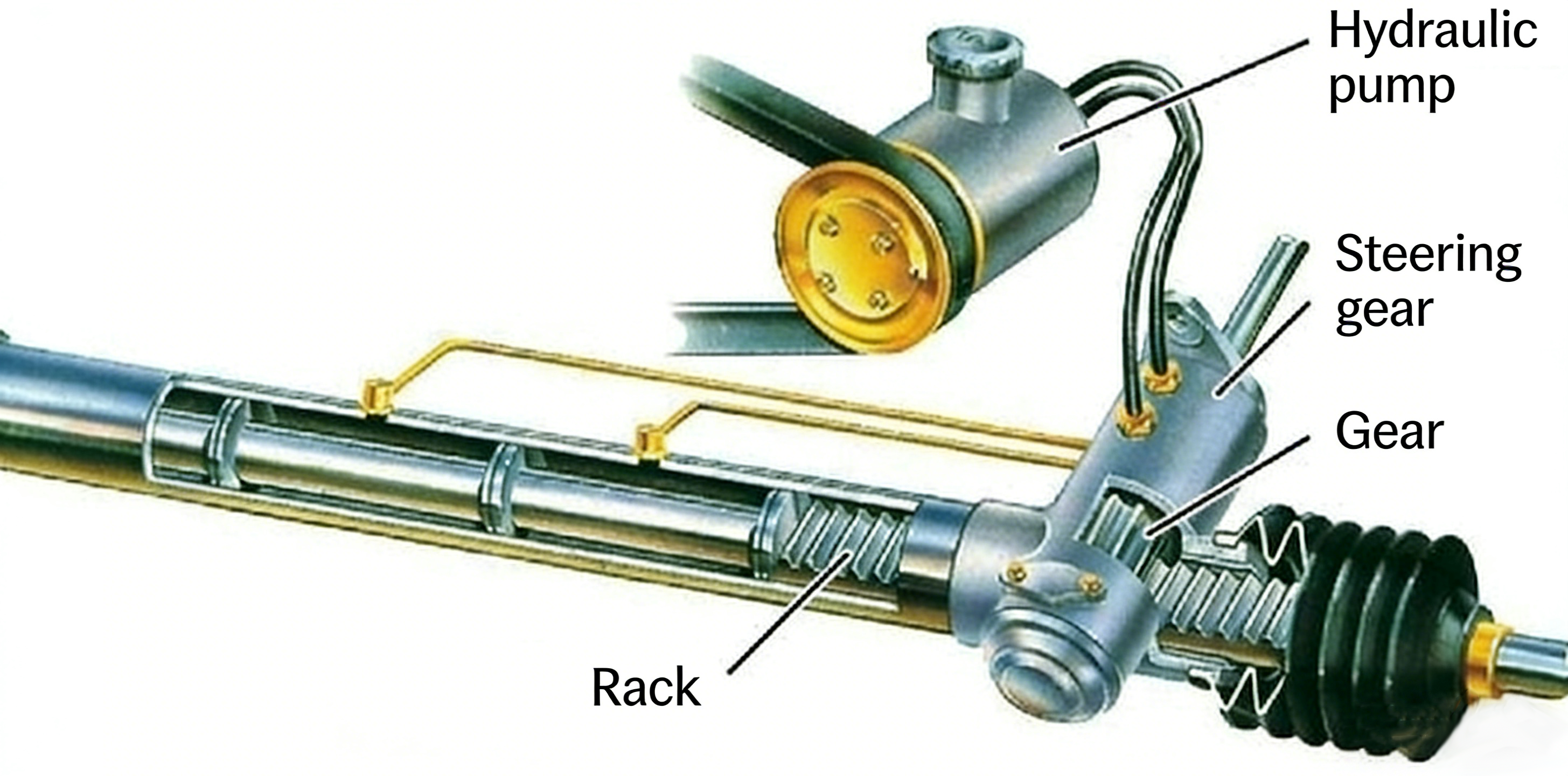

In the hydraulic power steering system, the hydraulic pump and power cylinder are the core: the hydraulic pump is driven by the engine to generate high-pressure oil; the power cylinder receives oil pressure to push the tie rod.
In the electric power steering system, the assist motor and ECU are the core: the ECU detects signals such as steering wheel angle and vehicle speed, and controls the motor to output appropriate assist torque to achieve accurate assistance.

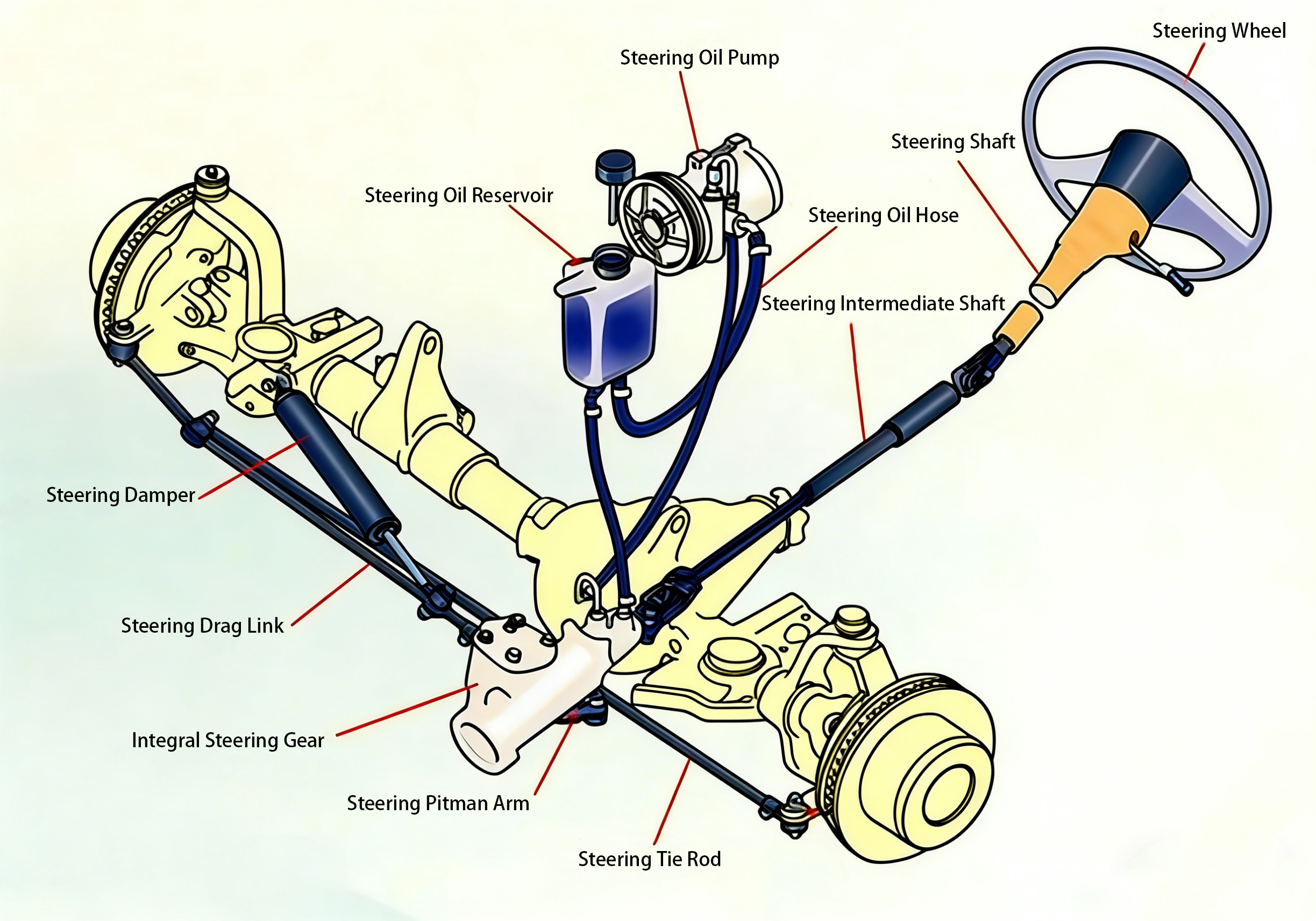

The hydraulic power steering system common in light trucks also includes steering energy supply devices (steering oil pump, steering oil tank, steering pipelines, etc.) to ensure the stable operation of the power assistance system.
Most faults of the truck steering system have obvious symptoms. Mastering these symptoms can help drivers find problems in time and avoid accidents. The following are several common faults and troubleshooting methods, sorted out in combination with industry standards and practical experience, more practical:
Symptoms: Great resistance when turning the steering wheel, especially obvious when moving at low speed or turning, even requiring both hands to exert force.Possible causes: insufficient or leaking power steering fluid in the hydraulic power steering system, or damaged hydraulic pump, loose drive belt; motor failure or sensor failure in the electric power steering system; stuck steering gear, excessively tight meshing of internal worm gear and worm, or no clearance between the steering arm shaft and the bushing; bent steering shaft or dented column; lack of oil or damage to the kingpin thrust bearing, excessively tight assembly between the kingpin and the bushing; excessively tight tie rod plug, excessively tight adjustment or lack of oil in the ball joint; insufficient tire pressure, incorrect front wheel alignment; bent front axle or frame.
Troubleshooting: First check the tire pressure, then check the hydraulic power steering fluid level (hydraulic power steering models). If the fluid is insufficient, supplement it and observe for leakage. At the same time, check whether the power steering fluid is too dirty or deteriorated. If necessary, clean the oil cup and filter element and replace the power steering fluid; check the tightness of the power steering pump drive belt, replace it if there are cracks; if it is still heavy, overhaul the steering gear, power steering pump or EPS system, and check whether the steering shaft, steering knuckle and other components are abnormal.
Symptoms: When driving straight, the steering wheel needs to be held tightly to keep the direction, and the vehicle will deviate to one side after releasing; the steering wheel is obviously skewed.Possible causes: Uneven left and right tire pressure or uneven wear; scraping of individual brake shoes, or tight wheel hub bearing on one side; broken individual leaf spring, uneven spring force on both sides; bent front axle or frame; incorrect front wheel alignment (deviation of toe angle, camber angle) or unequal wheelbases on both sides; inconsistent clearance between left and right steering knuckle kingpins and bushings, or inconsistent tightness adjustment of ball joints on both sides of the tie rod; uneven cargo loading of trucks.
Troubleshooting: First check the left and right tire pressure and wear, adjust the tire pressure to the standard value, replace tires with uneven wear; check whether the cargo is evenly loaded; then perform four-wheel alignment calibration; if still deviating, check whether the tie rod, suspension system, wheel hub, front axle and frame are deformed, check whether the brake and wheel hub bearing are abnormal.
Symptoms: Obvious vibration of the steering wheel when driving at low or high speed, which will be transmitted to the body in serious cases, affecting driving stability.Possible causes: loose wheel hub bearing, deformed wheel hub; loose tie rod ball joint; unbalanced front wheel dynamic balance, excessive wheel rim runout; excessive steering gear clearance (excessive meshing clearance between roller and worm, excessive upper and lower bearing clearance of worm); excessive clearance between steering knuckle kingpin and bushing; worn and out-of-round brake drum.
Troubleshooting: First perform front wheel dynamic balance, check whether the wheel hub screws are tightened and the wheel rim is out of round; then check the wheel hub bearing and tie rod ball joint, replace them if loose; check the steering gear clearance and the clearance between the steering knuckle kingpin and the bushing, adjust or replace if necessary; check whether the brake drum is worn and out of round, repair in time.
Symptoms: "Clicking", "squeaking" and other abnormal noises when turning the steering wheel, especially when steering to the limit position.Possible causes: loose or lack of oil in the tie rod ball joint; internal gear wear of the steering gear; faulty power steering pump (hydraulic power steering models); worn universal joint of the steering shaft; lack of oil or damage to the kingpin thrust bearing.
Troubleshooting: When turning the steering wheel, listen to the source of the abnormal noise. If it comes from near the front wheels, it is mostly a ball joint or tie rod problem. Check the tightness of the ball joint, supplement lubricating oil or replace it in time; if it comes from under the steering wheel, it is mostly a steering shaft or steering gear problem, which needs to be overhauled in time; for hydraulic power steering models, check whether the power steering pump is normal if abnormal noise occurs.
Symptoms: Insufficient turning (understeer) or excessive turning (oversteer) when the vehicle is turning, affecting vehicle passability and stability.Possible causes: Incorrect position of the steering arm installed on the rocker shaft; excessively long or short adjustment of the steering stop bolt; front axle moving back and forth; improper assembly position of the recirculating ball or the sector gear of the steering gear and the worm box, etc.
Troubleshooting: Adjust the installation position of the steering arm and the steering stop bolt to ensure that the steering angle meets the model requirements; check whether the front axle moves back and forth, fix it in time; check the assembly position of the recirculating ball, the sector gear of the steering gear and the worm box, and reassemble if necessary.
The stable operation of the steering system is inseparable from standardized daily maintenance. Combined with the characteristics of hydraulic power steering and electric power steering, the following core maintenance points are sorted out, taking into account practicality and operability:
The power steering fluid is the key to the operation of the hydraulic power steering system. Regularly check whether the power steering fluid is insufficient, and clean the hydraulic oil cup and filter element at the same time to prevent the power steering fluid from being too dirty or deteriorated; when replacing the power steering fluid, the fluid quality shall meet the original factory requirements, different brands of fluids cannot be mixed, and the system shall be cleaned before replacement to remove harmful impurities and sediments, eliminate noise, and prevent leakage and damage to the hydraulic pump.
Regularly check the tightness of the power steering pump drive belt. The tightness should be about 1 cm when pressed with fingers. Carefully observe whether there are cracks. If so, replace it in time.
Regularly check whether there is oil leakage at the pipe joints of the hydraulic system. Prevent the hydraulic oil pipes from contacting and rubbing with other components to cause rupture. Replace the hydraulic rubber hoses in time if they are aging.
Do not "lock" the steering wheel for a long time when steering, especially when steering in place, leave a certain margin to prevent excessive pressure in the hydraulic steering system and damage to the power steering pump or motor.
Regularly check the height of the power steering fluid level in the fluid reservoir: when hot (about 66°C, hot to the touch), the fluid level must be between the HOT and COLD marks; when cold (about 21°C), the fluid level must be between the ADD and COLD marks. If not, add power steering fluid (hydraulic transmission oil) that meets the standard.
For electric power steering models, avoid locking the steering wheel for a long time. If the EPS fault light on the dashboard lights up, stop and repair in time; regularly check the tie rod ball joints, universal joints of the steering shaft and other components, supplement lubricating oil in time, and replace them if the wear is serious.
The truck steering system is the "steering wheel" of the "giant wheels" and the "safety barrier" of the driver. Its evolution, from pure manual to hydraulic power steering, then to electric power steering and intelligent steering, not only reduces the driver’s labor intensity, but also improves driving safety and comfort; strict technical standards set a bottom line for the safety performance of the steering system, and standardized maintenance can extend its service life and avoid failures.
For truck drivers and practitioners, understanding the basic principles, technical requirements, common faults and maintenance points of the steering system, and developing the habit of regular inspection and standardized maintenance can effectively avoid steering failures. After all, for heavy-duty trucks, every smooth steering is a safety guarantee; every careful maintenance is a responsibility to oneself and others.
In the future, with the continuous advancement of technology, the truck steering system will be more intelligent, reliable and energy-saving, escorting the safe and efficient road transportation, so that every truck driver can "easily hold the direction, travel safely for thousands of miles".
