Views: 0 Author: Site Editor Publish Time: 2026-04-08 Origin: Site
In the field of commercial vehicles, the cargo box system is a key component that undertakes the core function of freight transportation. It is not just a simple "iron box", but a comprehensive system integrating loading, fixing, protection, loading and unloading, and management. It directly determines the efficiency of logistics transportation, the safety of goods, and the level of operating costs. As the core carrier for trucks to realize freight value, it is also vividly known as the "mobile warehouse" in logistics transportation in the industry.
As one of the most important systems among various commercial vehicle systems, the truck cargo box is usually installed behind the cab and above the chassis frame. Its position design not only considers the rationality of the driving vision, but also maximizes the use of chassis space, ensuring the cargo load without affecting the driving stability and maneuverability of the vehicle. This installation position is also the optimal scheme verified by long-term practice, which is suitable for the needs of various freight scenarios.
Many people's understanding of truck cargo boxes only stays at the basic level of "loading goods". In fact, a complete and mature cargo box system can realize seven core functions, each of which revolves around the entire process of freight transportation, escorting the safety and efficiency of freight transportation, and none of them can be missing.
First of all, the basic loading function is the core responsibility of the cargo box. Through reasonable space design, it provides a stable and safe bearing space for various types of goods. Whether it is scattered daily necessities, heavy building materials, or special fluids and fresh goods, a suitable cargo box space can be found for loading. Secondly, the cargo fixing function: during the vehicle's driving, road bumps, turns, braking and other working conditions will cause the cargo to shift. The cargo box effectively prevents the cargo from tipping over and colliding through structures such as sideboards, rope fixing points, and special fixtures, avoiding cargo damage and potential driving safety hazards.
The efficient unloading function is also an important part of the cargo box system. Different types of cargo boxes are suitable for different unloading methods, from manual unloading, mechanical-assisted unloading to fully automatic hydraulic unloading, which greatly saves unloading time and labor costs and improves the efficiency of freight turnover. The all-round cargo protection function covers multiple dimensions such as windproof, rainproof, leakproof, anti-collision, anti-corrosion, and explosion-proof, providing customized protection for goods with different characteristics. For example, the van cargo box can be windproof and rainproof, the special explosion-proof cargo box can transport dangerous goods, and the aluminum alloy cargo box can prevent goods from being corroded.
With the intelligent development of the logistics industry, the cargo management function has also become a standard configuration of the cargo box system. By integrating relevant equipment, it realizes the real-time retention of loading and unloading records, facilitating logistics enterprises to conduct inventory traceability, capacity scheduling and cost accounting. The cargo safety function is further upgraded: the electronic fence can real-time monitor the vehicle's driving range to prevent goods from being stolen or the transportation route from deviating, and the anti-theft device adds double protection for cargo safety. In addition, for trailer transportation, the cargo box system can also connect to the trailer management system C7 to realize the coordinated management of the trailer and the tractor, improving the efficiency of fleet operation.
The classification of truck cargo boxes in China is not single and fixed. Instead, various types have been derived according to factors such as cargo type, transportation conditions, and industry needs. Among them, the flatbed cargo box, stake cargo box, and van cargo box are the basic types, on the basis of which dump cargo box, tank-type upper fitting, tarpaulin-type cargo box and various special upper fittings are extended. Different types of cargo boxes have different focuses on structure, material and function. Only by accurately matching the freight scenario can their value be maximized.

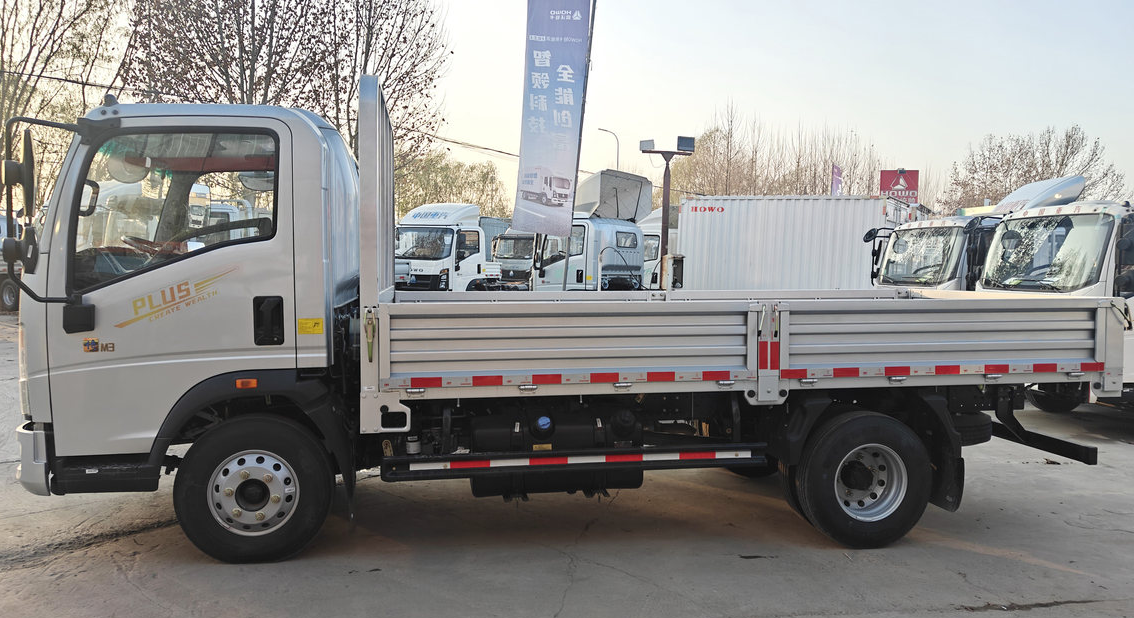

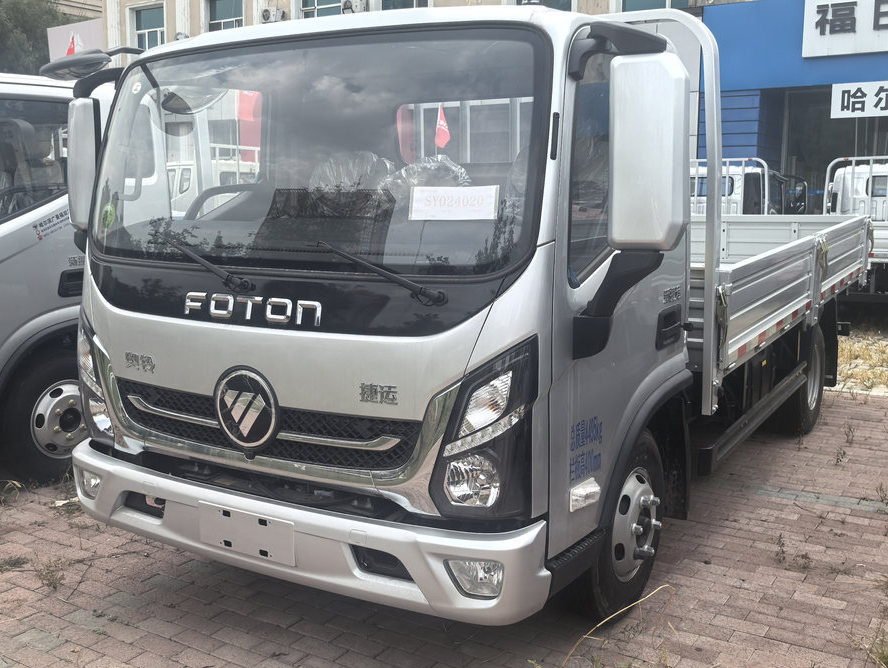

The flatbed cargo box is the most common and basic type of cargo box. Its structure is relatively simple, mainly composed of four core components: front panel assembly, side panel assembly, bottom panel assembly, and rear panel assembly. There are flexibly openable side panels around it, which facilitate the loading, unloading and handling of goods, and the side panels can also play a certain role in fixing goods.
In terms of material selection, there are two main types of materials for flatbed cargo boxes for users to choose from: steel and aluminum alloy. The steel cargo box has high strength, wear resistance and low cost, which is suitable for heavy-duty transportation and is the first choice for most engineering and building materials transportation vehicles. The aluminum alloy cargo box focuses on lightweight, which is lighter in weight, can effectively reduce the vehicle's own weight, improve fuel economy, and has certain corrosion resistance, which is suitable for general cargo transportation scenarios sensitive to self-weight.
There are also various choices for the shape of the cargo box bottom panel. The corrugated bottom panel has high strength and strong deformation resistance, which can bear the pressure of heavy goods and is a common choice for heavy-duty scenarios. The patterned bottom panel has anti-skid lines on the surface, which can effectively prevent goods from sliding during transportation and is suitable for loading scattered and easy-to-shift goods. The flat bottom panel has a flat surface, which makes loading and unloading goods more convenient, and is suitable for loading large and regularly shaped goods, such as home appliances and furniture.
In addition to materials and bottom panels, flatbed cargo boxes also have a variety of personalized choices. The side panel structure is divided into two types: external reinforcement ribs and internal reinforcement ribs. The external reinforcement ribs can improve the strength of the side panels and are suitable for heavy loads; the internal reinforcement ribs make the appearance of the cargo box more flat and are suitable for scenarios with certain requirements on appearance. The door opening methods are mainly three-door and five-door. The three-door is easy to operate and suitable for daily general cargo loading and unloading; the five-door has a larger opening angle, which is convenient for loading and unloading large goods or machinery. There are various specifications for the height of the side panel, but according to the requirements of relevant laws and regulations, the height cannot exceed 600mm to ensure the safety and compliance of vehicle operation.
In general, the flatbed cargo box has strong adaptability, moderate cost and flexible operation. It is mainly used for the transportation of scattered general goods such as daily necessities, building materials, agricultural machinery accessories and hardware tools, especially suitable for urban short-distance distribution and cargo transfer in the urban-rural fringe. It is the most widely used type of truck cargo box.

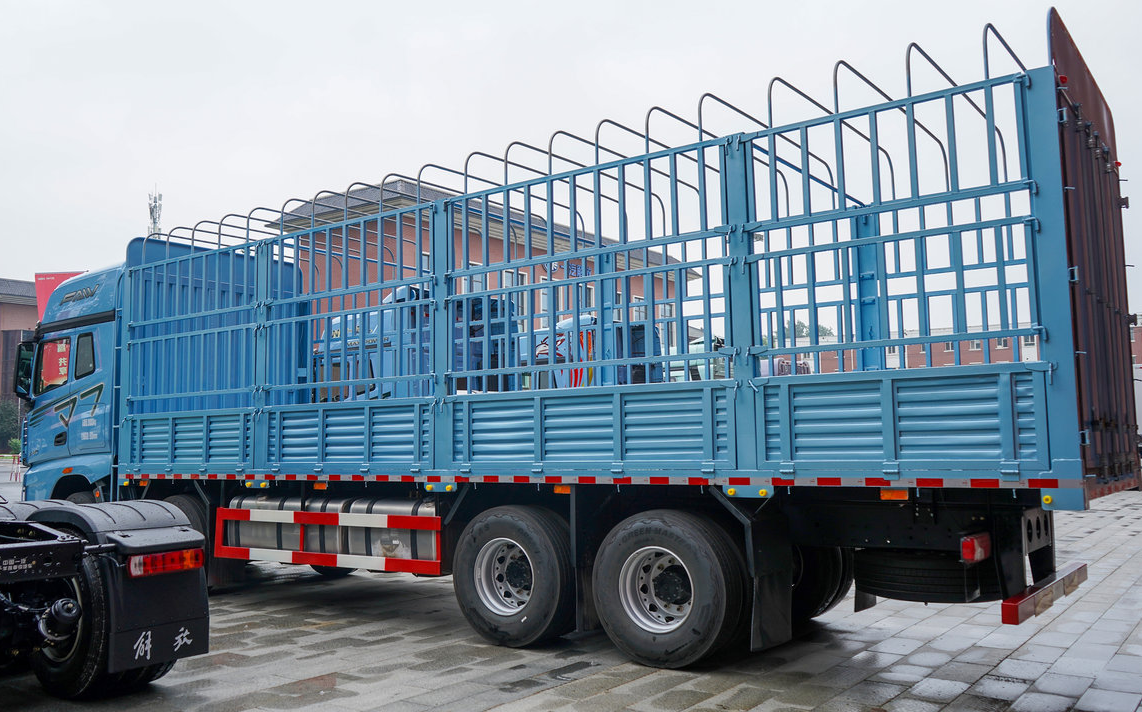

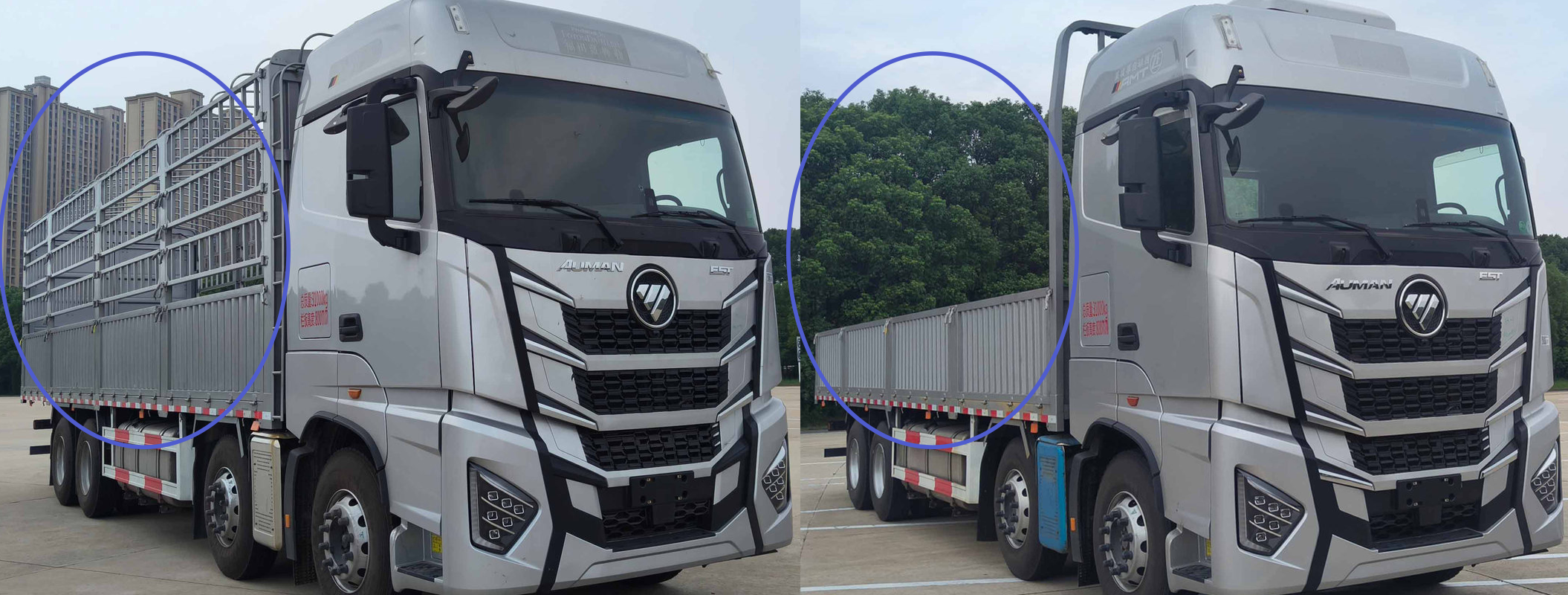

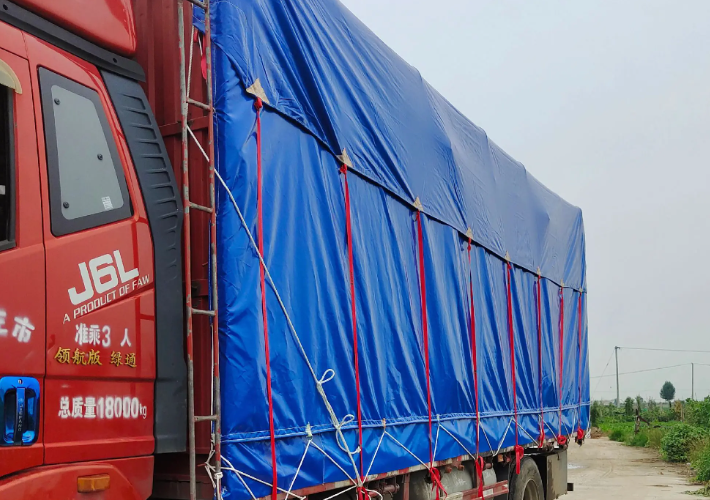

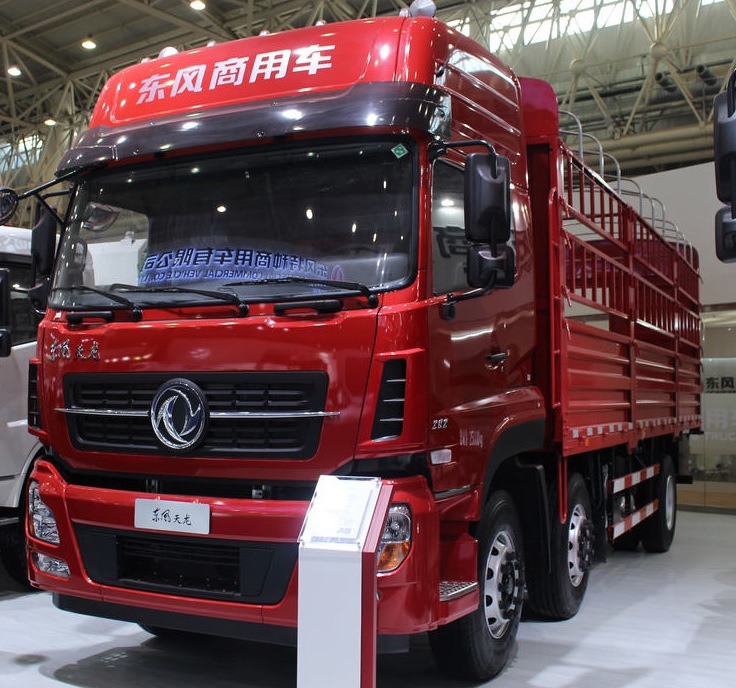

The stake cargo box is optimized on the basis of the flatbed cargo box. Its core structural feature is that the lower part is a conventional side panel, and the upper part is a fence structure. Poles and tarpaulins can be added as needed, which can not only ensure the ventilation of goods, but also play a certain protective role, avoiding goods falling or being damaged by external debris.
According to the provisions of China's relevant standard GB7258, there are clear requirements for the height of the side panel of the stake cargo box. Among them, the height of the cargo box side panel (including the cover) of trailers and two-axle trucks shall not exceed 600mm, and the height of the cargo box side panel (including the cover) of two-axle dump trucks, three-axle and above trucks shall not exceed 800mm. This regulation not only ensures the cargo load, but also avoids potential driving safety hazards caused by excessively high side panels.
The biggest advantage of the stake cargo box is good ventilation, and its own weight is relatively light, with flexible loading, which can effectively reduce the loss of goods during transportation. It is especially suitable for loading goods that need ventilation, such as fresh fruits and vegetables, live poultry, wood, feed, cotton, etc. Among them, the stake-type livestock transport vehicle specially used for transporting livestock will also be equipped with special partitions and protective devices inside the cargo box to ensure the safety of livestock during transportation and reduce extrusion and casualties.
Compared with the flatbed cargo box, the stake cargo box has stronger protection. The fence structure can effectively block the displacement of goods, and the addition of tarpaulin can play the role of windproof and rainproof, taking into account both ventilation and protection. It is an ideal choice for the transportation of special goods such as fresh food and livestock.

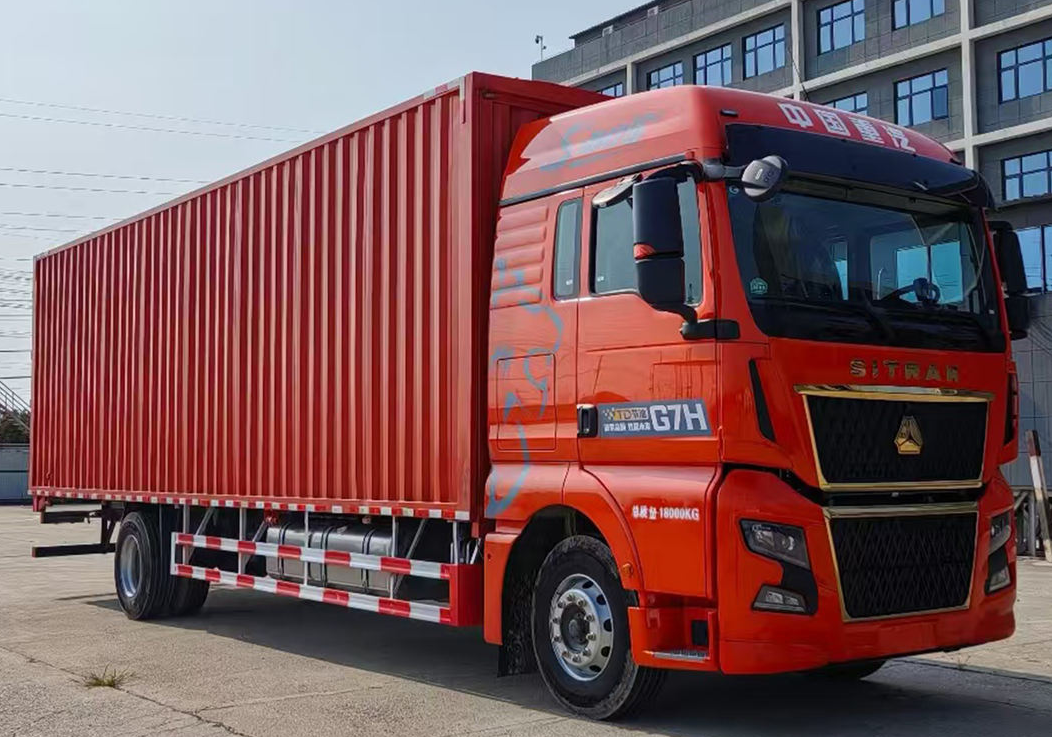

The van cargo box is a fully enclosed cargo box, which can provide all-round protection for goods, effectively avoiding goods from being affected by wind, rain, dust, collision, theft, etc. It is the mainstream choice for current standardized logistics and high-end freight. According to different materials, it is mainly divided into two categories: metal material cargo boxes and non-metal material cargo boxes, each of which has a variety of sub-types, suitable for different high-end freight scenarios.
Metal material cargo boxes are the most common type of van cargo boxes. According to different metal materials, they are divided into ferrous metal material cargo boxes and non-ferrous metal material cargo boxes (including stainless steel). Cargo boxes of different materials have obvious differences in performance and applicable scenarios.
Ferrous metal material cargo boxes are mainly made of carbon steel, which has high strength, wear resistance and strong bearing capacity, suitable for heavy-duty and long-distance transportation. In terms of external structure, they can be divided into corrugated plate cargo boxes and flat plate cargo boxes. The corrugated plate cargo box has strong deformation resistance and is suitable for loading heavy goods; the flat plate cargo box has a flat and beautiful appearance, suitable for loading precision instruments, home appliances and other goods with high requirements on appearance protection. For the convenience of loading and unloading goods, the ferrous metal van cargo box is divided into two structures: rear door opening, and rear door opening plus side door opening. The side door opening is divided into single-side door opening and double-side door opening, and each side has two forms: single door opening and double door opening. Users can flexibly choose according to the size of goods and loading and unloading methods.
Non-ferrous metal material cargo boxes mainly include aluminum alloy cargo boxes and stainless steel cargo boxes. The main advantages of aluminum alloy cargo boxes are light weight and good corrosion resistance, which can effectively reduce the vehicle's own weight, improve fuel economy, and will not corrode goods. They are mainly used in scenarios such as food transportation, refrigerated transportation, and transportation of corrosive items. Stainless steel cargo boxes have stronger corrosion resistance and durability, suitable for transporting seafood, chemical products and other goods with extremely high corrosion resistance requirements, but their cost is relatively high, and their weight is slightly heavier than that of aluminum alloy cargo boxes.
Non-metal material cargo boxes are mainly formed by extrusion and bonding of polyurethane foam and 0.35mm thick color-coated plates, and can also be made of PP honeycomb plates, composite plates, plug-in plates and other materials. Their biggest advantage is light weight, which is much lighter than traditional metal cargo boxes, can effectively reduce vehicle fuel consumption, and has a flat and beautiful appearance and good thermal insulation performance, suitable for light trucks, medium trucks and other models with requirements on self-weight and appearance.
Cargo boxes made of plug-in plates and honeycomb materials are not only light in weight, but also have certain impact resistance, which are often used in transportation scenarios such as light bulk goods and express delivery. Among them, the wingspan van is a common application form of non-metal material cargo boxes. Its upper part is composed of a cargo box part and a lifting part. When opened, the wingspans on both sides can be lifted upward to form an open space, which facilitates mechanical loading and unloading of goods, greatly improves loading and unloading efficiency, and is the preferred model in the express delivery and logistics distribution industry.
The dump cargo box is a type of cargo box specially designed for bulk material transportation. Its core feature is that it can realize automatic unloading without manual or mechanical assistance, which greatly improves unloading efficiency and reduces labor costs. It is mainly used in engineering, mining, building materials and other fields to transport bulk materials such as sand, soil, ore and coal.
The dump cargo box is composed of a cargo box part and a hydraulic lifting system. The hydraulic lifting system is its core component, which drives the cargo box to tilt through the expansion and contraction of the oil cylinder to realize automatic unloading of goods. According to different unloading methods, it is mainly divided into three types: rear dump type, side dump type and middle dump type. Among them, the middle dump type is less used in practical applications due to its complex structure and limited applicable scenarios. At present, the mainstream types are rear dump type and side dump type.

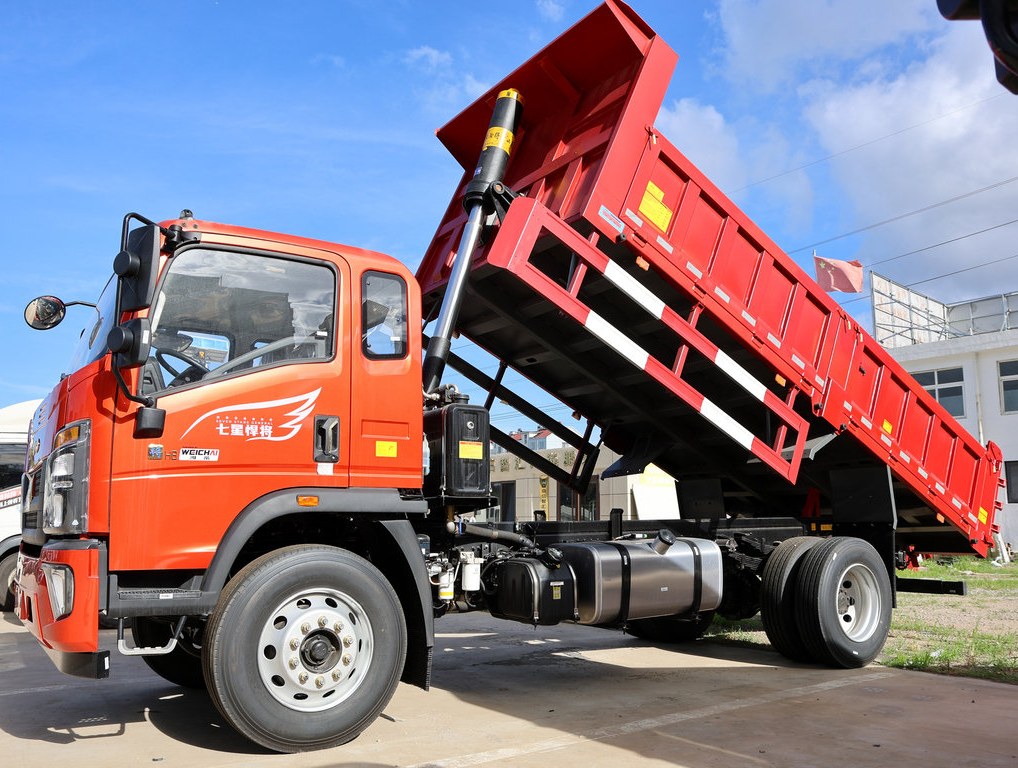

The rear dump cargo box is the most common type of dump cargo box. According to the different arrangement positions of the oil cylinders, it is divided into front-top rear dump and middle-top rear dump. The oil cylinder of the front-top rear dump cargo box is arranged at the front end of the cargo box, using a single-cylinder multi-stage oil cylinder. This structure has the advantages of good stability, strong lifting force, adaptability to heavy-duty scenarios, and convenient maintenance. It is the current mainstream choice for dump trucks, widely used in engineering short-distance transportation, mining transportation and other scenarios.

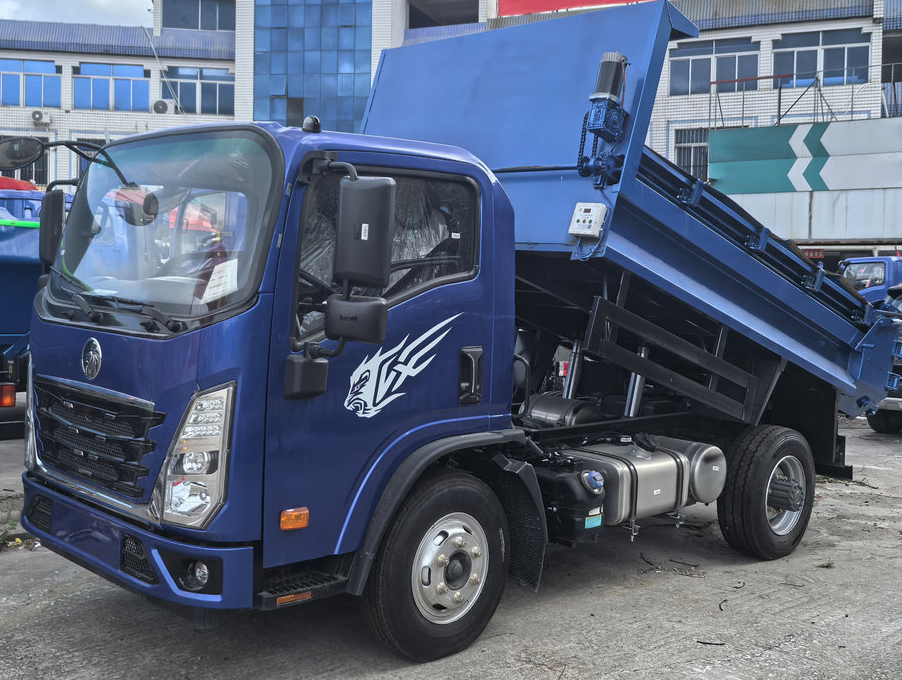

The oil cylinder of the middle-top rear dump cargo box is arranged in the middle of the cargo box. According to the different lifting frames, it is divided into two types: T-type and F-type. Among them, the T-type oil cylinder is fixed, and the F-type oil cylinder is floating. Due to the large curb weight, complex structure, poor lifting stability compared with the front-top type, and high maintenance difficulty, the middle-top cargo box is gradually being eliminated by the front-top structure, and is only used in some old models or special scenarios.
To further improve the convenience of unloading, some rear dump cargo boxes will add a side door structure on the side panel of the carriage. When the goods are piled thick or not easy to unload, the side door can be opened to assist unloading, reducing unloading time.

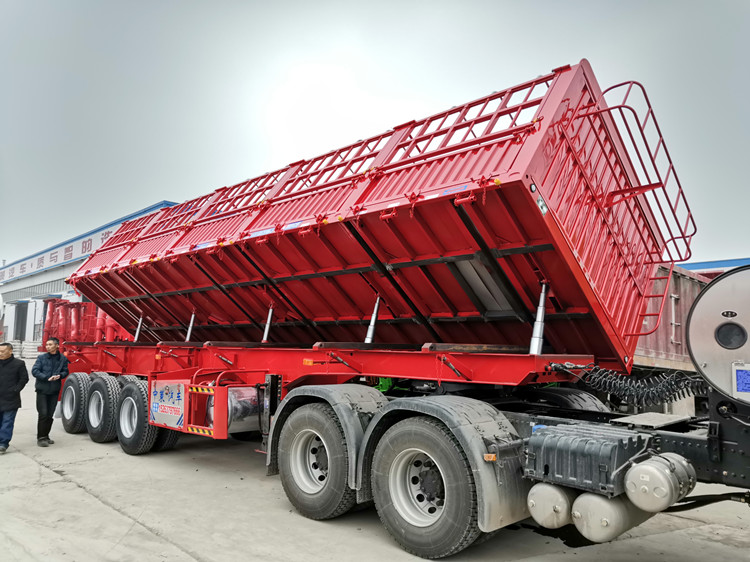

The oil cylinders of the side dump cargo box are arranged longitudinally in the middle of the cargo box. According to the length of the cargo box, 4 to 6 oil cylinders are usually installed. There are doors on both sides of the cargo box, which can realize left and right side dump unloading. This structure has the advantages of fast unloading speed and strong adaptability, especially suitable for long-distance bulk material transportation such as coal and sand, which can quickly complete unloading at the loading and unloading point and improve the efficiency of freight turnover.
The side dump cargo box has high strength, can bear heavy bulk materials, and the side dump unloading method can avoid goods piling up at the unloading point, reducing the workload of manual cleaning. It is an ideal choice for long-distance bulk material transportation.

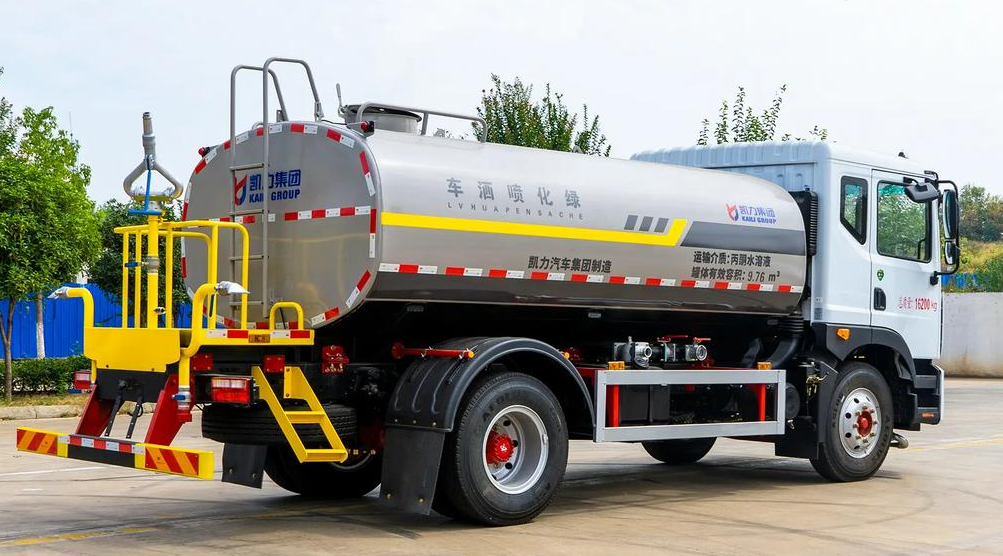

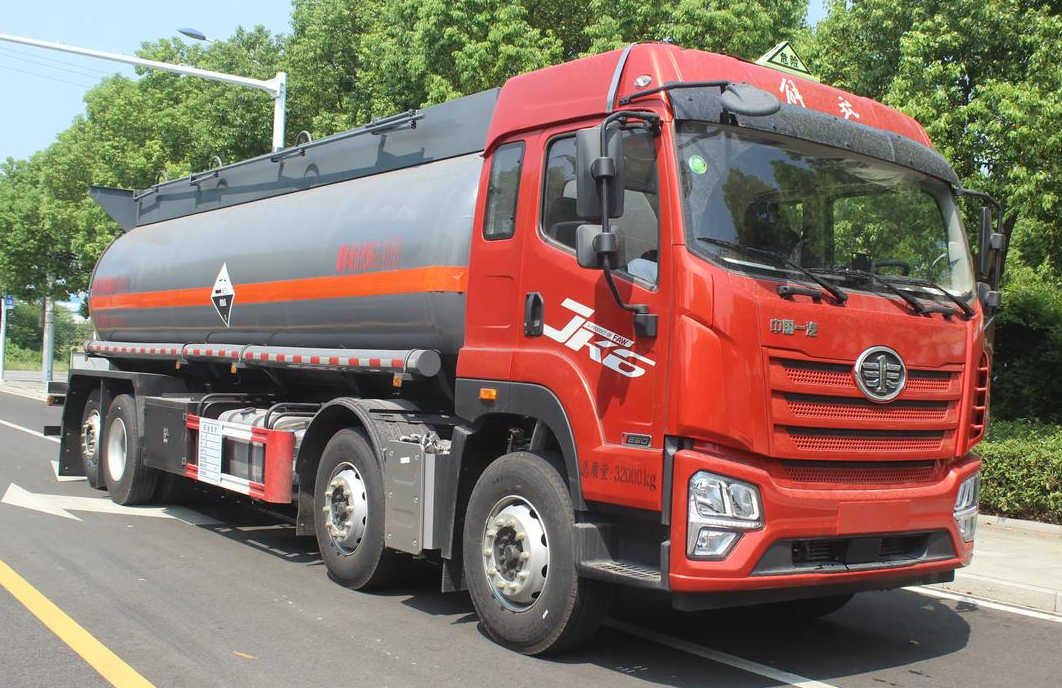

The tank-type upper fitting is a special type of cargo box specially used for transporting liquids, semi-liquids and powdery materials. Its structure is a cylindrical sealed tank, equipped with special valves, pumping systems and protective devices, which can ensure the sealed safety of goods and prevent leakage. It is suitable for the transportation of various fluids, semi-liquids and powdery materials, and is an essential transportation equipment in chemical, building materials, energy and other industries.
The tank-type upper fitting is a special type of cargo box specially used for transporting liquids, semi-liquids and powdery materials. Its structure is a cylindrical sealed tank, equipped with special valves, pumping systems and protective devices, which can ensure the sealed safety of goods and prevent leakage. It is suitable for the transportation of various fluids, semi-liquids and powdery materials, and is an essential transportation equipment in chemical, building materials, energy and other industries.

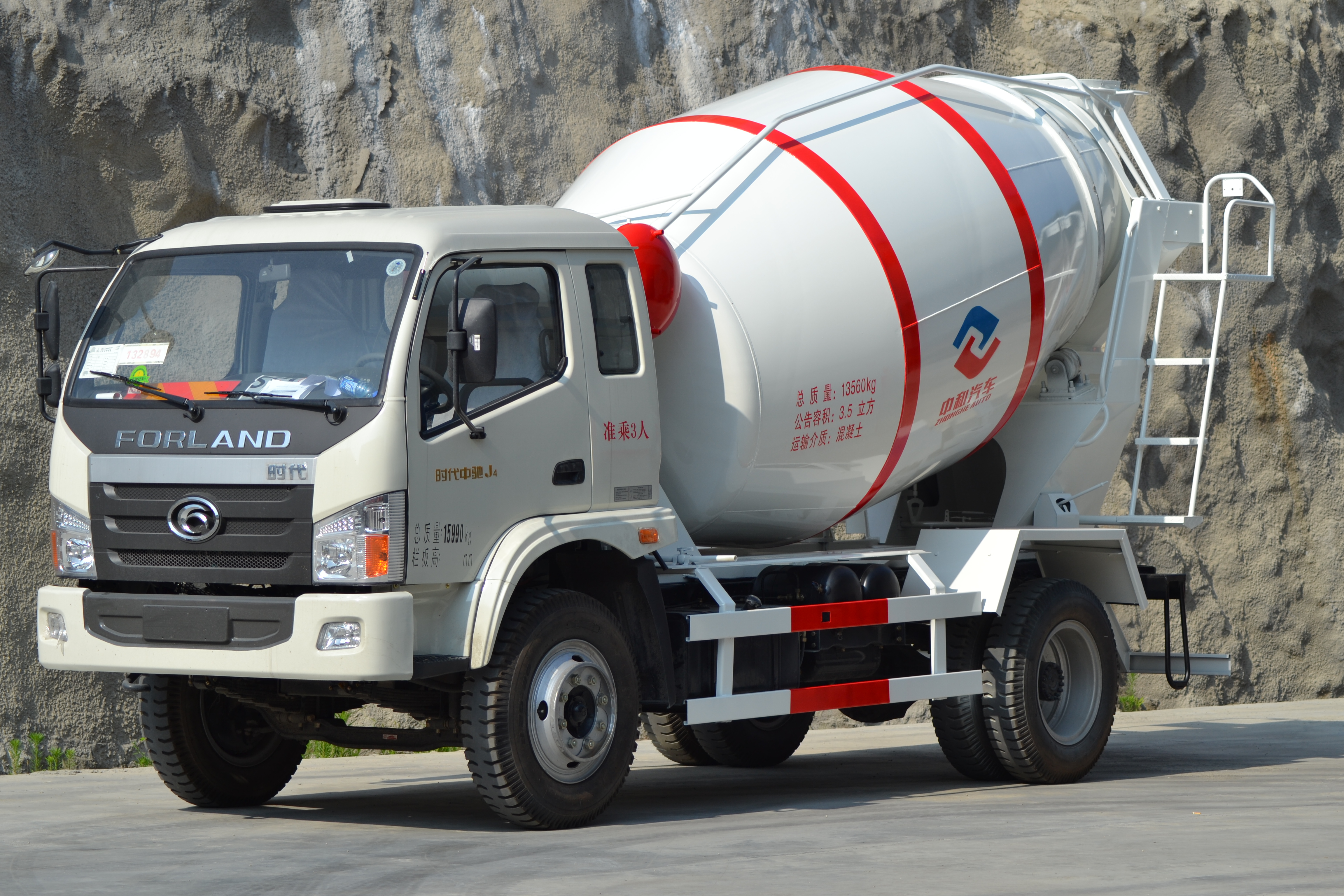

According to the different transported goods, the tank-type upper fittings are mainly divided into three common types: first, the concrete mixer truck, which is mainly used for transporting concrete. The tank can realize rotary mixing to prevent concrete from solidifying, and is widely used in the construction engineering field. Second, the oil tank truck, which is mainly used for transporting oil products such as gasoline, diesel and lubricating oil. The tank has good sealing performance and explosion-proof devices to ensure the safety of oil transportation. Third, the bulk material tank truck, which is mainly used for transporting powdery materials such as grain, cement and fly ash, equipped with a special pumping system, which can realize automatic loading and unloading and improve transportation efficiency.
The manufacturing process of the tank-type upper fitting has high requirements. The tank needs to have good sealing, corrosion resistance and pressure resistance, and also comply with relevant safety regulations to ensure that no leakage, explosion and other potential safety hazards occur during transportation.

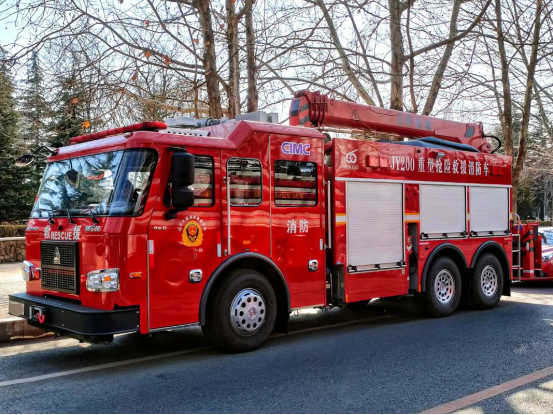

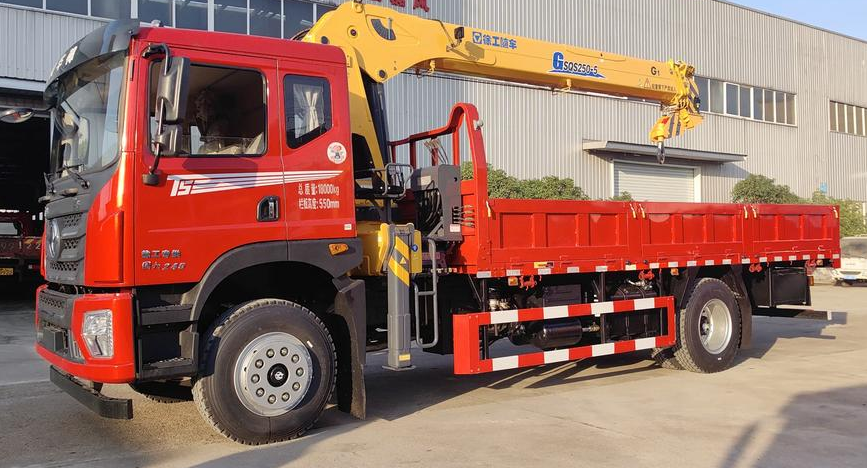

In addition to the above common types of cargo boxes, with the continuous development of the logistics industry and engineering field, a variety of special upper fittings have been derived to adapt to the needs of various special operations. The concrete pump truck is mainly used for the transportation of concrete in construction projects, which can transport concrete to the specified height and position, improving construction efficiency. The fire truck is equipped with special water tanks, water pumps and fire-fighting equipment for fire rescue and emergency rescue. The truck-mounted crane is equipped with a crane on the basis of the cargo box, which can realize the integration of cargo hoisting and transportation, suitable for the transportation and hoisting of small equipment, building materials and other goods. The wrecker is mainly used for road rescue, which can tow faulty vehicles and accident vehicles to ensure road traffic. In addition, there are sprinkler trucks, garbage transport trucks, etc., which are used for road sprinkling and cleaning and garbage transfer respectively, covering diverse scenarios such as municipal administration, environmental sanitation and engineering.
The choice of cargo box material directly affects the strength, self-weight, service life and operating cost of the cargo box. Cargo boxes of different materials have their own advantages and disadvantages in performance. Users need to comprehensively weigh and choose according to their own freight scenarios, cargo types, load requirements and budget, so as to achieve a balance between strength, self-weight and cost.
Material Type | Core Advantages | Main Disadvantages | Applicable Scenarios | Picture |
High-Strength Steel | High strength, wear resistance, strong bearing capacity, mature manufacturing process, relatively low cost, suitable for heavy-duty scenarios, long service life | Large self-weight, relatively high fuel consumption, easy to rust after long-term use, requiring regular maintenance and derusting | Heavy-duty transportation, engineering transportation, dump trucks, transporting heavy goods such as sand, soil and building materials |  |
Aluminum Alloy | Significant lightweight effect, about 30% lighter than steel, good fuel economy, strong corrosion resistance, no frequent derusting and maintenance required, beautiful appearance | High manufacturing cost, slightly lower strength than steel, weak impact resistance, high maintenance cost | Refrigerated transportation, food transportation, dangerous goods transportation, light and medium-load general cargo transportation, scenarios with high requirements on self-weight and corrosion resistance |  |
Composite Board (Polyurethane, PP Honeycomb Board, etc.) | Extremely light self-weight, lighter than aluminum alloy, flat and beautiful appearance, good thermal insulation performance, corrosion resistance, moderate manufacturing cost | Low strength, weak impact resistance, not suitable for heavy-duty transportation, shorter service life than metal materials | Light trucks, van trucks, wingspan trucks, transporting express delivery, light bulk goods, precision instruments and other goods with high requirements on self-weight and appearance |  |
Stainless Steel | Extremely strong corrosion resistance, wear resistance, long service life, clean appearance, suitable for transporting corrosive goods | Large self-weight, high manufacturing cost, high processing difficulty, expensive price | Seafood transportation, chemical product transportation, special goods transportation with extremely high corrosion resistance requirements |  |
In general, high-strength steel is preferred for heavy-duty scenarios, aluminum alloy is preferred for pursuing lightweight and fuel economy, composite board is preferred for light-load and high-end general cargo transportation, and stainless steel is selected for special corrosion resistance needs. Only by accurately matching the material can we ensure transportation safety and maximize the reduction of operating costs.
For many truck drivers and logistics enterprises, choosing a suitable cargo box is the key to improving freight efficiency and reducing costs. How to quickly choose the type of cargo box? First of all, clarify your own freight scenarios, including cargo type, load, transportation distance, road conditions, etc., which is the core basis for selection. Secondly, combined with the requirements of laws and regulations, choose a compliant cargo box height, material and structure to avoid illegal operation. Thirdly, balance cost and performance, do not blindly pursue high-end materials, and choose the most suitable materials and configurations for your own needs. Finally, pay attention to the quality and after-sales service of the cargo box, choose manufacturers with good reputation and reliable quality to ensure the service life and later maintenance guarantee of the cargo box.
In short, the truck cargo box system is the core equipment of the freight industry. The choice of its type, material and structure is directly related to transportation efficiency, cargo safety and operating costs. With the continuous development of the industry, the cargo box system is also constantly iterating and upgrading. Whether it is truck drivers purchasing vehicles and selecting models, or logistics enterprises scheduling capacity, understanding the relevant knowledge of the cargo box system and making the most reasonable choice can help avoid detours and improve efficiency on the freight road.
