As core equipment for logistics transportation and engineering operations, a truck’s electrical system functions as the vehicle’s “nerve center” and “blood circulation system.” It not only provides stable power for the entire vehicle but also supports dozens of key functions including lighting, braking, safety, and intelligent driving. From traditional low-voltage power distribution to today’s intelligent centralized control, truck electrical systems are rapidly developing toward centralization, digitalization, energy efficiency and high reliability, becoming a core carrier for the intelligent upgrading of commercial vehicles.
The truck electrical system, also known as the low-voltage electrical distribution system or low-voltage wiring system, is an integrated network centered on low-voltage power supply components. It forms the foundation for power transmission, equipment control and signal communication in commercial vehicles, and is often deeply integrated with automation and intelligent technologies.Unlike passenger vehicles, trucks feature dedicated designs in voltage ratings, load capacity and ingress protection ratings due to their unique load, operating conditions and application scenarios, while balancing practicality, durability and safety.
Distributed across the engine, chassis, cab and body structure, the system covers all power supply and electrical components—from bulbs and switches to generators and intelligent control units—collectively forming the vehicle’s power network. Simply put, every engine start, steering action and braking signal of a truck relies on the electrical system.
The electrical system supports full-scenario vehicle operation across driving, working, safety, fleet management and comfort. Key functions include:
· Basic functions: Lighting, turn signals, rain/fog warning lamps, ensuring road visibility and communication;
· Powertrain-related functions: Engine starting, ignition, auxiliary braking (engine brake, retarder, ABS/ARS, etc.). The braking torque of eddy current retarders is adjusted by excitation current: higher current produces stronger magnetic field and better braking performance;
· Safety functions: Fault alarms, reverse assist, driver fatigue warning, lane departure warning, forward collision warning, electronic fence, comprehensively reducing driving risks;
· Fleet management functions: Tachograph, Beidou monitoring system, on-board telematics system, enabling real-time tracking of vehicle trajectory and operating status;
· Comfort functions: Interior lighting, air conditioning & heating, audio, power outlets, improving driver rest conditions;
· Intelligent driving functions: ADAS (L2–L4), on-board communication systems, CAN bus control, supporting intelligent and autonomous operation.

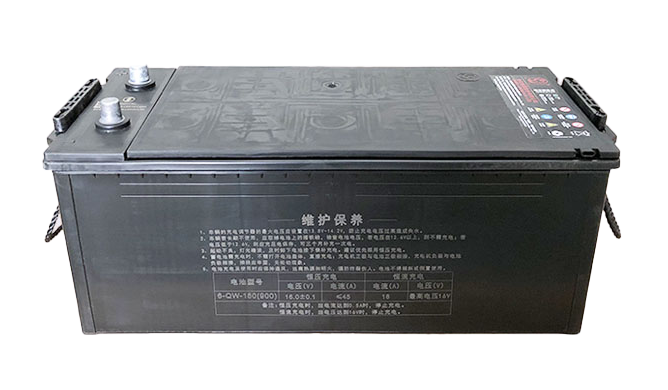

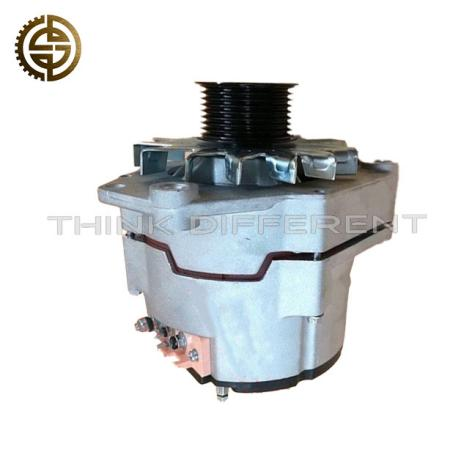

The power supply system is the energy source, consisting of an alternator and battery, acting as the “power generation and storage center.”The alternator supplies power during normal operation. The battery primarily starts the engine, powers the vehicle when the engine is off, and supplements power during peak alternator load.
· Mini / light trucks: typically 12V system with ~100Ah battery
· Medium / heavy-duty trucks: universally 24V system, often using two batteries in seriesModern systems integrate DC-DC converters and power management modules for precise voltage regulation and real-time current monitoring.

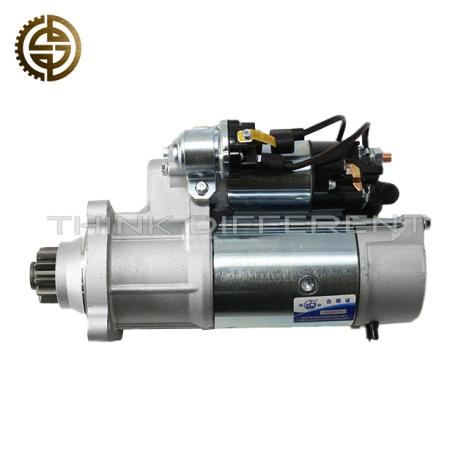

The starting system consists of a starter motor and battery. The starter pinion meshes with the engine flywheel; when activated by the ignition switch, the starter cranks the engine to start. The system disconnects automatically after startup to avoid damage.

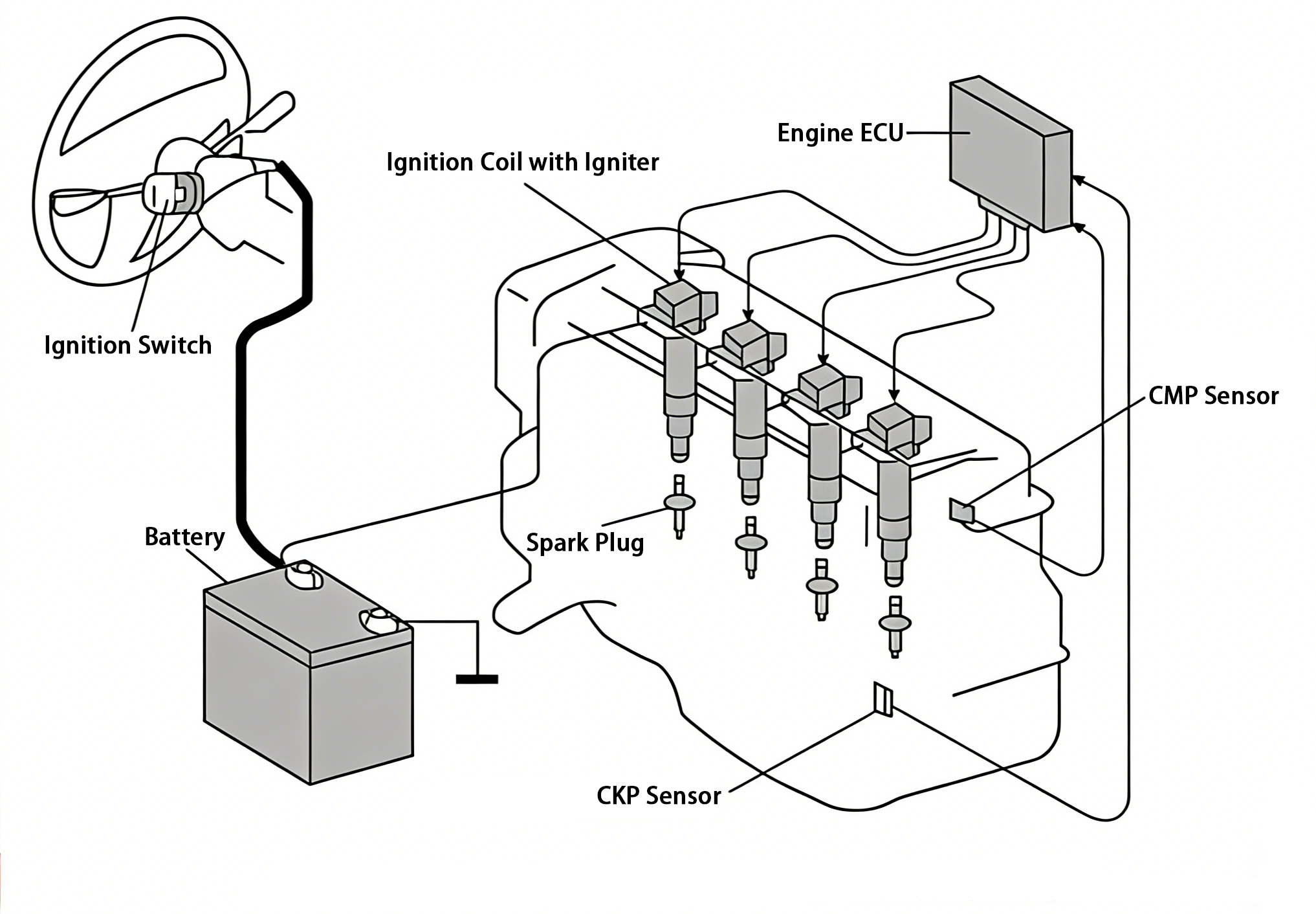

Gasoline, LNG, CNG and methanol engines use a dedicated ignition system, usually distributorless microprocessor-controlled ignition, comprising ECU, ignition coils and spark plugs. High-end engines adopt coil-on-plug (COP) design for improved accuracy and reliability.
The lighting and signal system is divided into front, cab and rear lighting:

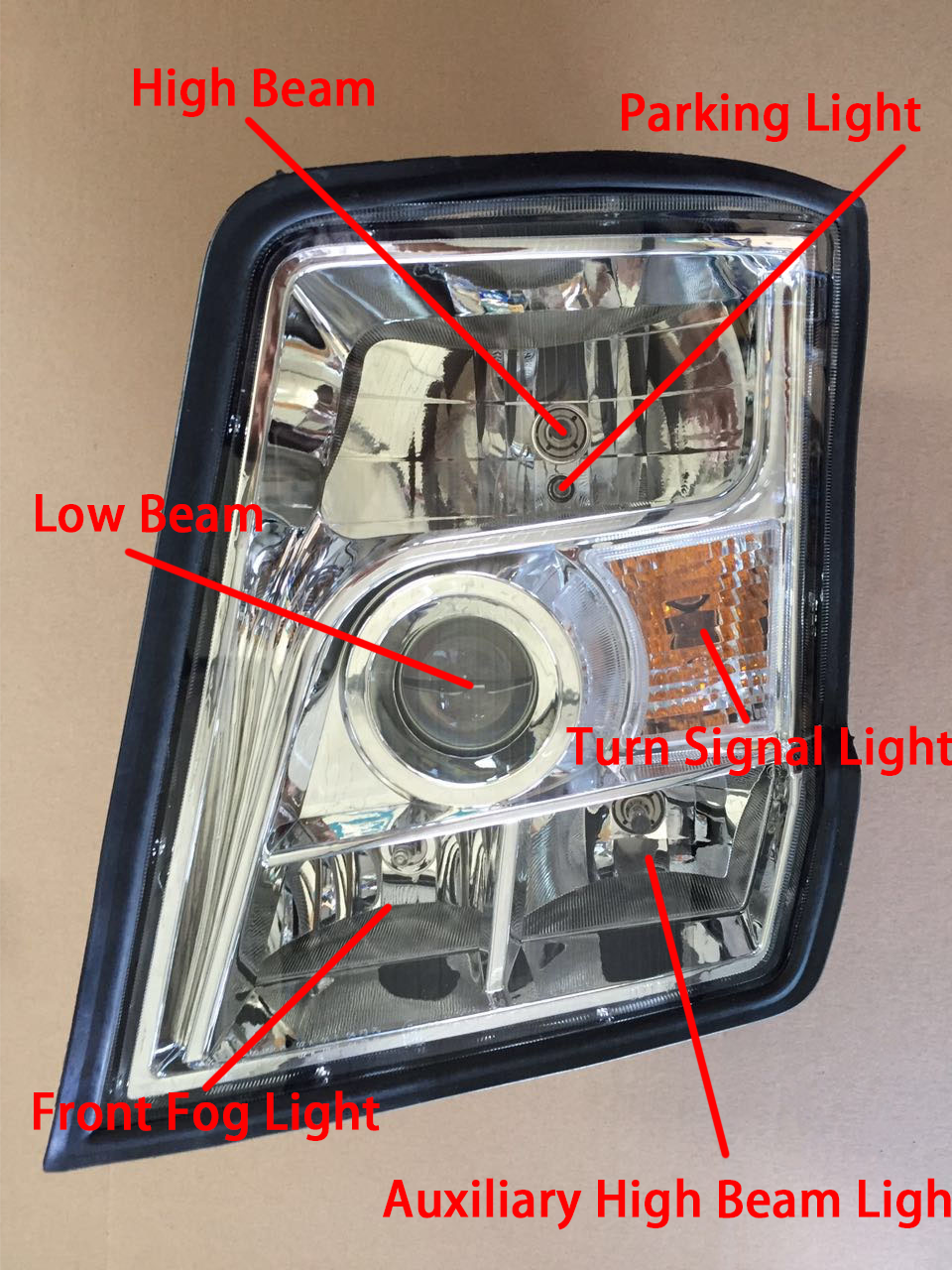

· Front lamps: Headlamps (high/low beam), position lamps, turn signals, front fog lamps

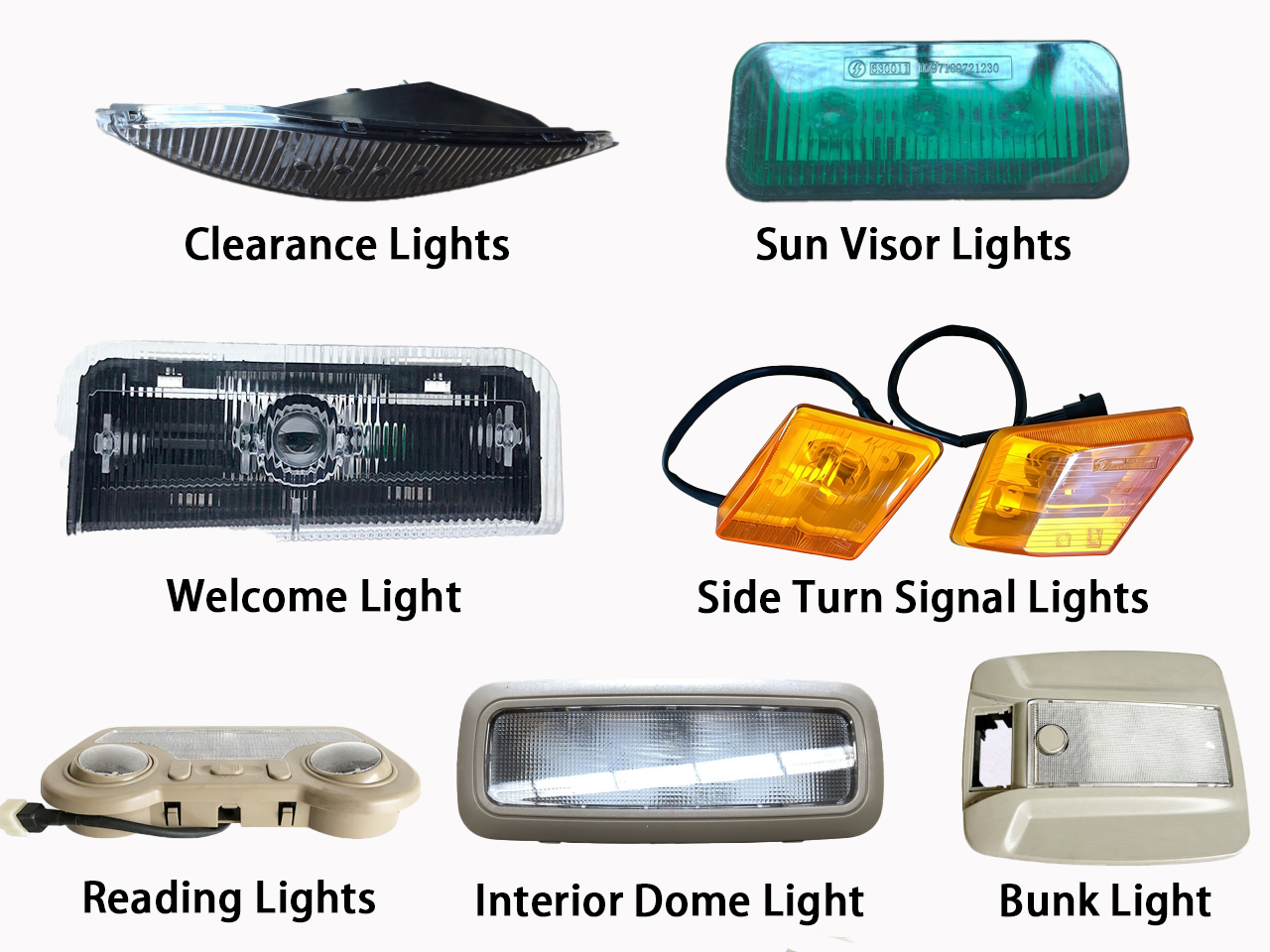

· Cab lamps: Side marker lamps, clearance lamps, interior lamps

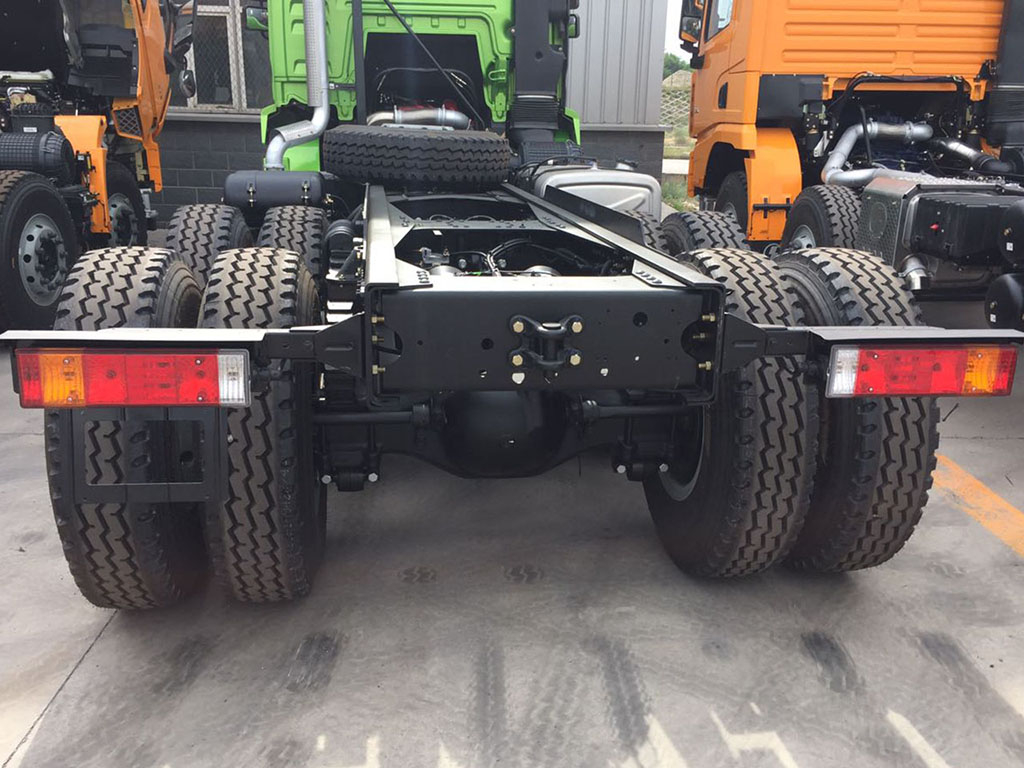

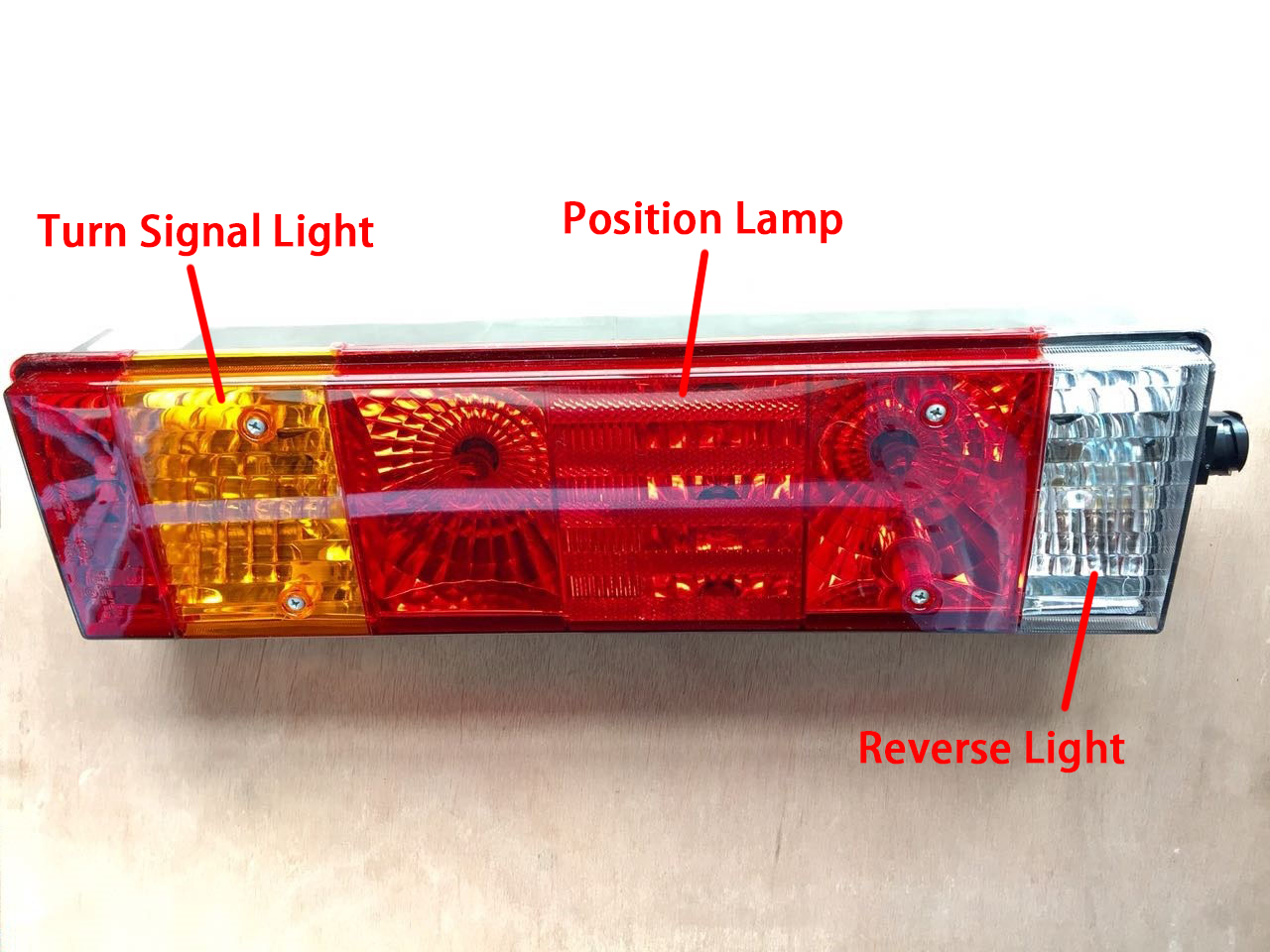

· Rear lamps: Combination lamps (brake, reverse, rear fog), rear marker lamps, side marker lamps; tractors often have additional rear work lamps
This is the power and signal distribution network, composed of:

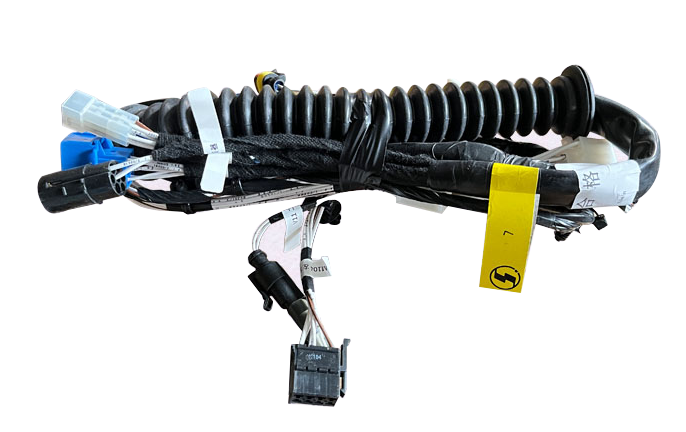

· Wiring harnesses: main harness, chassis harness, door harnesses, routed and protected against water, dust and abrasion
· Fuses & circuit breakers: protect circuits from overload and short circuit

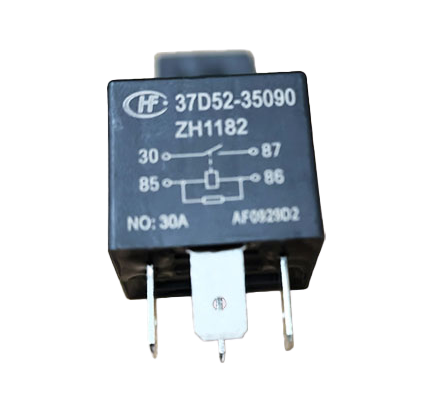

· Relays: control high-power loads indirectly to avoid switch damage

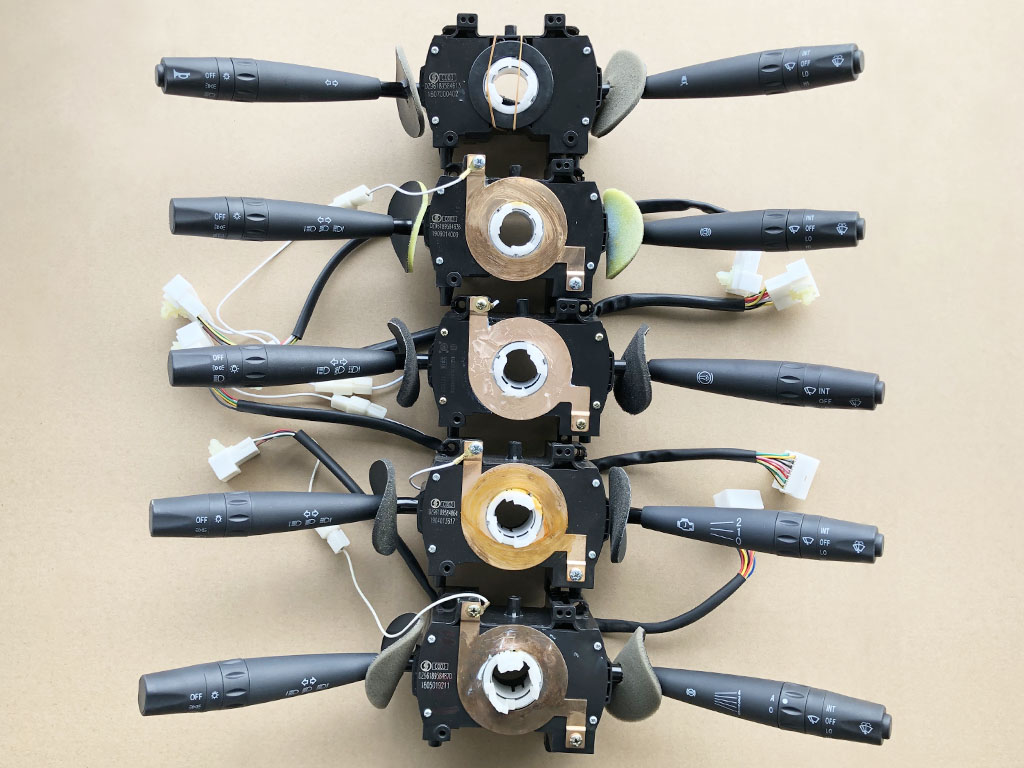

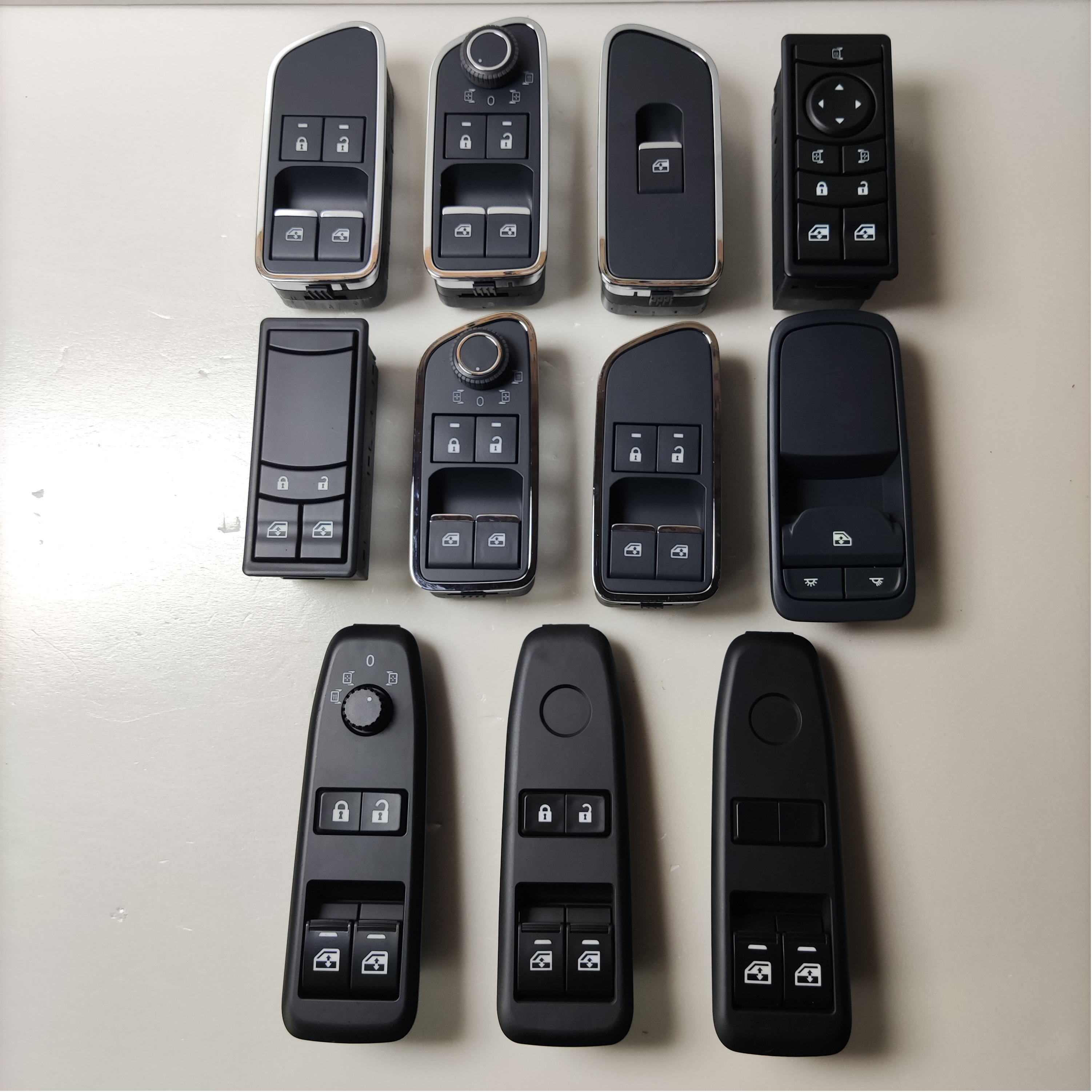

Switches include individual switches and steering column combination switches.

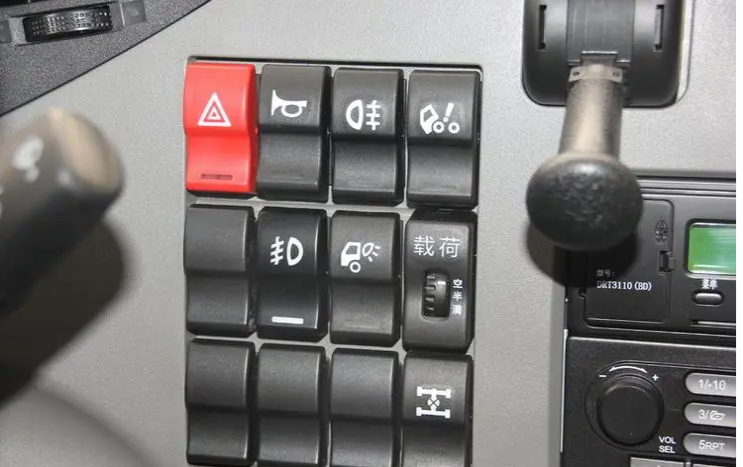

Medium and heavy-duty trucks primarily use rocker switches on the dashboard. The ignition lock often includes a HEAT preheat position for cold-start conditions.
The instrument system displays real-time vehicle status:

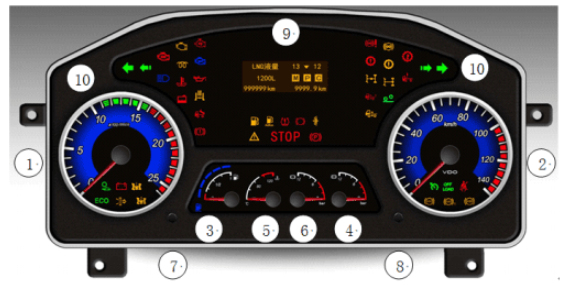

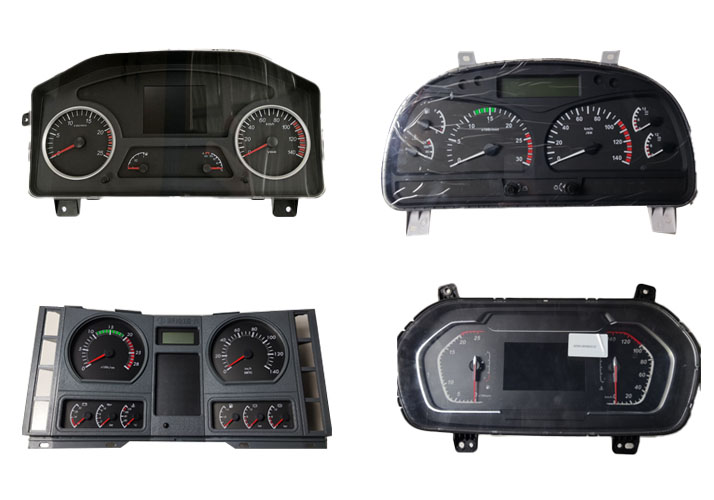

· Combination instrument: shows speed, RPM, fuel level, coolant temperature, air pressure, oil pressure, DEF (urea) level, etc.

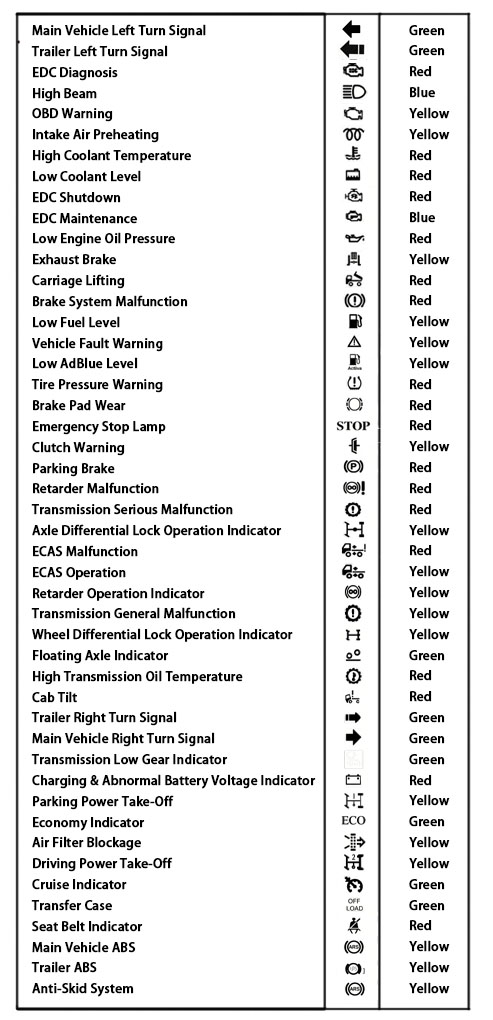

· Warning lamps & indicators: engine fault, ABS fault, low air pressure, high beam, fog lamp, parking brake, seat belt reminder, etc.

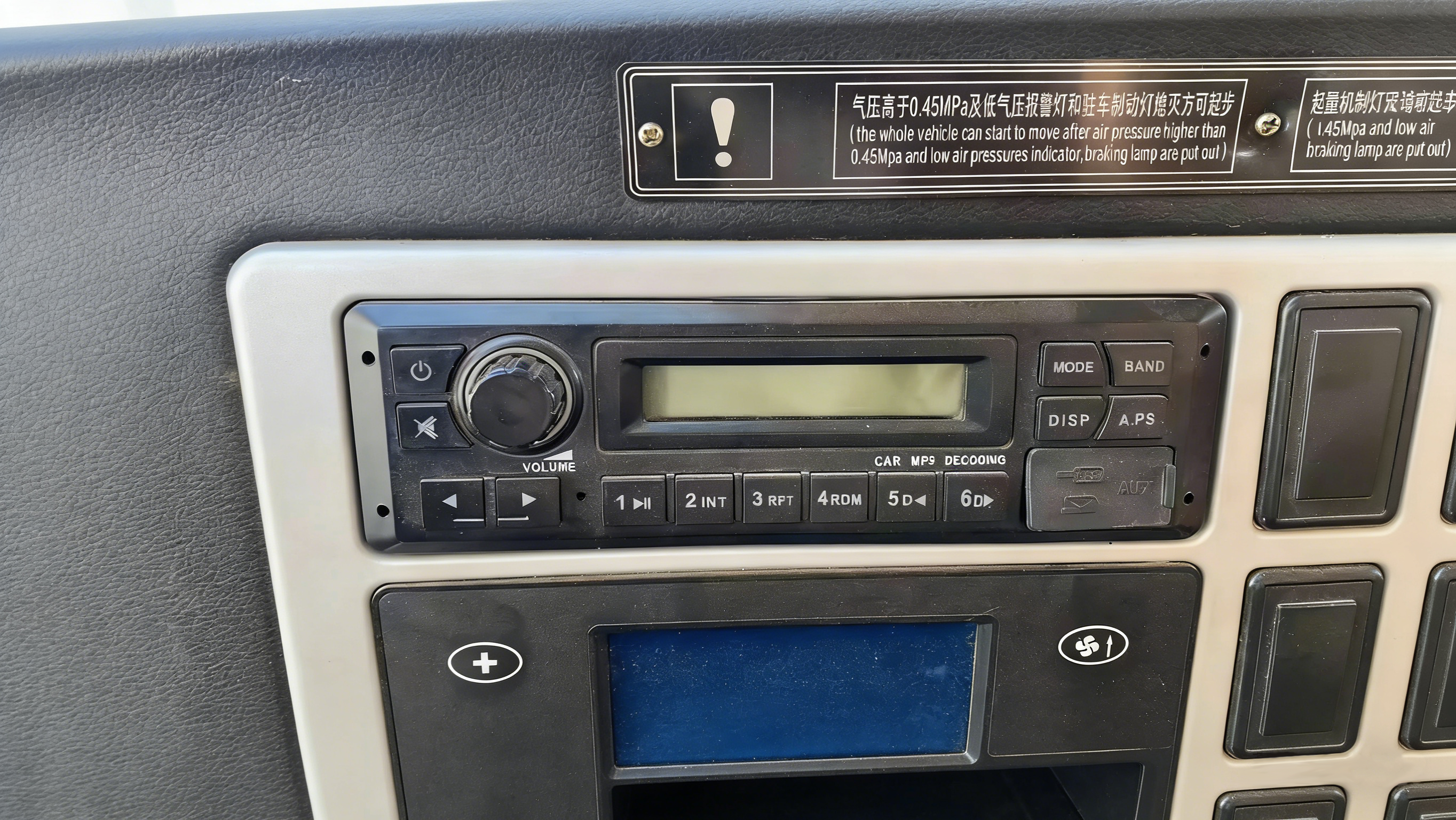

· Auxiliary equipment: wipers, washers, audio, tachograph, USB ports, multimedia systems
· Safety systems: ABS (Anti-lock Braking System), ASR (Acceleration Slip Regulation), reverse radar / camera, fatigue monitoring, electronic fence

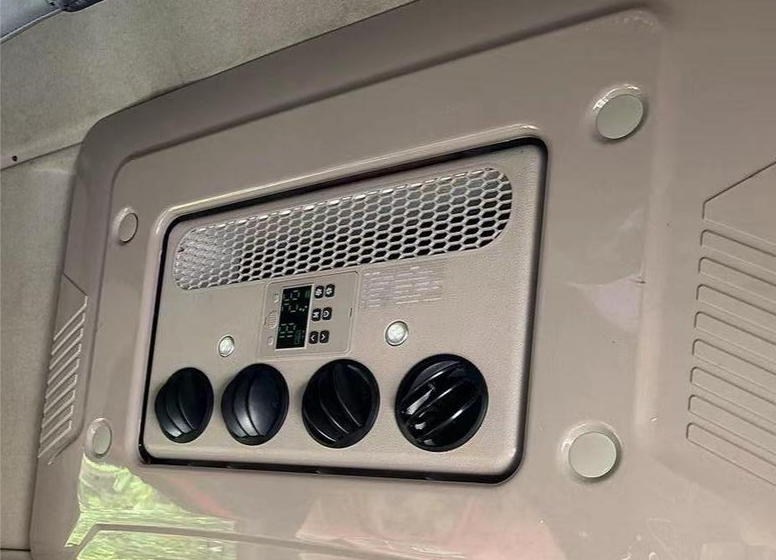

· Comfort systems: cab air conditioning and heating; long-haul trucks often use standalone auxiliary air conditioning that operates independently when the engine is off. Additional features include power windows, electric power steering and navigation.
From basic starting and lighting to supporting intelligent driving, telematics and safety systems, the evolution of the truck electrical system reflects the advancement of commercial vehicle technology.Going forward, integration with 5G, AI and IoT will drive further intelligence, energy efficiency and reliability, enabling precision power management, predictive fault diagnosis and coordinated intelligent control.China’s growing influence in international commercial vehicle electrical standards will further elevate the global competitiveness of Chinese truck technology.
