For truck drivers, the transmission control system is the most direct interface between the driver and the vehicle. Behind every gear shift lies the coordinated operation of a precise mechanism. The development of this system is also a technological evolution of trucks from "purely mechanical" to "intelligently connected".
The transmission control system is a system connected to the gear selection and shift rocker arms of the transmission via a controller with flexible cables or rigid rods. It uses the lever principle to transmit the driver’s shifting actions, control the transmission to change gears, and thus transfer engine power through different gear ratios.
Its core function is to adjust the torque and speed of the drive wheels to adapt to various driving conditions—such as starting, accelerating, climbing, and overcoming road obstacles—so that the drive wheels achieve optimal torque and speed to meet the vehicle’s speed change requirements.The system mainly fulfills two functions:
1. Driving function: realizing the basic mobility of the vehicle.
2. Transport function: maximizing load capacity by increasing drive torque.
Based on transmission types, control systems are divided into manual and automatic. Manual systems still dominate domestic commercial vehicles, but demand for automatic control is growing rapidly and has become dominant in the new-vehicle market.
Based on the power transmission medium, truck transmission control systems have evolved from rigid to flexible, mainly divided into linkage type and cable (flexible shaft) type.
The control mechanism is a key component in the cab, typically consisting of a support, shift arm, and selection rocker arm. Supports are usually aluminum castings, steel castings, or sheet metal parts, providing structural support and connecting the mechanism to the cab floor.The driver operates the gear lever: longitudinal movement for shifting, lateral movement for gear selection. The mechanism uses lever principles: shifting usually uses a single-stage lever, gear selection a two-stage lever.
The mainstream configuration in modern trucks, transmitting shift and selection actions via push-pull cables.

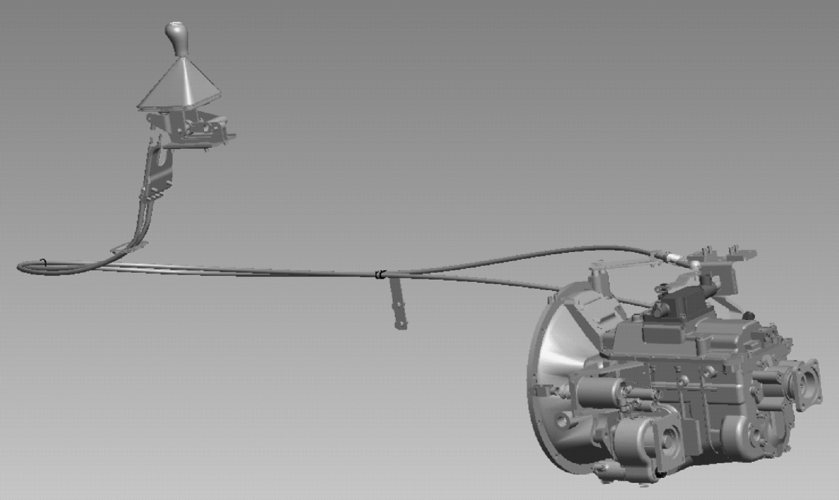

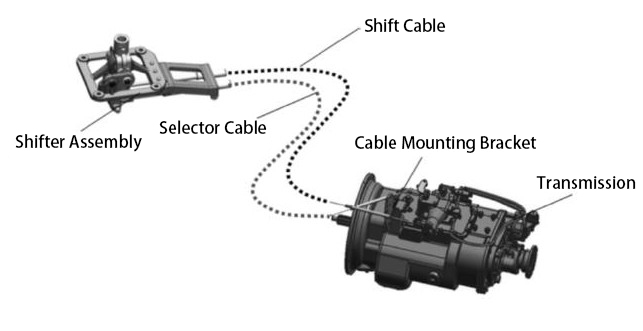

1. Gear selection & shift cables: usually two cables, one for selection, one for shifting. One end connects to the control mechanism, the other to a transfer unit or directly to the transmission.
1. Core: multi-strand steel wire for force transmission.
2. Liner: engineering plastic for guidance.
3. Outer tube: multi-strand steel wire with protective casing.
2. Mounting brackets: secure cables to the transmission’s selection/shift rockers.
3. Cab plastic parts: lever cover, boot, and knob.
Two separate cables control gear selection and shifting.
Easy layout, low cost, flexible routing around engines and exhaust pipes.
Relatively low strength, large free play, small lever ratio; high performance requirements for high torque transmissions.
Used across all truck platforms.
Uses hollow rods as transmission components, usually connected in series with supports and intermediate shafts.Divided into dual-rod and single-rod systems, depending on whether the selection and shift shafts are separate.
Type | Overview | Advantages | Disadvantages |
Dual-rod control | Rigid shifting, multiple rods linked. | Large lever ratio, easy installation/adjustment. | Large space occupation, difficult layout, lower reliability, higher cost. |
Single-rod control | One set of rods controls one rocker arm for both selection and shifting. | Easy vehicle layout, simple structure, high reliability, maintenance-free. | Complex components, high machining precision required. |
In heavy trucks, a main box & auxiliary box structure provides more gears. High-low switching uses a pneumatic shift mechanism, with two control types:
Mechanical-pneumatic: consists of a preselection switch, control valve, and shift cylinder.The driver selects high or low range; when the clutch is depressed, air flows and the cylinder completes the shift.Ensures shifting only when the clutch is disengaged, protecting gears from shock.
Electro-pneumatic: controlled by solenoid valves and controllers.The preselection switch sends an electrical signal; the solenoid valve directs airflow.Advanced systems include speed limiters to prevent downshifting at high speed, avoiding engine over-speed damage.
The transmission changes speed and torque from the engine, with fixed or stepped ratios between input and output shafts. It consists of a transmission mechanism, control mechanism, and sometimes a power take-off (PTO).
Type | Definition | Advantages | Disadvantages |
Direct drive | Power output without reduction, ratio = 1 | No mechanical loss, high efficiency | May not achieve top speed if final drive ratio is unsuitable |
Overdrive | Speed increase, ratio < 1 | Meets top speed, increases rated torque | Lower efficiency, slightly higher fuel consumption |

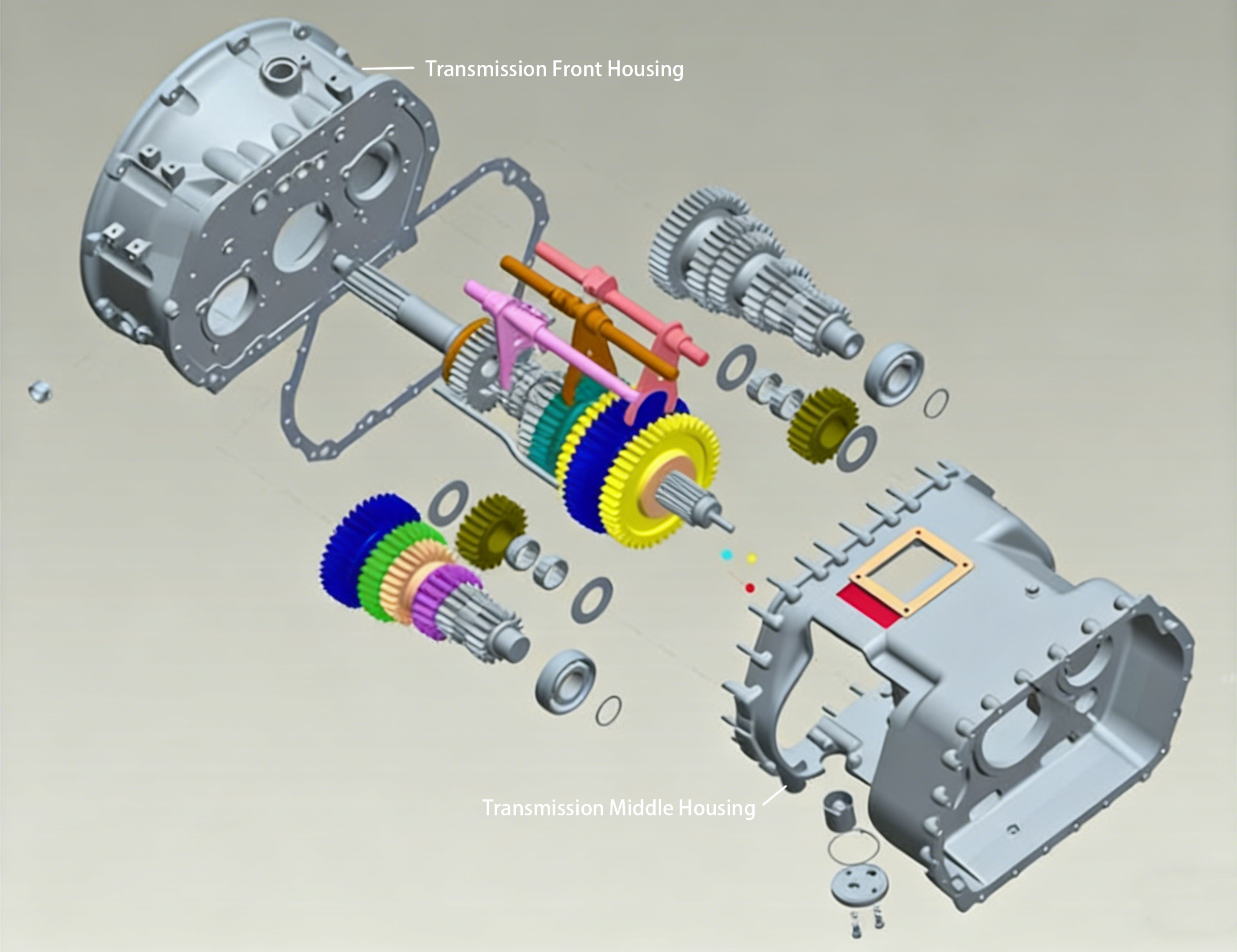

The dominant type in Chinese commercial vehicles, using fixed gear sets for stepped ratio changes.Components: gears, shafts, synchronizers, shift forks, auxiliary boxes, housings.

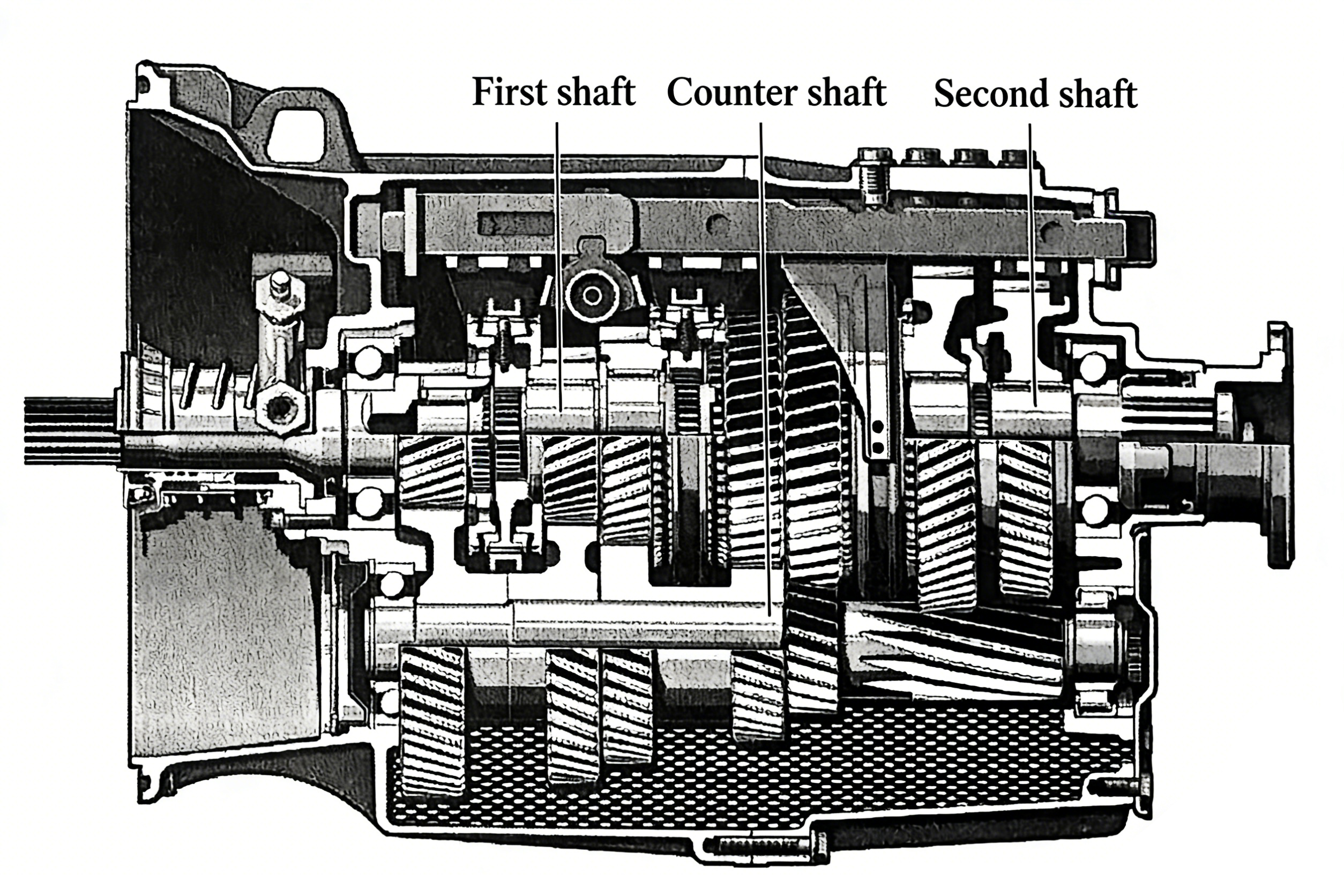

Single countershaft
o Power flows through two gear pairs except in direct drive.
o Pros: high direct-drive efficiency, strong first gear torque.
o Cons: lower efficiency in other gears; high precision requirements.
Dual countershaft
o Two identical countershafts; power splits and recombines.
o Each countershaft carries ~50% torque.
o Main shaft gears float radially.
o Pros: balanced radial forces, simple main shaft, low assembly requirements.
o Cons: slightly lower efficiency.

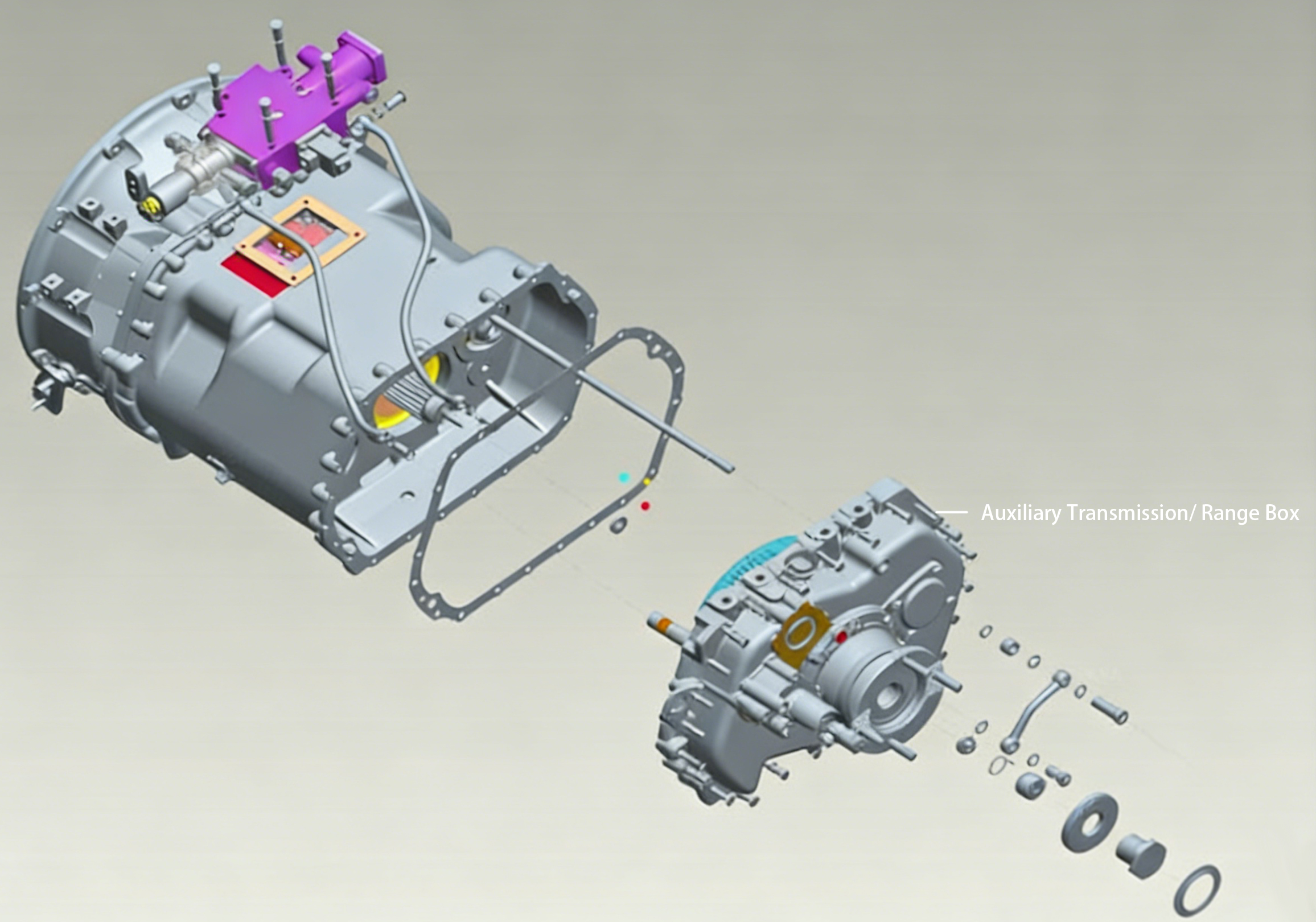

Auxiliary Box
An additional transmission attached to the main box to expand ratio range and reduce main box gears.Functions:
1. Expand ratio range for climbing and speed.
2. Improve parts commonality.
3. Make the transmission more compact.Classification: front-mounted and rear-mounted.
AMT was first conceptualized in the 1960s.ZF experimented with solenoid clutch control in 1965; Renault built the first electronic prototype in 1973.Mass production began in 1985 with Rockwell-ZF’s Freedom Line, eliminating the clutch pedal.Today, AMT penetration exceeds 90% in Europe and 85% in the US for heavy commercial vehicles.
China started AMT research in 1983 (Jilin University & FAW). Early domestic systems suffered from poor shift logic and low reliability.The turning point was 2008: Sinotruk Howo A7 achieved domestic mass production; FAW Jiefang launched proprietary AMT.Local manufacturers like Fast greatly reduced costs (to ~60% of imports).2019 is known as China’s CV AMT Year, with sales exceeding 8,000 units.Current heavy-truck AMT penetration: 40%, projected to reach 70% by 2029.

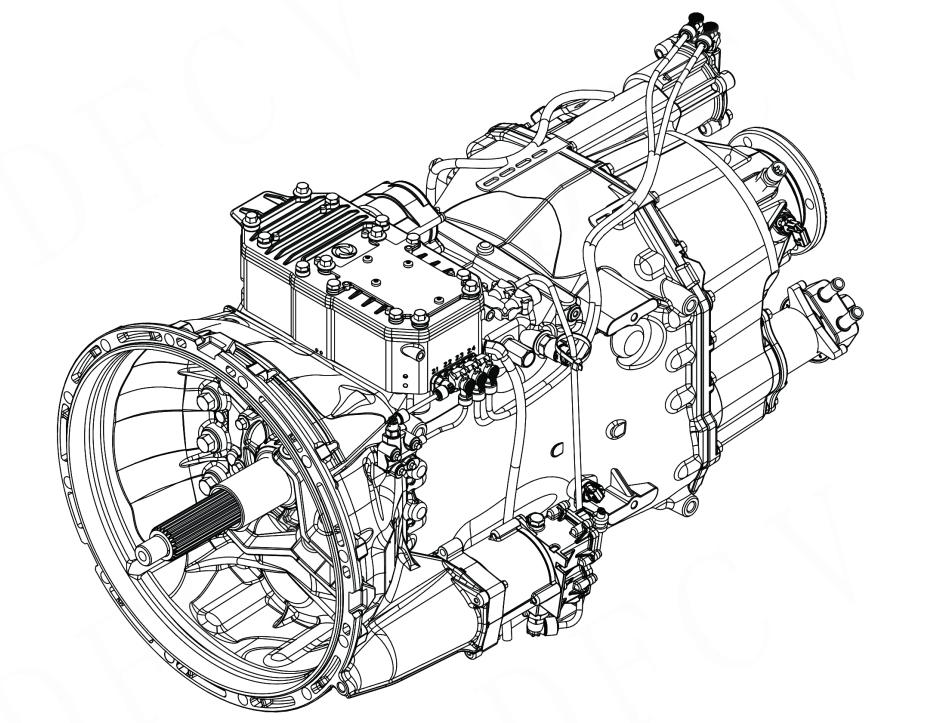

Based on MT, with automatic control added:
1. Mechanical unit (same as MT): dual countershaft, helical gears, synchronizers.
2. Electronic control system (core):
o TCU: the “brain”, collecting speed, RPM, throttle, gradient, load signals to calculate optimal shift points.

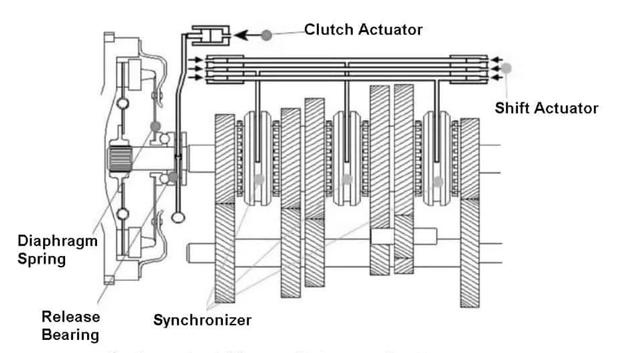

o Clutch actuator: pneumatic/electric, automates clutch engagement/disengagement.
o Shift actuator: selection motor + shift cylinder, completes gear selection and engagement.
o Sensors: speed, position, pressure, providing real time feedback.
· Smoother shifting, improved comfort.
· Effortless operation, relieving the driver’s left foot and right hand.
· Lower fuel consumption via precise electronic control.
· Longer transmission life, reduced failure rates.

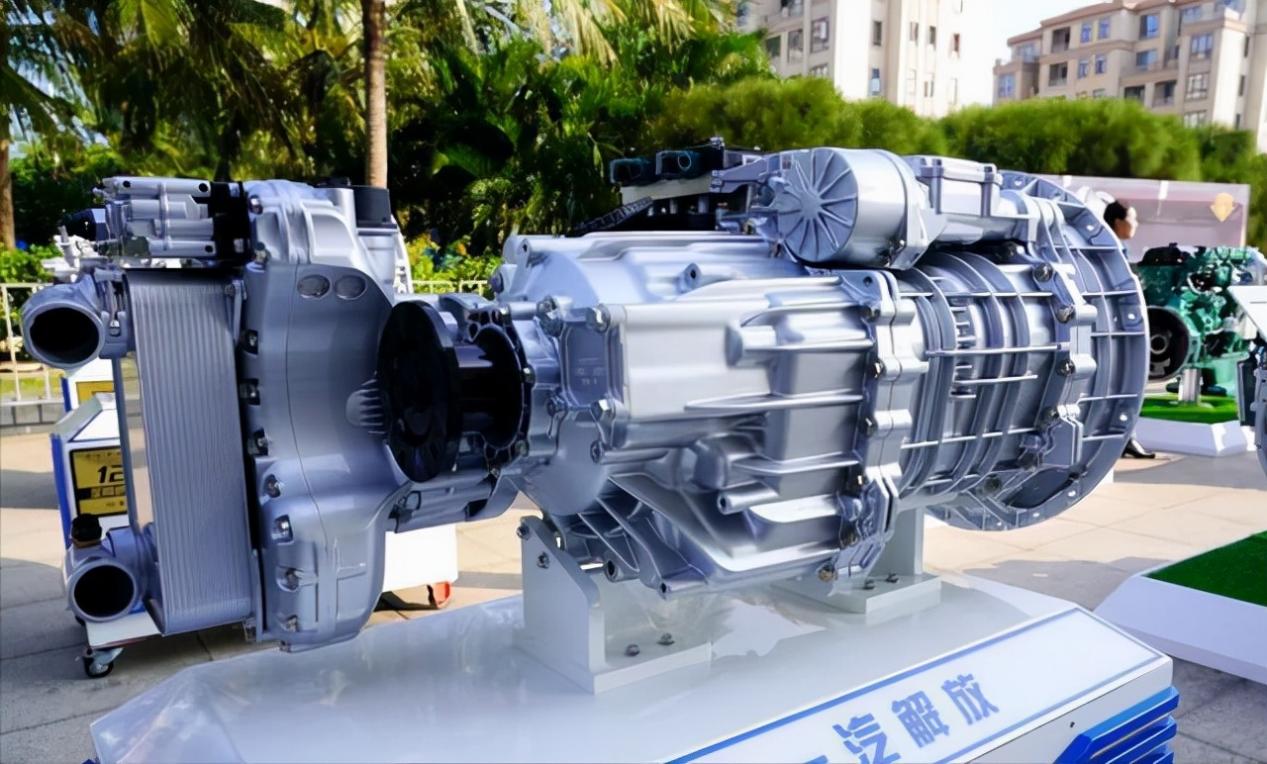

AMT is standard on Auman EST, Jiefang J7, Dongfeng Tianlong Flagship, Shacman X6000, Sinotruk Sitrak, etc.The global mainstream heavy-truck configuration:Dual countershaft main box + planetary auxiliary box + synchronizer + electro-pneumatic AMT control.

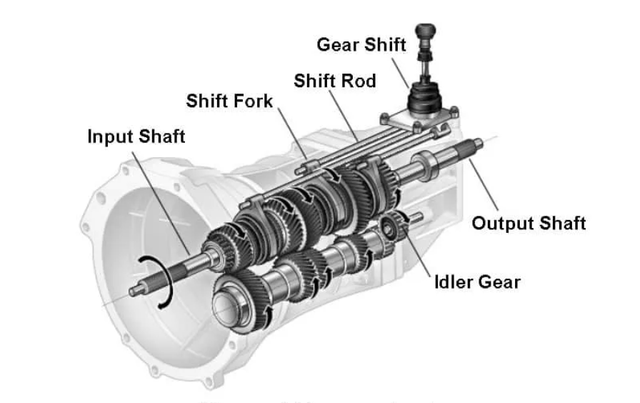

· Input shaft: connects to clutch, receives engine power.
· Main shaft: carries shift gears, outputs power to auxiliary box.
· Dual countershafts: symmetrically arranged, radial forces balanced, doubling load capacity (supports 3000N·m+).
· Gear sets: constant-mesh and shift gears; mostly helical ground gears for low noise and high strength.
· Synchronizer: enables smooth, non-grinding shifting; heavy-duty inertial or double-cone types.
· Manual shift mechanism: forks, shafts, levers.
· Usually planetary gear set (sun gear, planet gears, carrier, ring gear).
· Provides high (H) / low (L) range, doubling gear count.
· Low range: high torque for heavy loads and climbing.
· High range: higher speed, lower fuel consumption.
· Controlled electro-pneumatically in AMT.
· Housing: three-section aluminum alloy for light weight and cooling; cast iron for heavy duty.
· Lubrication: combined pressure and splash lubrication.
· PTO: front or rear, for dump trucks, mixers, fire trucks.
· Retarder interface: optional hydraulic retarder for long downhill safety.

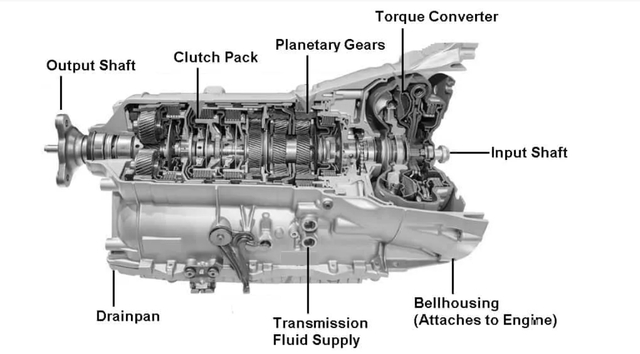

AT automatically changes ratios during driving, using a torque converter, planetary gears, and hydraulic control.The torque converter (pump, turbine, stator) transmits torque and acts as a clutch.
Common positions:
· P: Park – mechanically locks the drivetrain (only when stopped).
· R: Reverse.
· N: Neutral – disconnects engine and transmission.
· D: Drive – automatic shifting based on speed and load.
AT is widely used in light buses and special vehicles but rare in heavy trucks, mainly because:
1. Torque: Torque converter wastes energy as heat; AMT uses rigid, high efficiency connection.
2. Fuel consumption: AMT is ~5% more economical than AT.
3. Cost: Heavy-duty AT costs several times more than AMT, with greater weight and complexity.
From rigid mechanical linkages to flexible push pull cables, to computer controlled AMT—the evolution of truck transmission control systems reflects the industry’s relentless pursuit of efficiency, comfort, and safety.
For older truckers, shifting required strenuous “double-clutch” operation. Today’s drivers enjoy effortless automatic shifting on highways. Tomorrow’s trucks may be fully controlled by computers for every power output.Yet regardless of technological advances, the system’s original purpose remains unchanged:to faithfully convey the driver’s intent to the machine, and deliver heavy loads safely and smoothly to their destination.
